Logic execution
The selected CPU executes the configured application rather than acting as a passive rack board.
WOODWARDINDUSTRIAL TURBINE CONTROL · 5466-1250
MICRONET · CPU HARDWARE · PROGRAMMING ACCESS

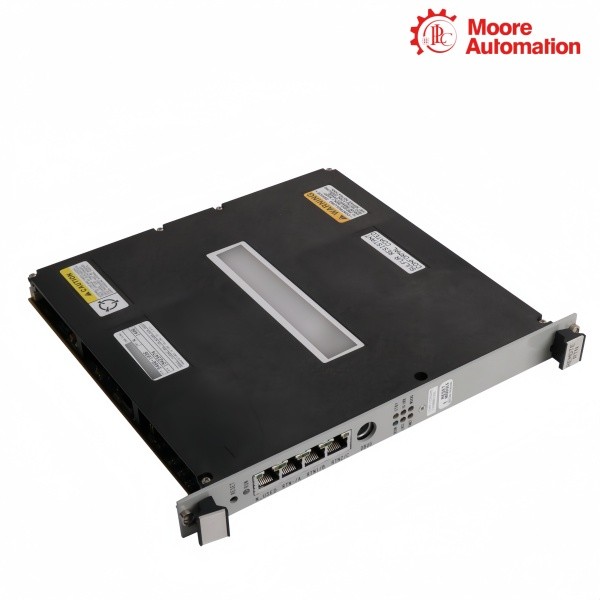

Woodward 5466-1250 / 5466-1347 MicroNet CPU Modules
GAP APPLICATION · PROCESSOR ROLE · RACK COMMUNICATION
01 // C CONTENT
Model Overview
Woodward 5466-1250 and Woodward 5466-1347 are MicroNet CPU hardware variants used to run the configured control application. Each CPU forms the processing link between the loaded application, the MicroNet rack and the connected I/O modules.
When configured, Woodward 5466-1250 and Woodward 5466-1347 exchange I/O and status data with the rack, execute the assigned logic and expose the processor state to the service or programming interface. The GAP application and processor configuration operate through that CPU-to-rack path.
The installed rack path for Woodward 5466-1250 and Woodward 5466-1347 carries application data between the CPU position, the VME motherboard and the connected MicroNet I/O and communication modules.
02 // ENGINEERING DATA
Technical Specifications
| Technical Item | Specification |
|---|---|
| Brand | Woodward |
| Product type | MicroNet CPU module |
| Model group | 5466-1250 / 5466-1347 |
| System | MicroNet control system |
| MicroNet chassis interface | VME motherboard connection in the assigned MicroNet rack |
| Field wiring boundary | Analog/discrete I/O cables connect the module faceplate to an FTM |
| Power architecture | MicroNet Plus uses designated PS1 and PS2 power-supply positions |
| Environmental wiring limit | Use field wiring rated for at least 80 °C where expected ambient exceeds 55 °C |
| Processor | Motorola MPC5200 PowerPC |
| Memory | 128 MB DDR RAM; 64 MB flash memory |
| Communication ports | 1 general-use Ethernet, 1 serial, 1 service and 1 CAN port |
| RTN expansion | RTN ports unavailable; expansion-chassis operation not supported |
| VME interface | FPGA provides VMEbus master/slave capability |
| Operating temperature | -40 to +85 °C |
| Operating modes | Simplex or redundant CPU operation |
| Simplex CPU position | First I/O slot of the MicroNet chassis |
| Redundant CPU position | CPU2 location: slot 8 or slot 14, chassis dependent |
| RTC resolution | 10 ms |
| ENET1 factory address | 172.16.100.1; subnet mask 255.255.0.0 |
| Configuration switch | S2; CPU main-chassis address 0x000 |
| Service software | AppManager loads GAP, monitors diagnostics and configures network settings |
| Watchdog timing | 1 ms failover event; 18 ms timeout event |
| CAN network boundary | 120 Ω terminations at each trunk end; drop cables less than 6 m |
| CAN trunk boundary | Recommended network under 100 m with cumulative drop length under 39 m |
03 // APPLICATION CONTROL
GAP Application Access
Woodward 5466-1250 and Woodward 5466-1347 combine processor hardware with the MicroNet application path used by the control system.
Status handling
Processor state and application status are exchanged with the rack and service path for commissioning checks.
Control output
The application result is returned to the configured control modules through the MicroNet data path.
04 // PROGRAMMING AND RACK
CPU Rack Connection
The connection path for Woodward 5466-1250 and Woodward 5466-1347 includes the GAP programming interface, the rack backplane and the configured I/O map.
GAP connection
Use the assigned programming or service interface for the application image and configuration, not a field terminal.
Backplane link
The CPU exchanges channel data and status with the MicroNet rack through its backplane position.
Configuration map
The software map must identify the installed CPU and the slot that carries its rack data.
05 // FIELD QUESTIONS
Common Questions
Which interface is used to configure Woodward 5466-1250 / 5466-1347?
Use the assigned GAP programming or service path for the installed processor. The field terminals belong to the I/O modules; they are not a substitute for the CPU programming connection.
Why does Woodward 5466-1250 / 5466-1347 accept an image but not run the application?
Check processor identity, application compatibility and rack slot assignment after the transfer. A successful transfer does not prove that the installed CPU is mapped to the active control position.
Can the rack map for Woodward 5466-1250 / 5466-1347 be copied from another CPU?
Copy only the parts explicitly shared by the project configuration, then verify the complete processor identity and slot. Do not assume that a similar MicroNet CPU uses the same application or security record.
What should be checked when Woodward 5466-1250 / 5466-1347 loses the rack data link?
Inspect the backplane position and processor state before changing the GAP image. The fault must be separated into rack connection, CPU initialization or application mapping.
How is a replacement Woodward 5466-1250 / 5466-1347 commissioned?
Record the original slot, application image and communication map, then load the matching configuration and confirm rack data. This keeps the processor role tied to the installed control architecture.
What does a processor alarm on Woodward 5466-1250 / 5466-1347 not prove?
It does not by itself prove that a field transmitter or output device has failed. Read the CPU status and rack data path first, then trace the affected channel.
