Eaton / MTL4000 Backplane Isolators

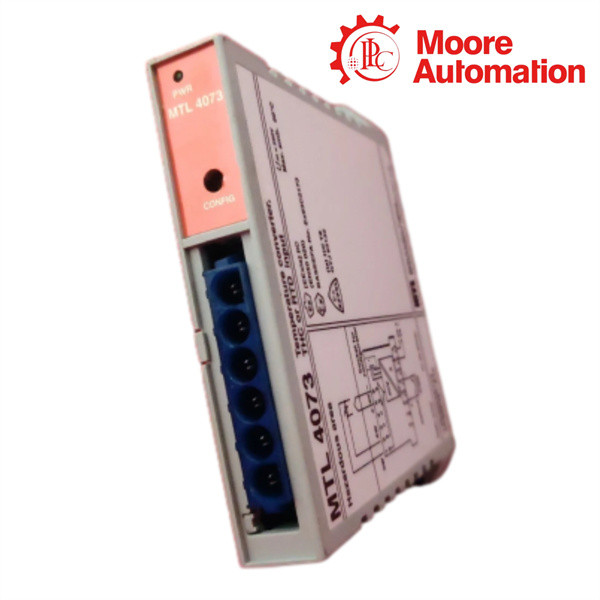

Eaton MTL4073 Temperature Converter
Single-channel configurable thermocouple and RTD temperature converter with 4-20 mA output.
Product Overview
Backplane-mounted temperature conversion for thermocouple and RTD inputs
Eaton MTL4073 accepts thermocouple or RTD inputs. The official electrical ranges are -75 to +75 mV for thermocouple/millivolt operation and 0-400 ohms for resistance input, with a 4-20 mA output.
The module is discontinued. Eaton identifies MTL4573 as the official replacement.
Official Eaton MTL4073 temperature converter connection diagram.
Product Functions
Configurable thermocouple and RTD measurement
Thermocouple input
The input accepts -75 to +75 mV for thermocouple and mV measurement.
RTD measurement
Resistance inputs cover 0-400 ohms with 2-, 3- or 4-wire connection.
4-20 mA output
The converted temperature value is retransmitted as a standard current signal.
Configurable setup
Eaton documentation identifies configuration through the PCS45/PCL45 tools.
Product Specifications
Official identification and technical data
| Brand | Eaton |
|---|---|
| Model | MTL4073 |
| Channels | 1 |
| Input types | Thermocouple or RTD |
| Millivolt range | -75 to +75 mV |
| Resistance range | 0-400 ohms |
| RTD connection | 2-, 3- or 4-wire |
| Output | 4-20 mA |
| Maximum load | 600 ohms |
| Power supply | 20-35 Vdc |
| Current consumption | 57 mA at 24 V; 55 mA at 20 V; 60 mA at 35 V |
| Power consumption | 1.2 W at 24 V |
| Isolation | 250 Vac |
Replacement Information
Official migration to MTL4573
Discontinued model
MTL4073 is listed in Eaton discontinued product support.
Named replacement
The official cross-reference identifies MTL4573.
FAQ
Eaton MTL4073 technical questions
Which sensors can MTL4073 accept?
It accepts thermocouple and RTD inputs.
What are the official input ranges?
-75 to +75 mV or 0-400 ohms, depending on configuration.
What output does it provide?
A 4-20 mA output with up to 600 ohms load.
Is MTL4073 discontinued?
Yes. Eaton lists it as discontinued.
What is the replacement for MTL4073?
Eaton identifies MTL4573.
