Processor and Memory
MVME2307 combines the 300 MHz MPC604 PowerPC with 64MB ECC DRAM for VME application execution.

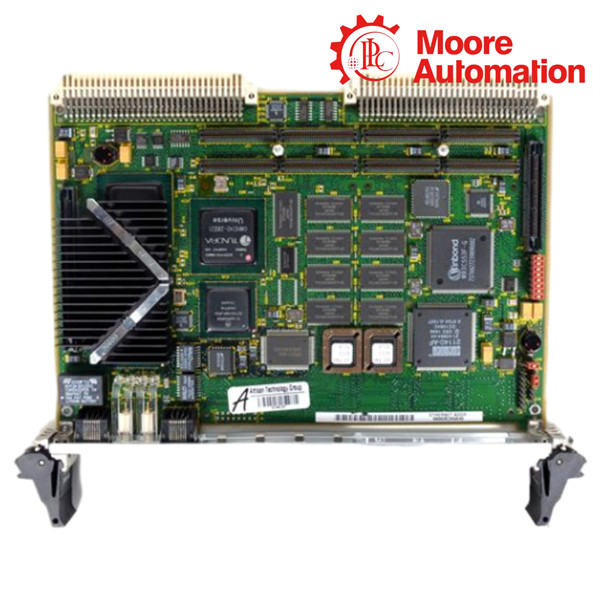

Motorola MVME2307 VME Processor Module
Motorola MVME2307 VME Processor Module with 300 MHz MPC604 PowerPC, 64MB ECC DRAM and documented VME, expansion and rear-I/O resources.
PLATFORMMVME2300
PROCESSORMPC604
MEMORY64MB ECC DRAM
BUSVMEbus
01
Product Overview
Motorola MVME2307 is a vme processor module built around the MPC604 PowerPC and 64MB ECC DRAM. Its documented architecture connects processor and memory resources to PCI expansion and the VMEbus.
The exact MVME2307 ordering code identifies its processor, memory and hardware configuration.
02
Technical Data
| Product type | VME Processor Module |
|---|---|
| Processor | MPC604 PowerPC |
| Clock frequency | 300 MHz |
| Main memory | 64MB ECC DRAM |
Detailed Specifications
| PCI local bus | 33 MHz PCI architecture |
|---|---|
| PMC expansion | Two IEEE P1386.1-compatible 32/64-bit PMC positions |
| VME interface | Universe PCI-to-VME bridge |
| Ethernet | 10Base-T / 100Base-TX |
| Service interface | Asynchronous serial debug port |
| NVRAM / RTC | 8KB NVRAM with real-time clock and battery backup |
03
Operating Functions
Bus Operation
MVME2307 links processor, ECC memory, PCI resources and VMEbus transfers through the documented bridge architecture.
I/O Resources
MVME2307 exposes its documented communication and expansion resources through the board and documented rear I/O.
04
Installation Highlights
Ordering-Code Check
Verify the complete MVME2307 designation and board label before installation.
Rear I/O Match
Use only the rear I/O arrangement documented for MVME2307; the transition-module mode is part of the hardware configuration.
Expansion Preparation
Configure PMC hardware, memory resources and board jumpers before seating MVME2307 in the VME chassis.
05
Model FAQ
Which processor is used by MVME2307?
MVME2307 uses the MPC604 PowerPC operating at 300 MHz.
How much main memory is provided by MVME2307?
MVME2307 is documented with 64MB ECC DRAM.
Which VME architecture is used by MVME2307?
MVME2307 connects local PCI resources to the VMEbus through the documented PCI-to-VME bridge architecture.
Which expansion resources are available on MVME2307?
MVME2307 provides two PMC positions.
What should be checked before ordering MVME2307?
Verify the complete MVME2307 designation, memory configuration, front-panel or rear-I/O arrangement and hardware revision.
