HIMax System Bus
X-CPU 31 connects directly to the HIMax system bus and exchanges data with the installed modular hardware.

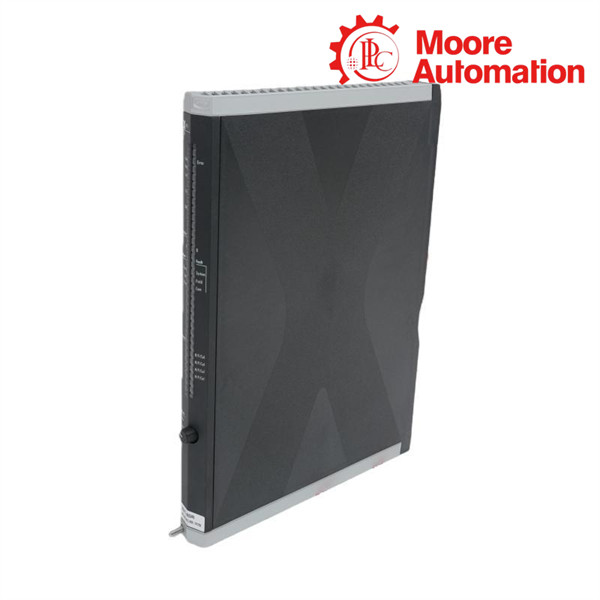

HIMA X-CPU 31 HIMax Processor Module
HIMA X-CPU 31 HIMax processor module for small and mid-sized safety applications, with system-bus connection, two RJ-45 ports and SIL 3 capability.
Ethernet2 × RJ-45
Safety integritySIL 3
User programs32
SOE resolution1 ms
Product Profile
HIMA X-CPU 31 is the processor module used for small and mid-sized applications within the modular HIMax safety system.
The module links the central safety-processing function to the HIMax system bus and provides Ethernet access for the system architecture. Its narrow module format is designed for the HIMax rack arrangement.
X-CPU 31 is documented for SIL 3 process-safety applications, Category 4 and Performance Level e machinery applications, and CENELEC SIL 4 railway applications.
Application programs, diagnostics and recorded events are handled within the HIMax CPU environment, while SILworX provides the associated engineering, programming and diagnostic workspace.
Technical Data
| Parameter | Official Data |
|---|---|
| Product type | Processor module |
| System family | HIMax |
| Application range | Small and mid-sized safety applications |
| System-bus connection | Integrated |
| Ethernet interfaces | 2 × RJ-45 |
| Safety integrity | SIL 3 |
| Machinery safety | Category 4 / Performance Level e |
| Railway application level | CENELEC SIL 4 |
| HIMax system rated voltage | 20.4–28.8 V DC |
| Ambient temperature | 0 to 60 °C |
| Module dimensions | 310 × 29 × 230 mm |
| Engineering environment | SILworX |
| Diagnostic memory | Up to 2,500 entries per CPU |
| User programs | Up to 32 |
| Sequence-of-events storage | 5,000 events with 1 ms resolution |
Processor Functions
- Program ExecutionX-CPU 31 supports execution of up to 32 user programs within the HIMax CPU environment.
- Diagnostic RecordsThe processor diagnostic memory retains up to 2,500 entries for system evaluation.
- Sequence of EventsHIMax stores 5,000 sequence-of-events entries with 1 ms resolution.
- Ethernet AccessTwo RJ-45 ports provide the documented Ethernet connections on the module.
System Integration
SILworX Engineering
SILworX provides the configuration, programming and diagnostic environment for the processor module.
Model FAQ
What is the HIMA X-CPU 31?
The HIMA X-CPU 31 is a processor module for the modular HIMax safety system and is intended for small and mid-sized safety applications.
How does the HIMA X-CPU 31 connect to HIMax hardware?
The HIMA X-CPU 31 includes a direct connection to the HIMax system bus.
Which Ethernet interfaces are available on the HIMA X-CPU 31?
The HIMA X-CPU 31 provides two RJ-45 Ethernet interfaces.
Which safety levels are documented for the HIMA X-CPU 31?
HIMA identifies the X-CPU 31 for SIL 3, Category 4, Performance Level e and CENELEC SIL 4 applications.
What are the module dimensions of the HIMA X-CPU 31?
The HIMA X-CPU 31 module dimensions are 310 × 29 × 230 mm.
Which engineering environment is used for the HIMA X-CPU 31?
The HIMA X-CPU 31 is configured, programmed and diagnosed with SILworX.
