Documented for MVME162-222.
Product Profile
MVME162-222
- 25 MHz
- 4MB parity DRAM
- Ethernet; no SCSI
- MVME162LX
Model-Specific VME Configuration

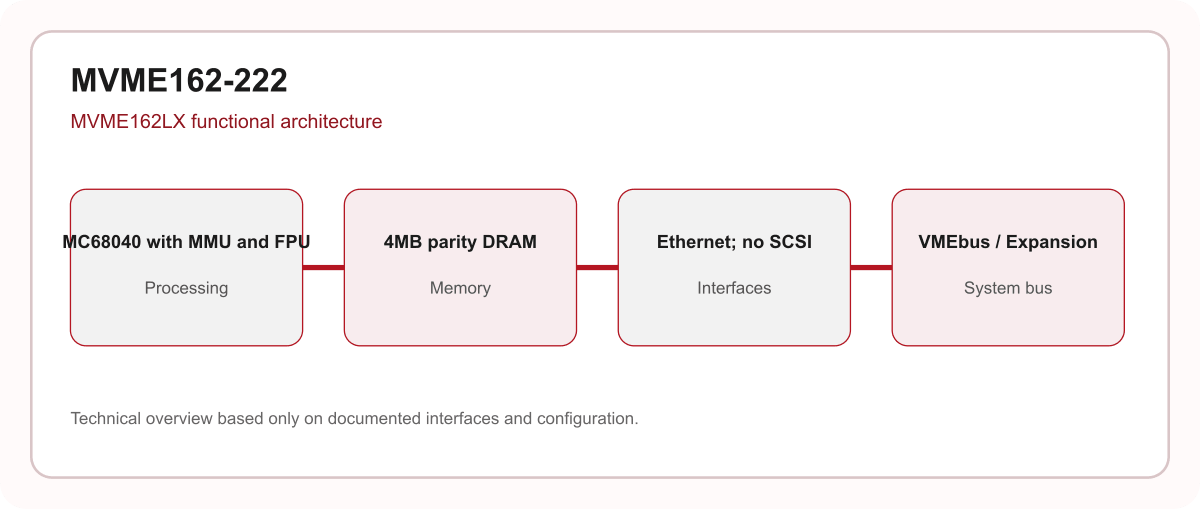

A 25 MHz MC68040 MVME162LX VMEbus embedded controller with 4MB parity DRAM, Ethernet and two IndustryPack interfaces.
The data on this page follows the exact Motorola order designation and does not add family options that are absent from this configuration.
Technical Data
MVME162-222 Specifications
| Product family | MVME162LX |
|---|---|
| Processor | MC68040 with MMU and FPU |
| Processor clock | 25 MHz |
| DRAM | 4MB parity DRAM |
| Local SRAM / NVRAM | 128KB SRAM |
| Integrated I/O configuration | Ethernet; no SCSI |
| Serial interfaces | Four asynchronous EIA-232-D ports on RJ45 connectors |
| IndustryPack capacity | Two interfaces |
| Network interface | Ethernet |
| SCSI interface | Not fitted |
| Form factor | 6U VMEbus embedded controller |
| Flash memory | 1MB |
| Nonvolatile memory | 8K × 8 NVRAM and time-of-day clock with battery backup |
| Timers | Six 32-bit timers and watchdog timer when VMEbus is present |
| VMEbus addressing/data | A16/A24/A32 and D8/D16/D32; D64 block transfer on supported VMEbus models |
| Operating temperature | 0 to 70 °C exit air with forced-air cooling |
| Storage temperature | -40 to 85 °C |
| Relative humidity | 5 to 90%, non-condensing |
| Power, +5 V | 3.5 A typical; 4.5 A maximum |
| Power, +12 V | 100 mA maximum |
| Power, -12 V | 100 mA maximum |
| Board dimensions | 233 × 160 × 17 mm |
| With connectors/front panel | 262 × 188 × 20 mm |
Operating Characteristics
Operating Characteristics for MVME162-222
DRAM
Documented for MVME162-222.
Processor
Documented for MVME162-222.
I/O
Documented for MVME162-222.
Typical Applications
Typical Applications for MVME162-222
System-Level Use
MVME162-222 is intended for VMEbus embedded-control installations requiring the exact processor, memory and interface combination shown in Motorola documentation.
Configuration Control
Match the complete MVME162-222 designation before installation because processor, memory, SCSI, Ethernet and VMEbus options vary by order code.
Frequently Asked Questions
MVME162-222 FAQ
What processor is fitted to MVME162-222?
MVME162-222 uses the documented MC68040 with MMU and FPU processor configuration at 25 MHz.
How much DRAM does MVME162-222 provide?
MVME162-222 provides 4MB parity DRAM.
Which integrated interfaces are documented for MVME162-222?
MVME162-222 is documented with Ethernet; no SCSI.
What expansion architecture does MVME162-222 use?
MVME162-222 is a MVME162LX embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
What should be verified before installing MVME162-222?
MVME162-222 should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
