Product Profile
MVME162-412
- 25 MHz
- 4MB shared DRAM without parity
- Ethernet; no SCSI
- MVME162FX
Model-Specific VME Configuration

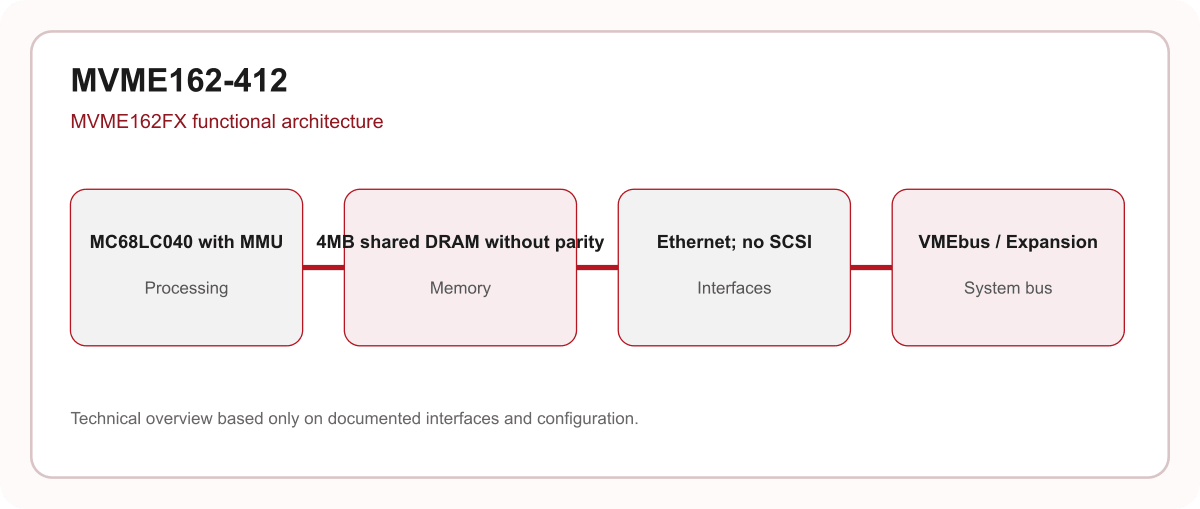

A 25 MHz MVME162FX VMEbus embedded controller with 4MB shared DRAM and Ethernet.
The data on this page follows the exact Motorola order designation and does not add family options that are absent from this configuration.
Technical Data
MVME162-412 Specifications
| Product family | MVME162FX |
|---|---|
| Processor | MC68LC040 with MMU |
| Processor clock | 25 MHz |
| DRAM | 4MB shared DRAM without parity |
| Local SRAM / NVRAM | 512KB battery-backed SRAM |
| Integrated I/O configuration | Ethernet; no SCSI |
| Ethernet interface | Present |
| SCSI interface | Not fitted |
| Serial interfaces | Two; second interface configurable through a serial interface module |
| Form factor | 6U VMEbus embedded controller |
| Flash memory | 1MB |
| Nonvolatile memory | 8K × 8 NVRAM and time-of-day clock with battery backup |
| Expansion | Four IndustryPack interfaces |
| Timers | Six 32-bit timers and watchdog timer when VMEbus is present |
| VMEbus addressing/data | A16/A24/A32 and D8/D16/D32; D64 block transfer on supported VMEbus models |
| Operating temperature | 0 to 70 °C exit air with forced-air cooling |
| Storage temperature | -40 to 85 °C |
| Relative humidity | 5 to 90%, non-condensing |
| Power, +5 V | 3.5 A typical; 4.5 A maximum |
| Power, +12 V | 100 mA maximum |
| Power, -12 V | 100 mA maximum |
| Board dimensions | 233 × 160 × 17 mm |
| With connectors/front panel | 262 × 188 × 20 mm |
Operating Characteristics
Operating Characteristics for MVME162-412
DRAM
Documented for MVME162-412.
Processor
Documented for MVME162-412.
I/O
Documented for MVME162-412.
Typical Applications
Typical Applications for MVME162-412
System-Level Use
MVME162-412 is intended for VMEbus embedded-control installations requiring the exact processor, memory and interface combination shown in Motorola documentation.
Configuration Control
Match the complete MVME162-412 designation before installation because processor, memory, SCSI, Ethernet and VMEbus options vary by order code.
Frequently Asked Questions
MVME162-412 FAQ
What processor is fitted to MVME162-412?
MVME162-412 uses the documented MC68LC040 with MMU processor configuration at 25 MHz.
How much DRAM does MVME162-412 provide?
MVME162-412 provides 4MB shared DRAM without parity.
Which integrated interfaces are documented for MVME162-412?
MVME162-412 is documented with Ethernet; no SCSI.
What expansion architecture does MVME162-412 use?
MVME162-412 is a MVME162FX embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
What should be verified before installing MVME162-412?
MVME162-412 should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
