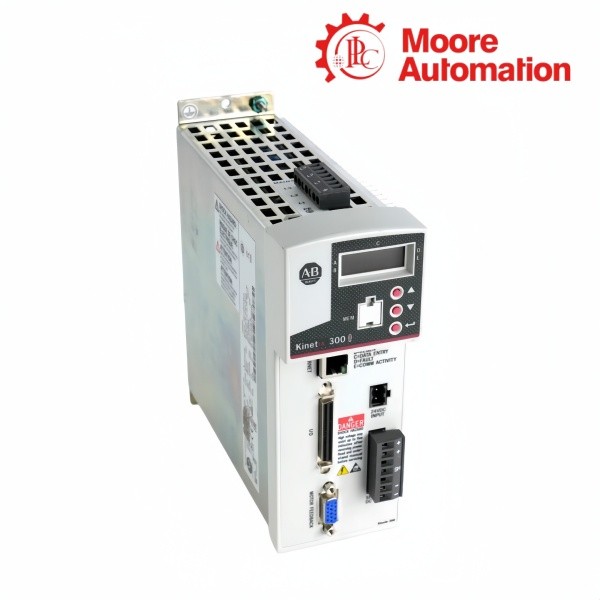

Copy| Product Name | Allen-Bradley 2097-V34PR3 Kinetix 300 EtherNet/IP Indexing Servo Drive |
| Item NO. | 2913515 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | AB |
| Brand | ALLEN-BRADLEY |
| Creation Time | 2026-10-08 |
Three-phase motion control · 1.00 kW continuous output · safe-torque-off input
The Allen-Bradley 2097-V34PR3 is a Kinetix 300 EtherNet/IP indexing servo drive built for 480 V-class, three-phase systems. Its power stage converts the incoming AC supply into controlled motor output rated at 1.00 kW continuous, while the drive coordinates indexing commands, motor feedback, I/O status, and a safe-torque-off input within one Bulletin 2097 unit.
Inside a control cabinet, 2097-V34PR3 keeps mains, motor, shunt, and contactor conductors apart from the low-level feedback, I/O, and EtherNet/IP paths. The model has no integrated AC line filter, so installations that require external filtering use the 2097-F5 rear-mount filter; a separate 20…26 V DC backup input can maintain the control section independently of the motor-power stage.
| Brand | Allen-Bradley |
|---|---|
| Product Type | Kinetix 300 EtherNet/IP indexing servo drive |
| Country of Origin | United States of America |
| Product Family | Bulletin 2097 Kinetix 300 |
| AC Input Voltage | 320…528 V AC, three-phase; 480 V nominal |
| Input Frequency | 48…62 Hz |
| Main AC Input Current | 2.7 A rms nominal; 4.5 A 0-pk maximum inrush |
| Continuous Output | 1.00 kW; 2.0 A rms / 2.8 A 0-pk |
| Peak Output | 6.0 A rms / 8.5 A 0-pk for up to 2 s at 50% duty cycle |
| Control-Power Backup | 20…26 V DC; 500 mA nominal; 30 A maximum inrush |
| DC-Bus Thresholds | Shunt on 780 V DC; shunt off 750 V DC; overvoltage 850 V DC |
| AC Line Filter | No integrated filter; 2097-F5 external rear-mount filter |
| Branch-Circuit Protection | KTK-R-10 fuse or 10 A listed circuit-breaker options |
| Recommended Contactor | 100-C12x10 AC-coil or 100-C12Zx10 DC-coil contactor |
| Short-Circuit Current Rating | 100,000 A rms symmetrical |
| Physical Size | 238 × 185 × 69 mm (9.37 × 7.29 × 2.70 in.) |
| Approximate Weight | 1.5 kg (3.3 lb) |
| Maximum Power Loss | 39 W |
| Maximum Feedback Cable Length | 20 m (65.6 ft) |
| Ambient Conditions | 0…40 °C operating; 5…95% relative humidity, noncondensing |
| Altitude | Derate 1% per 300 m (1000 ft) above 1500 m (5000 ft) |
| External Passive Shunt | 2097-R7; 150 Ω, 80 W continuous, 4.0 kW peak |
Control-path separation, conductor zoning, and lifecycle planning all affect how 2097-V34PR3 joins the rest of the motion system.
EtherNet/IP carries indexing commands and drive status for 2097-V34PR3, while motor position returns through the dedicated feedback connector and the safe-torque-off circuit remains separate from normal motion commands.
Route feedback, I/O, EtherNet/IP, and DC-filter wiring for 2097-V34PR3 through the clean zone; place mains, motor, contactor, and shunt conductors in the dirty zone.
The suggested successor to 2097-V34PR3 is 2198-E4007-ERS, but migration requires a fresh check of sizing, dimensions, interconnects, cables, communication, and accessories.
