Embedded I/O arrangement in this configuration
The controller combines 24 embedded inputs—20 digital and 4 analog—with 14 embedded outputs—12 digital and 2 analog. The digital input circuit is 120V AC and the analog inputs use a 0…10V DC range.
Allen-Bradley · MicroLogix 1400

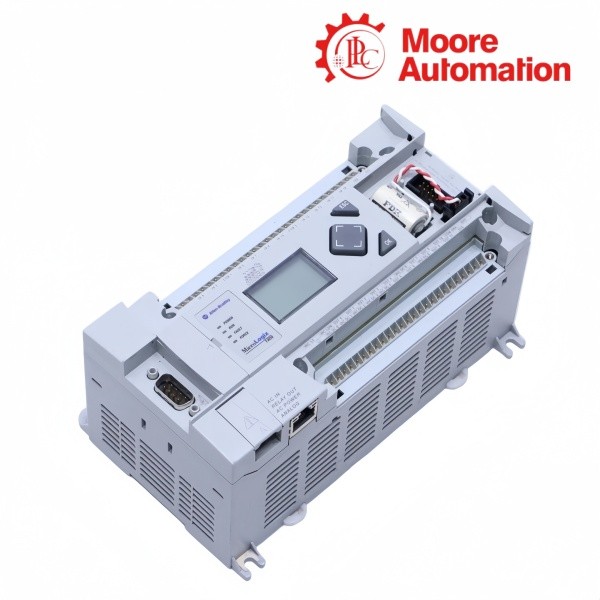

Allen-Bradley 1766-L32AWAA MicroLogix 1400 32-Point Controller
32-point AC-powered controller with relay outputs and embedded analog I/O
System roleMicroLogix 1400Embedded I/O arrangement
1Product Description
The Allen-Bradley 1766-L32AWAA is a MicroLogix 1400 32-point controller with an AC supply and relay-output architecture. It combines controller processing, embedded digital I/O and embedded analog I/O in one compact controller body.
Its embedded I/O structure contains 24 inputs—20 digital and 4 analog—and 14 outputs—12 digital and 2 analog. The digital input path uses 120V AC, the analog input path uses 0…10V DC, and the stated digital output circuit is relay based.
The supply path is 100…240V AC at 47…63Hz. The controller can carry up to seven 1762 expansion modules, so the installed I/O system can extend from the embedded points through the expansion bus.
1766-L32AWAA is the 32-point AC-powered MicroLogix 1400 configuration. Its I/O count, analog channels, relay outputs and expansion capacity distinguish it from smaller MicroLogix controllers.
2Technical Specifications
| Technical item | 1766-L32AWAA |
|---|---|
| Brand | Allen-Bradley |
| Product type | MicroLogix 1400 32-point controller |
| Embedded inputs | 24: 20 digital and 4 analog |
| Embedded outputs | 14: 12 digital and 2 analog |
| Supply voltage | 100…240V AC, 47…63Hz |
| Digital input circuit | 120V AC |
| Analog input range | 0…10V DC |
| Output circuit | Relay |
| Expansion | Up to seven 1762 modules |
| Dimensions | 90 x 180 x 87mm |
| Shipping weight | 0.9kg |
| Analog outputs | 2 embedded analog outputs |
| Expansion bus current | 1.5A at 5V DC |
| 24V DC expansion bus current | 1.5A at 24V DC |
| Programming environment | RSLogix 500 software |
3Embedded I/O arrangement
Configuration check
Before removal, record the full part number and installed interface. The operating role of 1766-L32AWAA depends on the configuration shown in the technical table.
4AC power and expansion
AC power and expansion requirements
1766-L32AWAA The controller is supplied from 100…240V AC at 47…63Hz and uses relay outputs. It supports up to seven 1762 expansion modules; account for the installed expansion arrangement and available supply before commissioning.
For the stated application, the full catalogue number 1766-L32AWAA identifies a micrologix 1400 32-point controller rather than a generic family replacement.
5Frequently Asked Questions
For the stated application, the full catalogue number 1766-L32AWAA identifies a micrologix 1400 32-point controller rather than a generic family replacement.
Before removal, record the full part number and installed interface. The operating role of 1766-L32AWAA depends on the configuration shown in the technical table.
Compare the installed connection and listed MicroLogix 1400 values with the full 1766-L32AWAA catalogue number.
Only when its full configuration matches 1766-L32AWAA; do not select by family name or appearance alone.
Provide the full 1766-L32AWAA catalogue number, requested quantity and the installed system role or interface.
