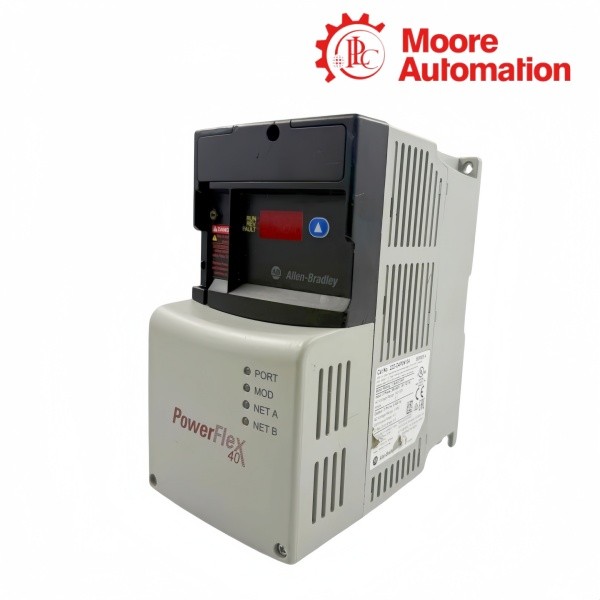

Allen-Bradley 22D-D4P0N104 PowerFlex 40P AC Drive
A 480 V-class, 4 A positioning drive with panel-mount open construction.
FRAME B40P
POWERFLEX 40P
Product Profile
Allen-Bradley 22D-D4P0N104 is a PowerFlex 40P adjustable-frequency AC drive. It is the 480 V AC three-phase, 4 A configuration in the PowerFlex 40P system and provides the drive stage for a three-phase motor circuit.
The 22D-D4P0N104 power rating is 1.5 kW (2 HP), and its hardware uses the Frame B format with a panel-mount IP20 / NEMA open enclosure. The installed operator interface is the display-with-reset version, the internal communication module is standard, and the configuration has no CE-compliant filter.
Allen-Bradley 22D-D4P0N104 reached end of life on June 30, 2025. Its engineering replacement is 25B-D4P0N104.
VERIFIED OPERATING VALUES
Technical Reference
| Technical Item | 22D-D4P0N104 |
|---|---|
| Brand | Allen-Bradley |
| Product Type | PowerFlex 40P AC drive |
| Brand Country | United States |
| Input Voltage | 480 V AC class, three phase |
| Permitted Input Range | 342–528 V AC |
| Motor Rating | 1.5 kW / 2 HP |
| Output Current | 4.0 A |
| Maximum Input Current | 5.7 A |
| Frame | B |
| Enclosure | Panel mount, IP20 / NEMA open |
| Dimensions (W × H × D) | 100 × 180 × 148 mm |
| Approximate Weight | 2.2 kg |
| Power Dissipation | 70 W |
| User Interface | Display with reset only |
| EMC Filter | Without CE-compliant filter |
| Internal Communication | Standard |
| Lifecycle | Discontinued 30 June 2025 |
CORE FUNCTIONS
Encoder and Positioning Functions
Encoder formats
The input supports line-driver incremental feedback in single-channel, quadrature or pulse-train configurations and automatically scales for 5 V, 12 V or 24 V DC nominal levels.
Position sequence
The position regulator works with StepLogic, including an eight-position local sequence, and accepts pulse frequencies up to 250 kHz.
DIAGNOSTICS
Fault and Status Diagnostics
Read-only display parameters expose the drive state without changing the control setup.22D-D4P0N104
22D-D4P0N104 provides three stored fault-code parameters together with live control and feedback status values.
- Digital Input Status reports the state of the control-terminal inputs.
- Separate display values report the 0-10 V and 4-20 mA analog inputs.
- Step Logic Status identifies the current step of the active StepLogic profile.
FIELD QUESTIONS
Service & Migration Questions
What makes 22D-D4P0N104 a PowerFlex 40P rather than a standard PowerFlex 40 selection?+
The 40P family adds positioning-oriented control features. Confirm the application needs those functions before treating a general-purpose drive as equivalent.
How much cabinet space should be reserved for 22D-D4P0N104?+
Start with the 100 × 180 × 148 mm Frame B body, then add the manual mounting clearance, cable bend radius and ventilation space.
Does 22D-D4P0N104 include a CE-compliant EMC filter?+
No. The exact catalog configuration is listed without a CE-compliant filter and with the standard internal communication module.
Why does 22D-D4P0N104 show only a display with reset?+
That catalog configuration does not include a full local programming HIM. Plan the approved programming method and retain a parameter backup.
What is the Rockwell Automation replacement path for 22D-D4P0N104?+
The official lifecycle page identifies 25B-D4P0N104. It is an engineering replacement, so wiring, dimensions, parameters and machine behavior still require review.
Can 22D-D4P0N104 be installed without an enclosure heat calculation?+
No. The drive is open type and the technical data lists about 70 W of power dissipation, which must be included in cabinet thermal planning.
MOORE AUTOMATION
Our Services
Our Services
Legacy drive sourcing with migration context
We can quote an exact catalog number while keeping lifecycle and replacement information visible to the buyer.
Identity checkLifecycle noteCondition confirmationExport documentation
