Discrete inputs
DeviceLogix in 20G11NC022JA0NNNNN, 20G11ND022JA0NNNNN and 20G11NE022JA0NNNNN can use discrete inputs directly within embedded control logic.
EMBEDDED ETHERNET/IP · 22 A PLATFORM

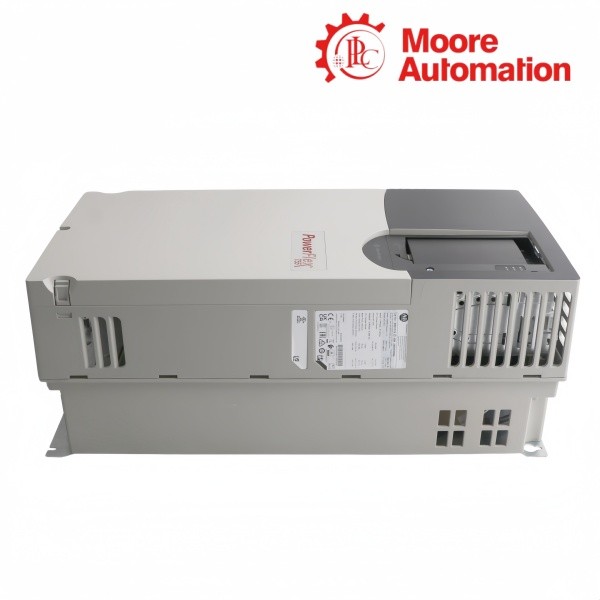

Allen-Bradley 20G11ND022JA0NNNNN / 20G11NC022JA0NNNNN / 20G11NE022JA0NNNNN PowerFlex 755 Drives
Three 22 A PowerFlex 755 builds separated by voltage class and frame.
THREE VOLTAGE CLASSES755
POWERFLEX 755
Configuration Overview
Allen-Bradley 20G11ND022JA0NNNNN, 20G11NC022JA0NNNNN and 20G11NE022JA0NNNNN are air-cooled PowerFlex 755 AC drives with embedded EtherNet/IP. Each configuration has a 22 A output rating and an AC input with DC terminals.
The voltage and frame assignments separate 20G11ND022JA0NNNNN, 20G11NC022JA0NNNNN and 20G11NE022JA0NNNNN. The ND unit is 480 V and Frame 2, the NC unit is 400 V and Frame 2, and the NE unit is 600 V and Frame 3; their normal-duty ratings are 15 HP, 11 kW and 20 HP respectively.
The 20G11ND022JA0NNNNN, 20G11NC022JA0NNNNN and 20G11NE022JA0NNNNN configurations use standard protection, forced-air cooling and an IP20/IP00 open enclosure. Each includes filtering, an installed CM jumper and a dynamic-brake transistor, and each is supplied without a HIM.
VERIFIED OPERATING VALUES
Rating Comparison
| Technical Item | 20G11ND022JA0NNNNN | 20G11NC022JA0NNNNN | 20G11NE022JA0NNNNN |
|---|---|---|---|
| Brand | Allen-Bradley | Allen-Bradley | Allen-Bradley |
| Product Type | PowerFlex 755 AC drive | PowerFlex 755 AC drive | PowerFlex 755 AC drive |
| Brand Country | United States | United States | United States |
| Voltage Class | 480 V AC, three phase | 400 V AC, three phase | 600 V AC, three phase |
| Output Current | 22 A | 22 A | 22 A |
| Normal-Duty Rating | 15 HP | 11 kW | 20 HP |
| Heavy-Duty Rating | 10 HP | 7.5 kW | 15 HP |
| Frame | 2 | 2 | 3 |
| Enclosure | IP20 / IP00 open | IP20 / IP00 open | IP20 / IP00 open |
| Cooling | Forced air | Forced air | Forced air |
| Network | Embedded EtherNet/IP | Embedded EtherNet/IP | Embedded EtherNet/IP |
| DC Terminals | Included | Included | Included |
| Dynamic Brake Transistor | Included | Included | Included |
| EMC Configuration | Filtered; CM jumper installed | Filtered; CM jumper installed | Filtered; CM jumper installed |
| HIM | Not included | Not included | Not included |
EMBEDDED CONTROL
DeviceLogix Control Functions
Drive status
Drive status information is available to the same on-board logic engine.
Control results
The resulting logic can manipulate discrete outputs and drive-control functions without adding a separate external logic device for those operations.
CONDITION MONITORING
Predictive Diagnostics
PowerFlex 755 predictive counters track operating data tied to component service life.20G11ND022JA0NNNNN / 20G11NC022JA0NNNNN / 20G11NE022JA0NNNNN
20G11NC022JA0NNNNN, 20G11ND022JA0NNNNN and 20G11NE022JA0NNNNN use the PowerFlex 750-Series predictive-diagnostics functions.
- The diagnostic data tracks factors that affect drive cooling-fan life.
- Relay-output operation is included in the tracked component-life information.
- Runtime-hour monitoring can be assigned to machine or motor bearings.
FIELD QUESTIONS
Network & Application FAQs
Why must the full suffix be retained for 20G11ND022JA0NNNNN / 20G11NC022JA0NNNNN / 20G11NE022JA0NNNNN?+
The suffix identifies voltage and configuration details. All three are 22 A units, but they are 480 V, 400 V and 600 V products and are not supply-voltage substitutes.
Which frame sizes apply to 20G11ND022JA0NNNNN / 20G11NC022JA0NNNNN / 20G11NE022JA0NNNNN?+
The ND and NC catalog numbers use Frame 2. The NE 600 V version uses Frame 3, so panel dimensions and replacement fit must be checked separately.
How should embedded EtherNet/IP be commissioned on 20G11ND022JA0NNNNN / 20G11NC022JA0NNNNN / 20G11NE022JA0NNNNN?+
Document the IP settings, establish the controller connection, verify command and reference ownership, then test network-loss behavior before releasing the machine.
What do normal-duty and heavy-duty values mean for 20G11ND022JA0NNNNN / 20G11NC022JA0NNNNN / 20G11NE022JA0NNNNN?+
They are different application rating bases. Use the load torque and overload profile to choose the duty class; do not simply use the larger horsepower figure.
Is a HIM included with 20G11ND022JA0NNNNN / 20G11NC022JA0NNNNN / 20G11NE022JA0NNNNN?+
The official configurations list no HIM. Include the required operator interface or commissioning tool in the project scope.
Why should the DC terminals be reviewed on 20G11ND022JA0NNNNN / 20G11NC022JA0NNNNN / 20G11NE022JA0NNNNN?+
The catalog configuration includes DC terminals and a brake transistor. Any common-bus or braking connection must follow the manual and the drive-system design.
MOORE AUTOMATION
Quality & Warranty
Quality & Warranty
Traceable identity before the drive leaves our warehouse
Complete catalog strings are checked against the quotation and packing record, helping prevent voltage-class substitutions.
Full suffix recordedVisual condition checkProtective packingOne-year warranty
