MVME162-723
- 32 MHz
- 4MB parity-protected DRAM
- SCSI and Ethernet
- MVME162LX 700 Series
Model-Specific VME Configuration
A 32 MHz MC68040 MVME162LX 700-series VMEbus embedded controller with 4MB parity-protected DRAM, SCSI and Ethernet.
The data on this page follows the exact Motorola order designation and does not add family options that are absent from this configuration.
Technical Data
MVME162-723 Specifications
| Product family | MVME162LX 700 Series |
|---|---|
| Processor | MC68040 with MMU and FPU |
| Processor clock | 32 MHz |
| DRAM | 4MB parity-protected DRAM |
| Local SRAM / NVRAM | 128KB battery-backed SRAM |
| Integrated I/O configuration | SCSI and Ethernet |
| Flash memory | 2MB |
| Serial interfaces | Four asynchronous EIA-232-D ports |
| IndustryPack capacity | Two interfaces |
| Ethernet interface | Present |
| SCSI interface | Present |
| Form factor | 6U VMEbus embedded controller |
| Nonvolatile memory | 8K × 8 NVRAM and time-of-day clock with battery backup |
| Timers | Six 32-bit timers and watchdog timer when VMEbus is present |
| VMEbus addressing/data | A16/A24/A32 and D8/D16/D32; D64 block transfer on supported VMEbus models |
| Operating temperature | 0 to 70 °C exit air with forced-air cooling |
| Storage temperature | -40 to 85 °C |
| Relative humidity | 5 to 90%, non-condensing |
| Power, +5 V | 3.5 A typical; 4.5 A maximum |
| Power, +12 V | 100 mA maximum |
| Power, -12 V | 100 mA maximum |
| Board dimensions | 233 × 160 × 17 mm |
| With connectors/front panel | 262 × 188 × 20 mm |
Communication Architecture

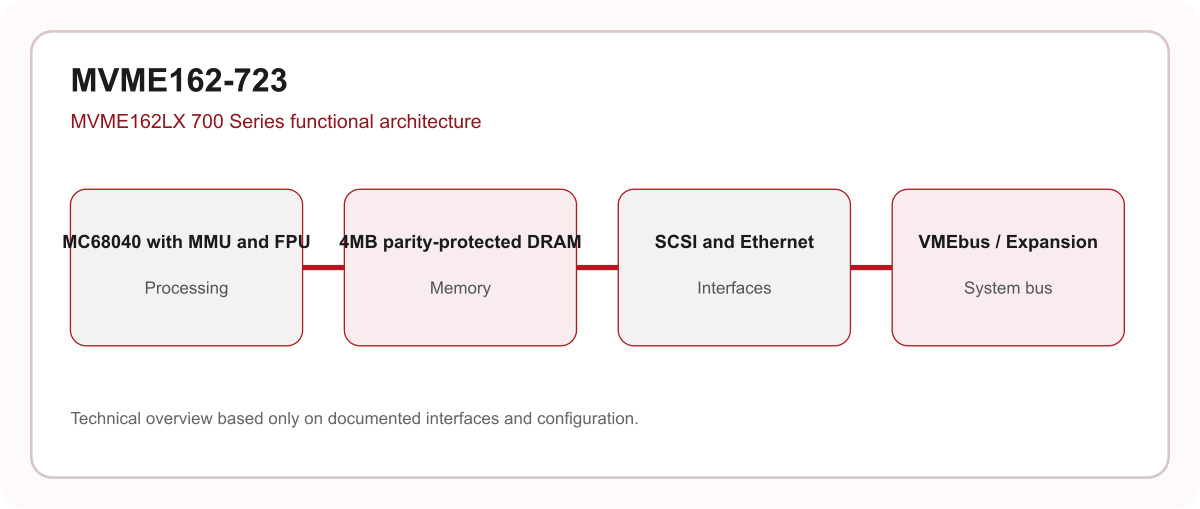

Communication Architecture for MVME162-723
DRAM
Documented for MVME162-723.
Processor
Documented for MVME162-723.
I/O
Documented for MVME162-723.
Configuration and Diagnostics
Configuration and Diagnostics for MVME162-723
System-Level Use
Use the documented debugger, RESET, ABORT, status, jumper and serial-interface settings to configure and diagnose MVME162-723.
Configuration Control
Match the complete MVME162-723 designation before installation because processor, memory, SCSI, Ethernet and VMEbus options vary by order code.
Frequently Asked Questions
MVME162-723 FAQ
What processor is fitted to MVME162-723?
MVME162-723 uses the documented MC68040 with MMU and FPU processor configuration at 32 MHz.
How much DRAM does MVME162-723 provide?
MVME162-723 provides 4MB parity-protected DRAM.
Which integrated interfaces are documented for MVME162-723?
MVME162-723 is documented with SCSI and Ethernet.
What expansion architecture does MVME162-723 use?
MVME162-723 is a MVME162LX 700 Series embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
What should be verified before installing MVME162-723?
MVME162-723 should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
