Clock
Documented for MVME162-510A.
Product Profile
MVME162-510A
- 32 MHz
- 4MB shared DRAM without parity
- No SCSI or Ethernet
- MVME162FX
Model-Specific VME Configuration
A 32 MHz MC68040 MVME162FX VMEbus embedded controller with 4MB shared DRAM and four IndustryPack interfaces.
The data on this page follows the exact Motorola order designation and does not add family options that are absent from this configuration.
Technical Data
MVME162-510A Specifications
| Product family | MVME162FX |
|---|---|
| Processor | MC68040 with MMU and FPU |
| Processor clock | 32 MHz |
| DRAM | 4MB shared DRAM without parity |
| Local SRAM / NVRAM | 512KB battery-backed SRAM |
| Integrated I/O configuration | No SCSI or Ethernet |
| Ethernet interface | Not fitted |
| SCSI interface | Not fitted |
| Serial interfaces | Two; second interface configurable through a serial interface module |
| Form factor | 6U VMEbus embedded controller |
| Flash memory | 1MB |
| Nonvolatile memory | 8K × 8 NVRAM and time-of-day clock with battery backup |
| Expansion | Four IndustryPack interfaces |
| Timers | Six 32-bit timers and watchdog timer when VMEbus is present |
| VMEbus addressing/data | A16/A24/A32 and D8/D16/D32; D64 block transfer on supported VMEbus models |
| Operating temperature | 0 to 70 °C exit air with forced-air cooling |
| Storage temperature | -40 to 85 °C |
| Relative humidity | 5 to 90%, non-condensing |
| Power, +5 V | 3.5 A typical; 4.5 A maximum |
| Power, +12 V | 100 mA maximum |
| Power, -12 V | 100 mA maximum |
| Board dimensions | 233 × 160 × 17 mm |
| With connectors/front panel | 262 × 188 × 20 mm |
Communication Architecture

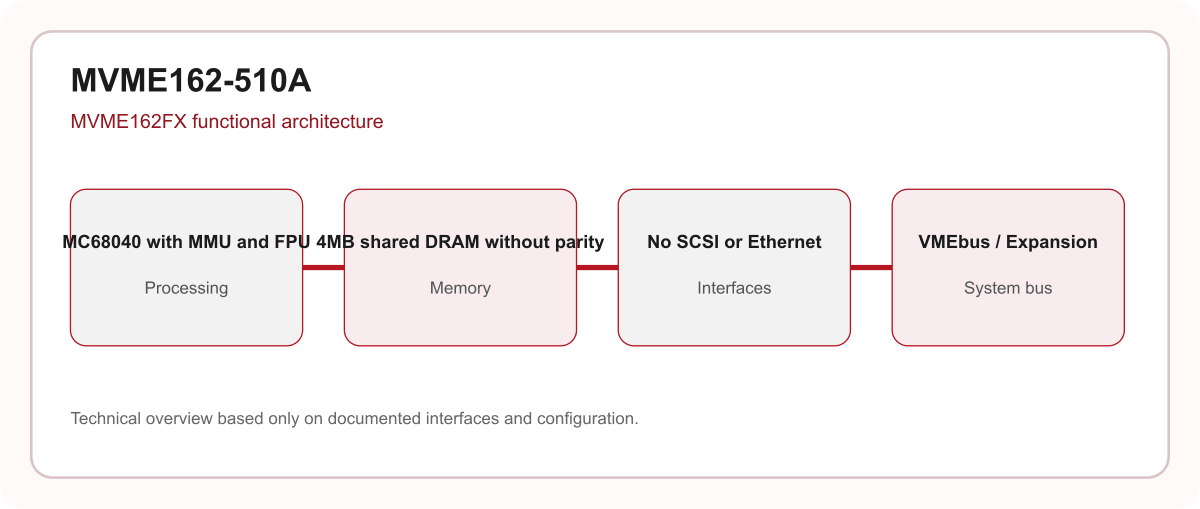

Communication Architecture for MVME162-510A
DRAM
Documented for MVME162-510A.
Processor
Documented for MVME162-510A.
I/O
Documented for MVME162-510A.
Configuration and Diagnostics
Configuration and Diagnostics for MVME162-510A
System-Level Use
Use the documented debugger, RESET, ABORT, status, jumper and serial-interface settings to configure and diagnose MVME162-510A.
Configuration Control
Match the complete MVME162-510A designation before installation because processor, memory, SCSI, Ethernet and VMEbus options vary by order code.
Frequently Asked Questions
MVME162-510A FAQ
What processor is fitted to MVME162-510A?
MVME162-510A uses the documented MC68040 with MMU and FPU processor configuration at 32 MHz.
How much DRAM does MVME162-510A provide?
MVME162-510A provides 4MB shared DRAM without parity.
Which integrated interfaces are documented for MVME162-510A?
MVME162-510A is documented with No SCSI or Ethernet.
What expansion architecture does MVME162-510A use?
MVME162-510A is a MVME162FX embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
What should be verified before installing MVME162-510A?
MVME162-510A should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
