Documented for MVME162-512A.
Product Profile
MVME162-512A
- 32 MHz
- 4MB shared DRAM without parity
- Ethernet; no SCSI
- MVME162FX
Model-Specific VME Configuration

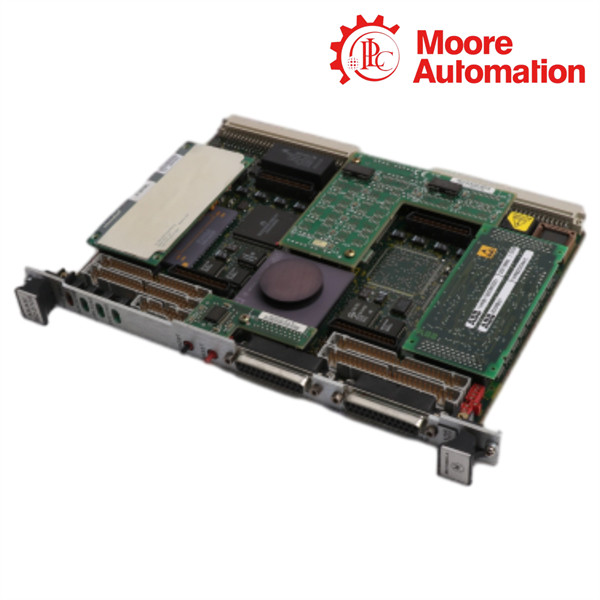

A 32 MHz MC68040 MVME162FX VMEbus embedded controller with 4MB shared DRAM, Ethernet and four IndustryPack interfaces.
The data on this page follows the exact Motorola order designation and does not add family options that are absent from this configuration.
Technical Data
MVME162-512A Specifications
| Product family | MVME162FX |
|---|---|
| Processor | MC68040 with MMU and FPU |
| Processor clock | 32 MHz |
| DRAM | 4MB shared DRAM without parity |
| Local SRAM / NVRAM | 512KB battery-backed SRAM |
| Integrated I/O configuration | Ethernet; no SCSI |
| Ethernet interface | Present |
| SCSI interface | Not fitted |
| Serial interfaces | Two; second interface configurable through a serial interface module |
| Revision notation | Motorola identifies MVME162-512A as the A-revision ordering designation |
| Form factor | 6U VMEbus embedded controller |
| Flash memory | 1MB |
| Nonvolatile memory | 8K × 8 NVRAM and time-of-day clock with battery backup |
| Expansion | Four IndustryPack interfaces |
| Timers | Six 32-bit timers and watchdog timer when VMEbus is present |
| VMEbus addressing/data | A16/A24/A32 and D8/D16/D32; D64 block transfer on supported VMEbus models |
| Operating temperature | 0 to 70 °C exit air with forced-air cooling |
| Storage temperature | -40 to 85 °C |
| Relative humidity | 5 to 90%, non-condensing |
| Power, +5 V | 3.5 A typical; 4.5 A maximum |
| Power, +12 V | 100 mA maximum |
| Power, -12 V | 100 mA maximum |
| Board dimensions | 233 × 160 × 17 mm |
| With connectors/front panel | 262 × 188 × 20 mm |

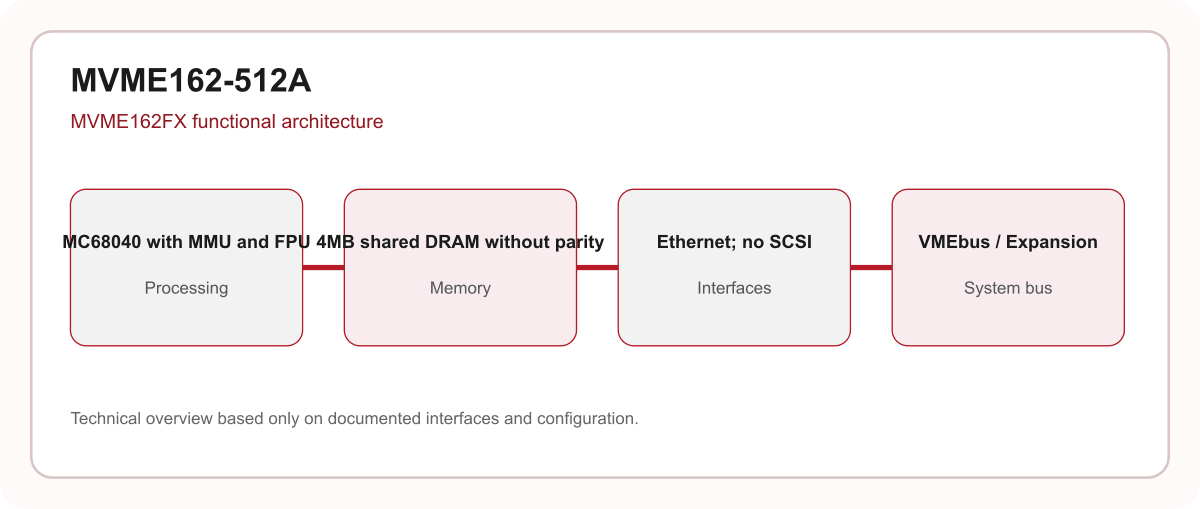

Communication Architecture
Communication Architecture for MVME162-512A
DRAM
Documented for MVME162-512A.
Processor
Documented for MVME162-512A.
I/O
Documented for MVME162-512A.
Configuration and Diagnostics
Configuration and Diagnostics for MVME162-512A
System-Level Use
Use the documented debugger, RESET, ABORT, status, jumper and serial-interface settings to configure and diagnose MVME162-512A.
Configuration Control
Match the complete MVME162-512A designation before installation because processor, memory, SCSI, Ethernet and VMEbus options vary by order code.
Frequently Asked Questions
MVME162-512A FAQ
What processor is fitted to MVME162-512A?
MVME162-512A uses the documented MC68040 with MMU and FPU processor configuration at 32 MHz.
How much DRAM does MVME162-512A provide?
MVME162-512A provides 4MB shared DRAM without parity.
Which integrated interfaces are documented for MVME162-512A?
MVME162-512A is documented with Ethernet; no SCSI.
What expansion architecture does MVME162-512A use?
MVME162-512A is a MVME162FX embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
What should be verified before installing MVME162-512A?
MVME162-512A should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
