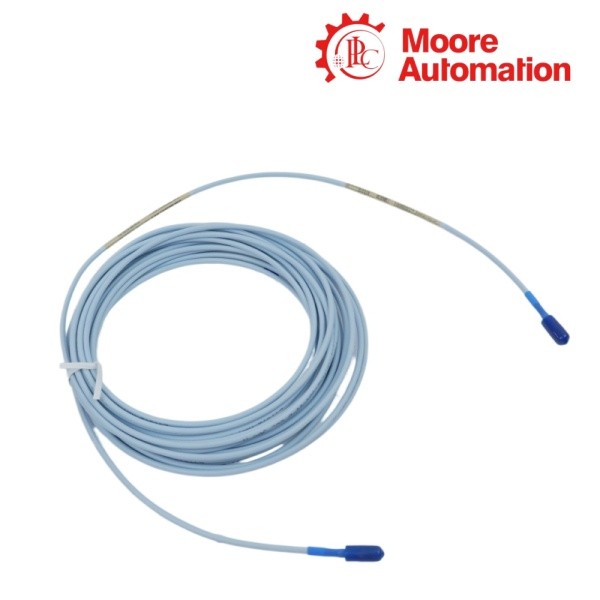

Name: Bently Nevada 330190-045-01-05 | 3300 XL ETR Extension Cable
Brand: Bently Nevada
SKU: 2925422
Price: 1 USD
Availability: InStock

Product Description

Bently Nevada 330190-045-01-05 is a 3300 XL ETR extension cable used to preserve the electrical path between a compatible probe and Proximitor sensor. The complete suffix identifies the cable execution supplied for the installation and should stay attached to the model record during ordering.

Unlike a monitor or transmitter, Bently Nevada 330190-045-01-05 does not process the vibration value. It carries the probe signal through the selected length and connector arrangement so the Proximitor sensor can provide excitation and return the conditioned output.

The cable is installed as part of the total probe, extension and sensor length. Bently Nevada 330190-045-01-05 therefore requires mechanical support, controlled bend radius and a clean connector interface at both ends.

Official technical diagram for 330190-045-01-05

Product Specifications

Technical Item	Value
Model	330190-045-01-05
Brand	Bently Nevada
Product origin	USA
Signal family	Eddy-current proximity measurement
Product type	3300 XL ETR extension cable
Cable function	Extends the probe-to-Proximitor electrical path
Connector execution	Defined by the complete suffix
System constraint	Total cable length must match the transducer calibration
Mounting requirement	Rigid bracket or housing with controlled probe gap
Operating temperature	Depends on the selected Bently Nevada family and exact suffix
Electrical path	Probe / cable / Proximitor sensor matched as a complete system
Cable length option A	045 = 4.5 m (14.8 ft)
Cable option B	01 = armoured cable
Approval option C	05 = suffix-controlled approval execution
Cable construction	3300 XL ETR extension cable with matched probe / cable / Proximitor length
Environmental boundary	Use within the selected 3300 XL system temperature, routing and connector limits

Communication and Connectivity

Bently Nevada 330190-045-01-05 maintains the analog proximity signal between the probe and the Proximitor sensor.

Probe interface

The cable receives the probe signal at the selected probe-side connection.

Sensor interface

The opposite end connects to the matching Proximitor sensor input and preserves the calibrated electrical relationship.

Shield continuity

The cable construction maintains the shield path that limits interference on the low-level probe signal.

Diagnostics and Protection

The cable itself has no alarm logic, but its condition directly affects whether Bently Nevada 330190-045-01-05 delivers a stable transducer signal.

Connector inspection

A loose or contaminated connector can create intermittent output that resembles a monitor fault.

Mechanical protection

Support the cable so repeated vibration does not load the connector or conductor transition.

Length verification

Keep the full cable designation on the order record because the installed length affects the transducer response.

Common Questions

What does Bently Nevada 330190-045-01-05 do?

Bently Nevada 330190-045-01-05 extends the analog probe signal between a compatible probe and Proximitor sensor.

Does Bently Nevada 330190-045-01-05 contain a monitor?

No. Bently Nevada 330190-045-01-05 is an extension cable; the Proximitor sensor performs excitation and signal conditioning.

Why must the complete Bently Nevada 330190-045-01-05 suffix be retained?

Bently Nevada 330190-045-01-05: The suffix identifies the cable execution and length needed for the matched proximity system.

What can cause intermittent Bently Nevada 330190-045-01-05 output?

Bently Nevada 330190-045-01-05: Check connector seating, shield continuity, bend stress and cable damage before changing monitor settings.

How should Bently Nevada 330190-045-01-05 be supported?

Support Bently Nevada 330190-045-01-05 along the route and keep the connector transitions free from hanging load.

Can Bently Nevada 330190-045-01-05 be extended again?

Additional cable length changes the calibrated electrical path, so Bently Nevada 330190-045-01-05 should be checked as part of the complete system.

Customer Support

Moore Automation

https://www.mvme.cn/

Moore Automation supports extended-temperature cable records with complete suffix checking and clear coordination from quotation to dispatch.

Bently Nevada 330190-045-01-05 is retained as the 4.5 m ETR extension-cable execution supplied for the matched 3300 XL path.

ETR record checkCable length and suffix groups remain visible.

System length reviewProbe, cable and Proximitor total length are checked together.

Dispatch traceThe exact cable execution stays linked to shipping.
