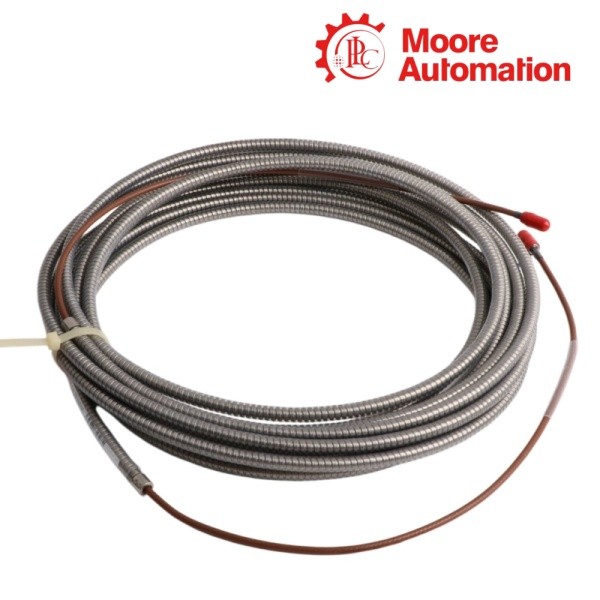

Bently Nevada 24710-080-01 Legacy 11 mm Armored Extension Cable
8.00 m electrical lengthArmor option 0111 mm legacy system
01
Product Description
The Bently Nevada 24710-080-01 is the armored 8.00 m extension-cable execution for the legacy 7200 Series 11 mm proximity system. It extends the coaxial path between the probe lead and the matching 19049 Proximitor sensor, making cable length part of the calibrated nine-meter transducer chain rather than an interchangeable wiring convenience.
For 24710-080-01, the 080 field selects 8.00 m electrical length and the 01 field selects armor; the no-approval base number is 24710. Its physical length is specified relative to electrical length at +15%/−10%, so replacement control depends on the complete legacy order identity, connector condition and system-length match.
02
Technical Specifications
| Technical Item | 24710-080-01 |
|---|---|
| Brand | Bently Nevada |
| Product Type | Legacy 11 mm proximity extension cable |
| Product Origin | USA |
| Product Family | 7200 Series 11 mm proximity transducer system |
| Official Order Structure | 24710-AAA-BB |
| Cable Length Code | 080 |
| Electrical Length | 8.00 m (315 in) |
| Physical-Length Tolerance | Electrical length +15% / −10% |
| Armor Option | 01 — with armor |
| Approval Execution | 24710 base number — no approvals |
| Cable Function | Probe-lead to Proximitor extension path |
| Matched System Length | 9 m chain when paired with the corresponding 1 m probe |
| Cable Construction | 95 Ω coaxial cable used for the legacy probe lead and extension |
| Connectors | Male and female coaxial cable connectors |
03
Product Functions — Legacy 11 mm Extension
24710-080-01 completes the electrical distance between a legacy 11 mm probe and its matched 19049 Proximitor sensor.
Coaxial signal continuity
The cable carries the probe-coil impedance through matched coaxial connectors without converting or powering the signal along the route.
Legacy family retention
Its connector and electrical construction belong to the 7200 Series 11 mm chain and are not treated as a generic 3300 XL extension cable.
04
Installation Highlights — 8 m Armored Cable
Installing 24710-080-01 requires protecting its coaxial geometry and confirming both ends against the legacy probe and Proximitor interfaces.
Armor-aware routing
Route the stainless-steel-armored cable without crushing, sharp bends or unsupported mass at either connector.
Connector cleanliness
Keep the male and female coaxial contacts dry and clean so oil or debris does not alter the signal path.
No cutting or splicing
Shortening or extending the assembly changes electrical length; install the complete factory-length cable as one component.
05
Frequently Asked Questions
Why does the official 24710-080-01 code not include the extra “-00” sometimes shown in enquiries?
The legacy ordering structure is 24710-AAA-BB. For this cable, 080 identifies 8.00 m and 01 identifies armor, so the additional trailing field is not part of the official catalog number.
What should be checked when a replacement 24710-080-01 changes the gap response?
Confirm that the complete legacy probe, extension cable and 19049 Proximitor still form the required electrical length. A different cable length or connector family changes system calibration.
Why will 24710-080-01 not mate with a 3300 XL ClickLoc connection?
It belongs to the legacy 7200 Series 11 mm hardware and uses that system’s connector arrangement. Do not force it into the later 3300 XL interface.
Can a kinked or cut 24710-080-01 be repaired by splicing?
No. A splice changes cable capacitance and shielding and can compromise armor protection. Replace the cable with the correct 8.00 m armored execution.
Why can the measured physical length of 24710-080-01 differ slightly from eight meters?
The legacy cable specification includes a +15/−10 cm length tolerance, so receiving inspection should apply that tolerance rather than reject a conforming cable.
What information is needed before ordering 24710-080-01 for an old installation?
Record the complete probe, cable and Proximitor numbers, connector style, required electrical length and armor option; the family name alone is not enough to confirm a legacy chain.
