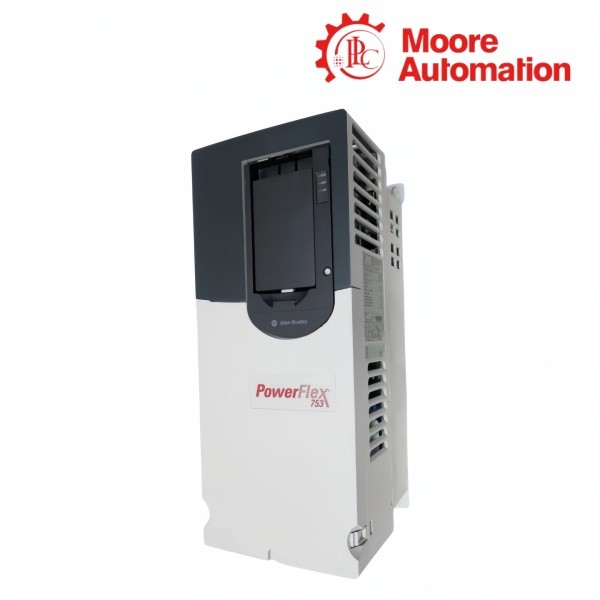

Allen-Bradley 20F11NE011JA0NNNNN PowerFlex 753 600 V AC Drive
AC DRIVE7531 CATALOG NUMBER
Product Description
Allen-Bradley 20F11NE011JA0NNNNN is a 600 V three-phase PowerFlex 753 AC drive with embedded I/O for machine motor control. Installed between the line supply and motor, it converts fixed-frequency input power into an adjustable three-phase output while discrete or analog field commands reach the regulator through the embedded control interface.
The power structure of 20F11NE011JA0NNNNN combines AC input and accessible DC terminals with an internal DC link, inverter and dynamic-braking transistor. Frame 3 forced-air hardware provides the physical platform, the filtered open-type construction belongs inside a protective enclosure, and the blank HIM selection means a local keypad/display is not part of the ordered drive.
Technical Specifications
| Technical Item | 20F11NE011JA0NNNNN |
|---|---|
| Brand | Allen-Bradley |
| Product Type | PowerFlex 753 AC Drive, with Embedded I/O |
| Brand Country | United States |
| Corrosive Gas Protection and Cooling Type | Standard Protection, Forced Air |
| Voltage Class | 600 VAC, 3PH |
| Output Current | 11 Amps, 10HP ND, 7.5HP HD |
| Enclosure Type | IP20/IP00, NEMA/UL Open Type |
| Input Type | AC Input with DC Terminals |
| Frame Size | Frame 3 |
| EMC Filtering Options | Filtered, CM jumper installed (preferred) |
| Dynamic Braking | DB Transistor |
| HIM | Blank (No HIM) |
| Maximum Surrounding Air Temperature | 0...50 °C (32...122 °F) |
| Storage Temperature | -40...70 °C (-40...158 °F) |
| Relative Humidity | 5...95%, noncondensing |
| Input Frequency Tolerance | 47...63 Hz |
| Displacement Power Factor | 0.98 across the speed range |
| Efficiency | 97.5% at rated current and nominal line voltage |
| Output Voltage Range | 0 to rated motor voltage |
| Output Frequency Range | 0...325 Hz at 2 kHz carrier; 0...590 Hz at 4 kHz carrier |
| Maximum Short-Circuit Rating | 200,000 A RMS symmetrical |
| Operating Shock | 15 g peak for 11 ms |
| Operating Vibration | 1.000 mm displacement, 1.5 g peak |
600 V Motor Control
PowerFlex 753
Voltage conversion and duty selection work together at the motor feeder.
Variable motor output
The inverter switches DC-link energy into a controlled three-phase waveform used to regulate motor operation.
Duty-based sizing
Normal-duty and heavy-duty motor ratings are selected from the load profile rather than treated as interchangeable nameplate values.
Dynamic Braking Interface
The internal switching device and external energy-dissipation hardware have separate roles.
DC-link access
DC terminals provide the defined connection point to the internal DC path for supported drive configurations.
Transistor switching
The installed DB transistor turns the braking branch on when the control system calls for regenerated energy to be dissipated.
External resistor
The resistor, protection and thermal placement are not supplied by the transistor code and must match the drive and application energy.
Frequently Asked Questions
An existing feeder is not in the 600 V class. Can 20F11NE011JA0NNNNN be connected because its motor power is suitable?
No. 20F11NE011JA0NNNNN is a 600 V-class three-phase drive; feeder voltage compatibility must be established independently of the motor kW rating.
A technician plans to wire a braking resistor directly across the DC terminals of 20F11NE011JA0NNNNN. Is that the correct function of those terminals?
No. The DC terminals expose the DC-link connection, while the internal DB transistor switches the separately designed external braking-resistor branch.
The machine is installed in a washdown area. Does 20F11NE011JA0NNNNN provide the required sealed protection by itself?
No. Its ordered enclosure is IP20/IP00 open type. A suitable external cabinet must provide the required environmental protection and maintain the forced-air cooling route.
A spare fan and mounting kit are being prepared for 20F11NE011JA0NNNNN. Which mechanical platform must they match?
They must match Frame 3. Frame-dependent fans, mounting dimensions and accessories cannot be selected from the 600 V designation alone.
The supply grounding method differs from a conventional solidly grounded system. What part of 20F11NE011JA0NNNNN must be checked before energization?
The filtered configuration uses a CM jumper installed in the preferred position. Its arrangement must be reviewed against the actual grounding and distribution system before power is applied.
