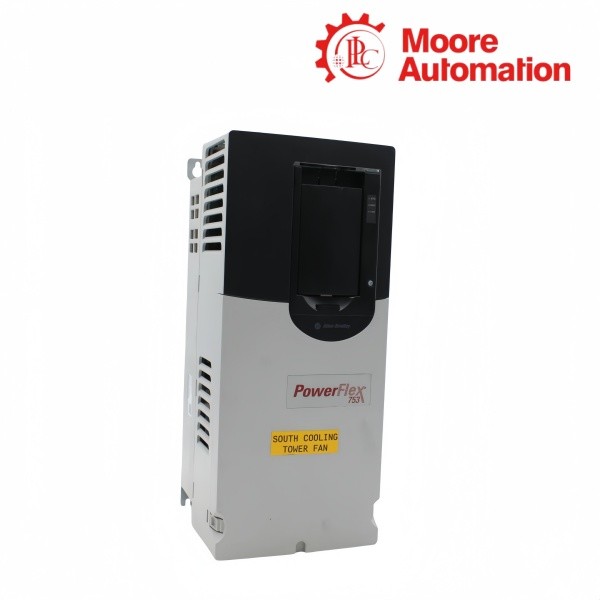

Copy| Product Name | Allen-Bradley 20F11ND034JA0NNNNN / 20F11ND065JA0NNNNN / 20F11ND011JA0NNNNN PowerFlex 753 AC Drives |
| Item NO. | 2911472 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | AB |
| Brand | ALLEN-BRADLEY |
| Creation Time | 2026-09-27 |
Allen-Bradley 20F11ND034JA0NNNNN, 20F11ND065JA0NNNNN and 20F11ND011JA0NNNNN are PowerFlex 753 AC drives with embedded I/O in the PowerFlex 750-Series. Installed in a motor-control cabinet between the incoming supply and a three-phase motor, each drive regulates motor speed and torque while exchanging operating commands and drive status with the surrounding control system.
Inside 20F11ND034JA0NNNNN, 20F11ND065JA0NNNNN and 20F11ND011JA0NNNNN, embedded I/O passes field commands to the drive control section, the power stage converts the incoming electrical supply into controlled motor output, and operating status returns through the control interface. The three catalog numbers perform the same system role but occupy different output and physical classes, so the complete model determines both the supported motor duty and the required cabinet envelope.
| Technical Item | 20F11ND034JA0NNNNN | 20F11ND065JA0NNNNN | 20F11ND011JA0NNNNN |
|---|---|---|---|
| Brand | Allen-Bradley | ||
| Product Type | PowerFlex 753 AC drive with embedded I/O | ||
| Product Series | PowerFlex 750-Series | ||
| Country of Origin | Multiple | ||
| Lifecycle | Active | ||
| Standard Warranty | 1 year | ||
| Voltage Class | 480 V AC, three-phase | ||
| Input Phases | 3-phase | ||
| Output Current | 34 A | 65 A | 11 A |
| Normal-Duty Rating | 25 HP | 50 HP | 7.5 HP |
| Heavy-Duty Rating | 20 HP | 40 HP | 7.5 HP |
| Frame | 3 | 4 | 2 |
| Input Configuration | AC input with DC terminals and precharge | ||
| Enclosure | IP20 / IP00, NEMA/UL Open Type | ||
| Cooling | Standard protection, forced air | ||
| EMC Configuration | Filtered; CM jumper installed (preferred) | ||
| Dynamic Braking | DB transistor | ||
| Operator Interface | Blank; no HIM | ||
| Approx. Dimensions (W × H × D) | 190 × 454 × 212 mm | 222 × 474 × 212 mm | 134.5 × 424.2 × 212 mm |
| Approx. Weight | 11 kg (25 lb) | 16 kg (35 lb) | 8 kg (18 lb) |
The three catalog numbers share one functional chain: incoming AC feeds the drive power section, the DC link supports conversion and braking, and embedded I/O carries local commands and status.
20F11ND034JA0NNNNN, 20F11ND065JA0NNNNN and 20F11ND011JA0NNNNN receive fixed-frequency three-phase AC power at the line side. Their power sections rectify that supply, maintain the internal DC link and synthesize controlled three-phase output for motor speed and torque control.
The DC terminals on 20F11ND034JA0NNNNN, 20F11ND065JA0NNNNN and 20F11ND011JA0NNNNN provide access to the drive DC link. During dynamic braking, the built-in DB transistor switches a correctly selected external resistor circuit so regenerated motor energy can be dissipated outside the drive.
Embedded I/O gives 20F11ND034JA0NNNNN, 20F11ND065JA0NNNNN and 20F11ND011JA0NNNNN a direct path for field commands and drive status without requiring a separate I/O option for the basic control interface. Because the shipped catalog configuration has no HIM, the commissioning plan must provide the intended configuration and operator-access method separately.
Frame 2, Frame 3 and Frame 4 use different mounting outlines, horizontal widths and frame-specific service parts.
20F11ND011JA0NNNNN uses the Frame 2 outline, 20F11ND034JA0NNNNN uses Frame 3 and 20F11ND065JA0NNNNN uses Frame 4. Panel drilling, horizontal width and cable approach must follow the selected frame rather than the common PowerFlex 753 family name.
All three catalog numbers use forced-air cooling in an open-type construction. The enclosure layout therefore has to preserve the required airflow space and access to the fan, power terminals and control area after adjacent equipment is installed.
The three frames do not share every service and enclosure accessory: 20F11ND011JA0NNNNN uses Frame 2 parts, 20F11ND034JA0NNNNN uses the Frame 3 selection, and 20F11ND065JA0NNNNN requires Frame 4 parts. Match every fan, EMC or enclosure accessory to the frame code before ordering.
Use the duty class that matches the application's overload demand, not the shared voltage class alone. The 34 A and 65 A variants use lower motor-power ratings for heavy duty, while the 11 A Frame 2 variant remains 7.5 HP in both duty columns.
No. The three catalog numbers use Frame 3, Frame 4 and Frame 2 respectively, so their widths, mounting locations and frame-specific support parts are different.
The ordered drive does not include a local keypad/display. Provide the intended compatible configuration and operator-access method before energizing so parameters and status can be accessed without assuming a HIM is supplied in the box.
The DC terminals expose the internal DC-link path, while the DB transistor switches the dynamic-braking branch. Any external braking resistor must be selected and wired for the specific drive rating and application energy rather than treated as one common accessory across all three frames.
All three catalog configurations are filtered with the CM jumper installed as the preferred arrangement. Review the facility grounding and power-distribution system before changing that connection, because the jumper decision belongs to the installed power system rather than the motor rating alone.
Moore Automation supports industrial automation sourcing through catalog-number review, quotation preparation, order coordination and shipment follow-up. Enquiries are handled against the complete requested model and quantity so the response remains tied to the customer's equipment list.
