01
Two analog inputs
Each input can be configured for voltage or current and scaled independently for its assigned reference.

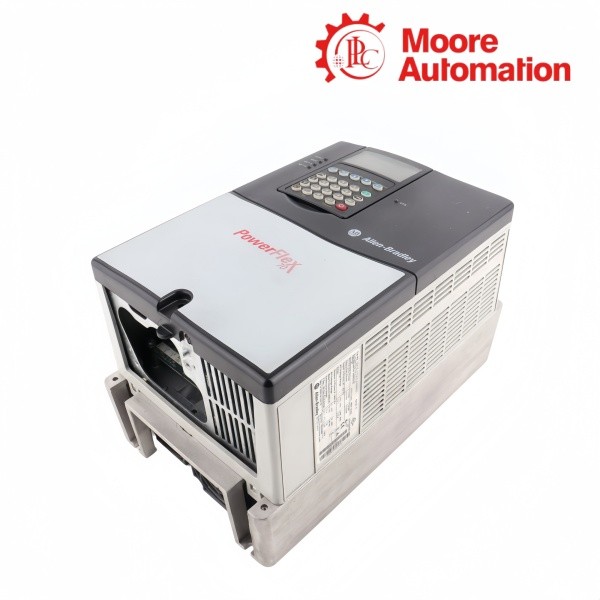

Allen-Bradley 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 PowerFlex 70 AC Drives
400 VAC · Frame C/D · Filtered
Product Description
Allen-Bradley 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 are 400 VAC three-phase PowerFlex 70 drives covering 15.4 A, 22 A and 30 A continuous output. The 15.4 A unit uses Frame C, while the two higher-current catalog numbers move into Frame D.
Command wiring for 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 reaches the standard-control analog and digital inputs, where scaling and function assignments define the requested speed and run state. The power stage then supplies 7.5 kW, 11 kW or 15 kW in normal-duty service.
The complete 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 codes include a second-environment CE filter, brake IGBT, conformal coating and panel-mount IP20 / NEMA Type 1 enclosure. They omit a HIM and internal communication module, preserving those as separately selected system elements.
Technical Specifications
| Technical Item | 20AC015A0AYNANC0 | 20AC022A0AYNANC0 | 20AC030A0AYNANC0 |
|---|---|---|---|
| Brand | Allen-Bradley | ||
| Product Type | Adjustable-frequency AC drive | ||
| Brand Country | United States | ||
| Product Series | PowerFlex 70 | ||
| Input Voltage | 400 VAC, 3 PH | ||
| Continuous Output Current | 15.4 Amps | 22 Amps | 30 Amps |
| Overload Current | Output Amps: 15.4A Cont, 17.2A 1 Min, 23.1A 3 Sec | Output Amps: 22A Cont, 24.2A 1 Min, 33A 3 Sec | Output Amps: 30A Cont, 33A 1 Min, 45A 3 Sec |
| Motor Rating | 7.5 kW normal duty / 5.5 kW heavy duty | 11 kW normal duty / 7.5 kW heavy duty | 15 kW normal duty / 11 kW heavy duty |
| Frame Size | Frame C | Frame D | Frame D |
| Enclosure | Panel Mount - IP20 / NEMA Type 1, with conformal coating | ||
| Control and I/O | Standard control, 24 V I/O | ||
| Feedback Option | No feedback | ||
| Brake IGBT | Brake IGBT | ||
| EMC Filtering | Second Environment Filter per CE EMC directive (89/336/EEC) | ||
| Human Interface Module | No HIM (Blank) | ||
| Internal Communication Module | No Communication Module | ||
| Mounting | Panel mount, upright | ||
| Coating | Conformal coating | ||
Monitoring and Control: 400 V Command Channels
20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 organize wired command, reference and status values within the standard-control I/O file.
02
Six digital inputs
Enable, start, direction, preset selection and other defined functions are assigned through parameters.
03
Drive status values
Output frequency, output current, DC bus voltage and digital I/O state are available as monitored parameters.
Key Features: Filtered Brake-Ready Hardware
The shared hardware options of 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 remain constant across the three 400 V power steps.
Second-environment filter
The A emission code supplies the CE filter arrangement used by all three configurations.
Brake transistor
An internal brake IGBT supplies the switching element for a separately sized braking resistor.
Coated open enclosure
Conformal coating is paired with the IP20 / NEMA Type 1 panel enclosure.
Frequently Asked Questions
What prevents mixing 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 in one mechanical layout without review?
The 15.4 A model is Frame C, while the 22 A and 30 A units are Frame D, so drilling and thermal space are not identical.
How should the 400 V motor rating be matched to 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0?
Match the exact normal-duty or heavy-duty kW requirement to the selected model rather than choosing only by family name.
Can 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 accept both voltage and current speed commands?
Yes. The standard-control analog inputs can be configured for the supported voltage or current mode and then scaled in parameters.
Why might 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 remain stopped when a run input is active?
Enable, stop and other assigned digital inputs can inhibit operation; their terminal states and function assignments must be checked together.
Is a braking resistor already inside 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0?
No. These models include the brake transistor, while the resistor is an external component chosen for the application duty.
What is needed to put 20AC015A0AYNANC0 / 20AC022A0AYNANC0 / 20AC030A0AYNANC0 on a plant network?
A compatible communication option is required because no internal communication module is part of these exact catalog numbers.
