Memory position
PLC-3 memory hardware is separate from processor and scanner positions.
Allen-Bradley · PLC-3 EEPROM memory module

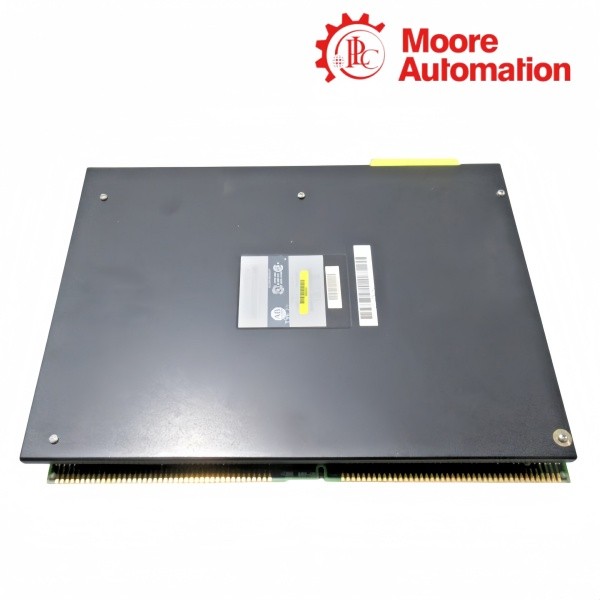

Allen-Bradley 1775-MEF PLC-3 Memory Module
EEPROM memory hardware listed for a PLC-3 controller chassis.
01
System Overview
In the PLC-3 system component list, 1775-MEF is identified as an EEPROM memory module. It occupies the memory role in a PLC-3 assembly, where the controller chassis, power supply, processor, scanner and I/O hardware each have separate positions.
The official PLC-3 quick-start record groups 1775-MEF with the 1775-ME4, 1775-ME8, 1775-MEA and 1775-MED memory-module catalog numbers. That grouping describes a common PLC-3 memory-module category; it does not assign the same capacity or revision characteristics to every catalog number.
The memory module is installed as part of the processor-side PLC-3 hardware arrangement. It is distinct from the 1775-S4A/S4B/S5/SR5/SR scanner-module positions and from the 1771-IE I/O module position listed in the same documented build.
For a configuration record, use the complete 1775-MEF catalog number together with the installed PLC-3 chassis and processor identification. The reviewed quick-start source lists the product family and module function, but does not state a capacity value for this particular catalog number.
02
Configuration Reference
- Brand
- Allen-Bradley
- Product type
- PLC-3 EEPROM memory module
- System family
- PLC-3
- Country of Origin
- Not stated in the reviewed official source
- Related memory group
- 1775-ME4, 1775-ME8, 1775-MEA, 1775-MED, 1775-MEF
- Processor chassis context
- 1775-A1, 1775-A2 or 1775-A4B
- Power supply context
- 1775-P1 or 1775-P3 for PLC-3
- Scanner-module context
- 1775-S4A, S4B, S5, SR5 or SR
- I/O context
- 1771-IE I/O modules
03
PLC-3 Assembly Context
Documented system role
PLC-3 Assembly Context
The source figure is a cropped official PLC-3 system-component record. It places memory modules in the same documented controller build as the power supply, chassis, processor, scanner and I/O components.
The image is an official technical-diagram crop with non-diagram page furniture removed. Selecting it opens the complete embedded diagram; its placement is fixed to the adjacent content height and does not stretch the layout.
04
Configuration Notes
Shared family listing
The quick-start source lists five PLC-3 EEPROM memory catalog numbers together.
Record boundary
No capacity claim is published here for this exact number.
05
Support Questions
Our PLC-3 parts list says only ‘memory module’; how do we stop a 1775-MEF request being mistaken for a scanner or I/O card?
For 1775-MEF, the official PLC-3 record identifies it as an EEPROM memory module, while scanners and 1771-IE I/O modules are separate component categories.
A controller restart investigation needs the correct memory-family reference; which numbers share the documented 1775-MEF group?
For 1775-MEF, the reviewed source groups it with 1775-ME4, 1775-ME8, 1775-MEA and 1775-MED as PLC-3 EEPROM memory modules.
Can we quote a memory capacity for 1775-MEF from a neighbouring ME catalog number?
For 1775-MEF, the reviewed official quick-start source does not state a capacity for this exact number, so a capacity must not be copied from another ME variant.
Where does 1775-MEF fit when a PLC-3 chassis is being rebuilt?
For 1775-MEF, it is a processor-side PLC-3 memory-module component, separate from the 1775-P1/P3 supply and 1775-S-series scanner roles.
Why is the full 1775-MEF number needed on a replacement record?
For 1775-MEF, MEF is one named member of a multi-number EEPROM family, so the complete suffix-bearing catalog number avoids an ambiguous memory-module request.
What should be checked before substituting 1775-MEF in an existing controller?
For 1775-MEF, compare the full catalog number with the installed PLC-3 chassis and processor record; the reviewed source establishes the family role but not a universal capacity or revision equivalence.
