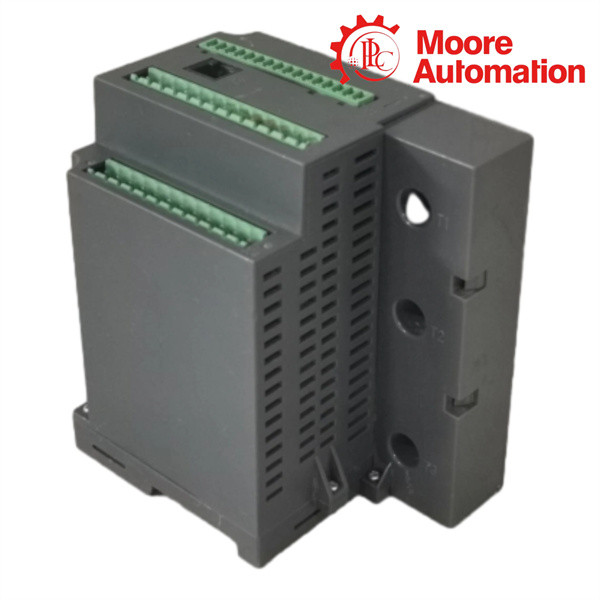

ABB M102-M Motor Control and Protection Unit
Modbus RTU motor control and protection unit with current and voltage measurement for 0.24-63 A applications.
Product Overview
Integrated motor control, protection and measurement
ABB M102-M is the Modbus RTU version of the M102 motor control and protection unit. It combines current and voltage measurement with control, protection, alarm, trip and operating-statistics functions.
The integrated current-transformer range is 0.24-63 A. Official ordering options include 24 Vdc, 110 Vac and 240 Vac supply variants, so the supply must be selected from the complete order number rather than inferred from M102-M alone.

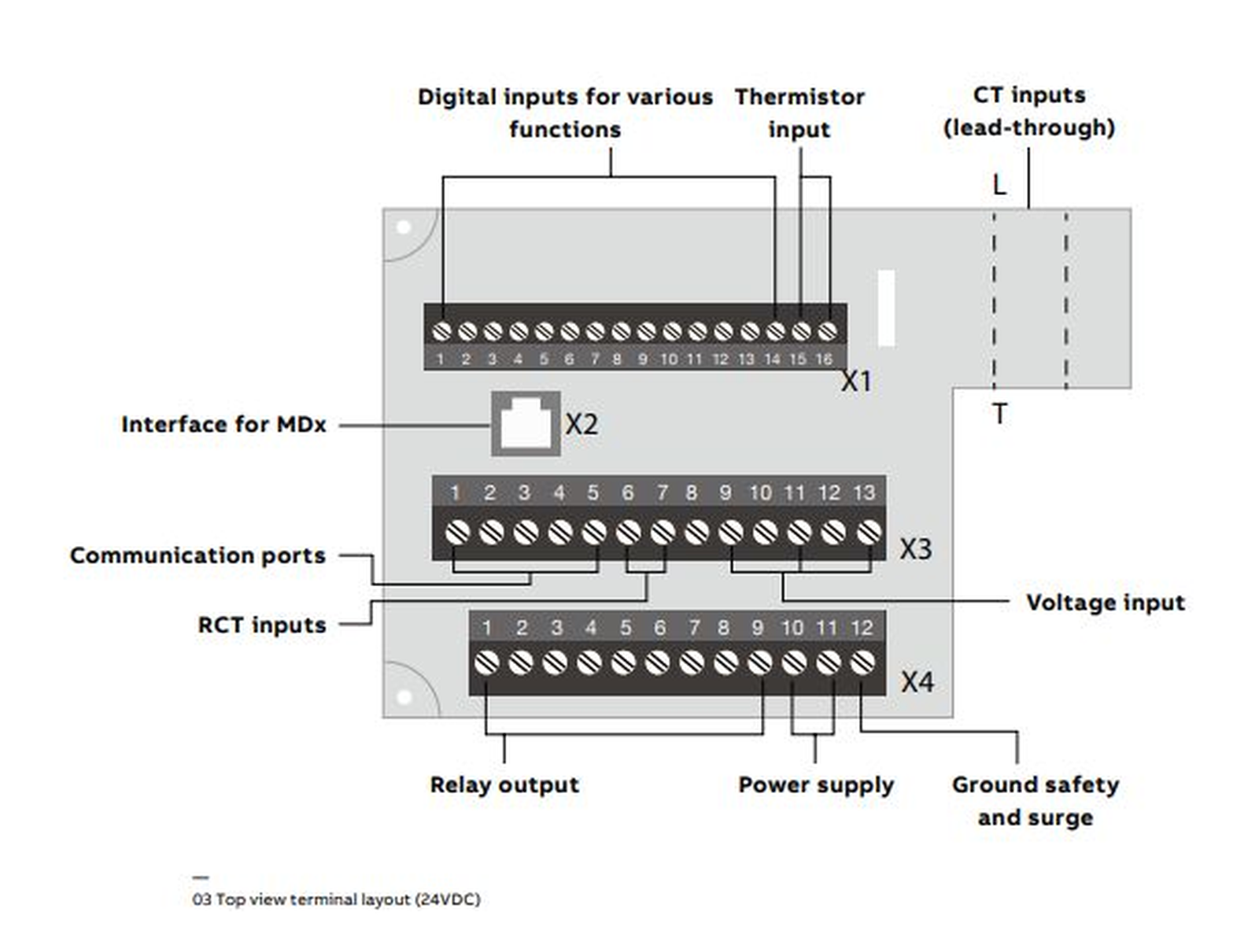

Official ABB M10x 24 VDC top-view terminal layout.
Product Specifications
Official identification and technical data
| Brand | ABB |
|---|---|
| Model | M102-M |
| Product family | M10x |
| Communication | Modbus RTU |
| Integrated current range | 0.24-63 A |
| Measurement basis | Current and voltage |
| Mounting | DIN rail; screw-mounting accessories for vertical installation |
| Available supply variants | 24 Vdc, 110 Vac or 240 Vac |
| Supply selection | Defined by the complete ABB order number |
Product Functions
Motor control, protection and plant information
Control modes
Official drive types include direct-on-line, reversing, star-delta, two-speed, autotransformer and soft-starter arrangements.
Protection functions
M102 includes current- and voltage-related protection functions.
Monitoring
Running values, alarms, trips and maintenance information are available through the M10x system.
Modbus communication
The -M version connects through Modbus RTU.
Installation Highlights
Current range and supply-variant selection
Integrated CT range
The main unit covers 0.24-63 A; larger motor ratings use interposing current transformers.
Select the full variant
Choose the communication, supply and accessory combination from the official order number.
FAQ
ABB M102-M technical questions
What communication protocol does ABB M102-M use?
M102-M is the Modbus RTU version of the M102.
What current range is integrated?
The main unit has an integrated 0.24-63 A current-transformer range.
Does M102-M measure voltage?
Yes. M102 provides current and voltage measurement and related protection functions.
Which supply voltage does M102-M require?
ABB lists 24 Vdc, 110 Vac and 240 Vac variants; the complete order number identifies the selected version.
Which operator panel is used with M102-M?
The official ordering guide lists MD21 and MD31 operator panels for M102-M.
