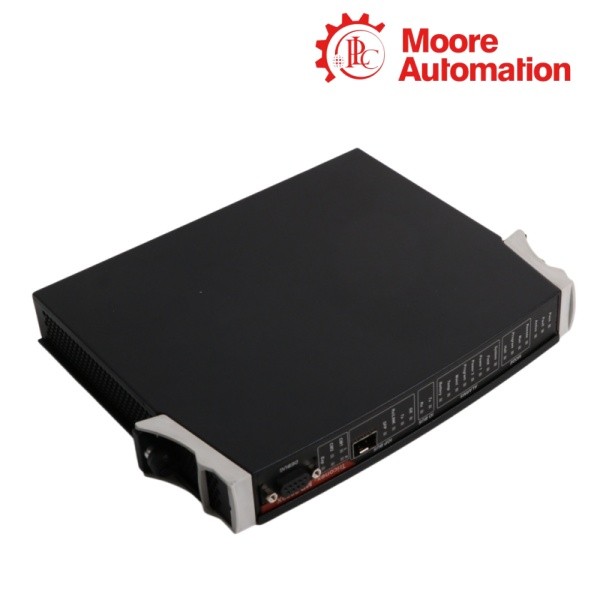

Triconex 4610 / 4610X are Unified Communication Modules that place external communications beside the main processors in two Tricon controller generations. The 4610 serves the Tricon v9-v11 platform, while the 4610X occupies a communication position in the 8120X Tricon CX main chassis. In both systems, the module's main responsibility is to exchange controller data with serial hosts, safety-network nodes and the control-network path without moving those interfaces onto a main processor.

Through their isolated serial ports, Triconex 4610 / 4610X carry supported RS-232 or RS-485 messages to the module processor, while the NET interfaces carry Ethernet traffic on a separate physical path. A dedicated fiber connection handles the control network, and the chassis communication bus links the module back to the installed main processors. This separation keeps serial wiring, safety-network media and control-network fiber assigned to different connectors and destinations.

Selection between Triconex 4610 / 4610X follows the installed chassis and the required network medium. The 4610 belongs to the enhanced-performance Tricon chassis and uses the earlier fixed fiber interface arrangement; the 4610X belongs to the 8120X main chassis and accepts the Tricon CX copper or SFP network arrangement. The complete model therefore determines both the backplane connection and the front-panel cable set.
