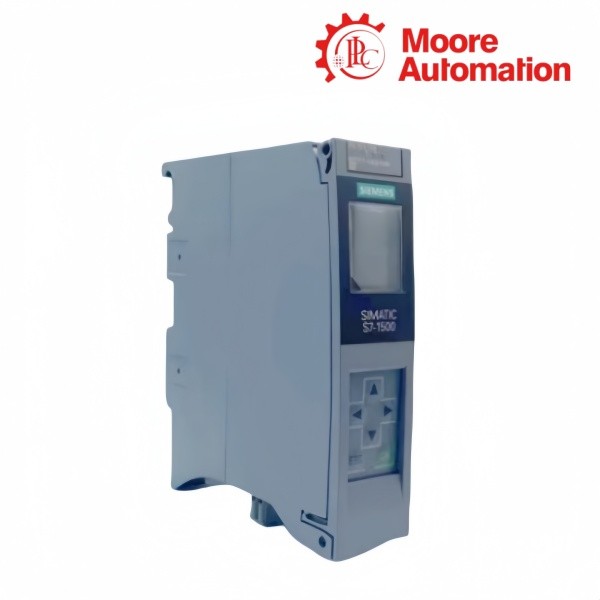

Copy| Product Name | Siemens 6ES7511-1TK01-0AB0 | SIMATIC S7-1500T Technology CPU |
| Item NO. | 2927188 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | SIEMENS |
| Brand | SIEMENS |
| Creation Time | 2026-10-26 |
Technology CPU with integrated motion-control resources and one PROFINET IRT interface.
Siemens 6ES7511-1TK01-0AB0 is a SIMATIC S7-1500T CPU 1511T-1 PN central processing unit supplied as a spare-part article. It combines 225 KB of program work memory, 1 MB of data work memory and technology functions for positioning, gearing, cam and kinematics tasks in one 35 mm-wide CPU.
For the field network, Siemens 6ES7511-1TK01-0AB0 provides one PROFINET IRT interface with an integrated two-port switch. The controller can run distributed isochronous operation with a minimum 625 µs OB 6x cycle, while central isochronous operation uses a minimum 1 ms cycle; the project, drive clocks and I/O update times must therefore be coordinated rather than configured independently.
During commissioning, Siemens 6ES7511-1TK01-0AB0 requires a SIMATIC Memory Card and a 24 V DC supply within 19.2–28.8 V. Its 3.45 cm display, six keys and mode selector provide local status and control access, while the hardware configuration and motion objects remain in the STEP 7 TIA Portal project.
| Technical Item | Value |
|---|---|
| Brand | Siemens |
| Model | 6ES7511-1TK01-0AB0 |
| Product Name | SIMATIC S7-1500T CPU 1511T-1 PN |
| Country | Germany |
| Product Status | Spare-part article |
| HW Functional Status | FS04 |
| Firmware Version | V2.9 |
| Program Work Memory | 225 KB |
| Data Work Memory | 1 MB |
| PROFINET Interface | IRT with integrated 2-port switch |
| Bit Operation Time | 60 ns typical |
| Isochronous Operation | Distributed 625 µs minimum; central 1 ms minimum |
| Supply Voltage | 24 V DC; permissible range 19.2–28.8 V |
| Rated Current | 0.7 A |
| Maximum Inrush Current | 1.9 A |
| Backplane Bus Infeed | 10 W |
| Typical Power Loss | 5.7 W |
| Display and Controls | 3.45 cm display, 6 keys and mode selector |
| Memory Card | SIMATIC Memory Card required |
| Dimensions (W × H × D) | 35 × 147 × 129 mm |
| Approximate Weight | 430 g |
Insert Siemens 6ES7511-1TK01-0AB0 with the supported firmware version, assign the PROFINET device name and network addresses, and add the distributed I/O and drives in their installed order. Confirm that the SIMATIC Memory Card contains the intended load project before downloading to a replacement CPU.
For Siemens 6ES7511-1TK01-0AB0, create the required positioning, synchronous, cam or kinematics technology objects and link each object to the correct drive telegram. Define units, limits, encoder relationships and homing behavior before enabling motion so a network connection is not mistaken for a commissioned axis.
Match the PROFINET IRT send clock, distributed I/O update time and technology interrupt used by Siemens 6ES7511-1TK01-0AB0. Compile the complete hardware and software configuration, download it, acknowledge startup diagnostics and test one axis at controlled speed before releasing coordinated motion.
Check the display and LEDs on Siemens 6ES7511-1TK01-0AB0 before changing the program. Record whether the controller is in RUN, STOP or startup, open the displayed diagnostic message and verify cabinet temperature and supply conditions so a local hardware condition is not hidden by later software changes.
In the TIA Portal project for Siemens 6ES7511-1TK01-0AB0, review the technology-object state, drive communication, axis error, safety release and application enable conditions. A healthy PROFINET connection confirms data exchange but does not confirm that every permission required for movement is present.
Apply the display and controller access levels of Siemens 6ES7511-1TK01-0AB0 so operating staff can view status while authorized engineers retain download and configuration rights. Preserve the project, firmware, memory-card image and access settings together before replacement or recovery work.
Check the SIMATIC Memory Card, firmware-compatible hardware configuration and startup diagnostics for Siemens 6ES7511-1TK01-0AB0. A spare CPU without the intended card contents or matching project cannot reconstruct the original controller state by itself.
For Siemens 6ES7511-1TK01-0AB0, confirm that the drive telegram, technology-object assignment, safety release and axis enable conditions all agree. Network connectivity alone does not prove that the configured motion object is ready.
Compare the PROFINET IRT send clock, distributed I/O synchronization and OB 6x cycle configured for Siemens 6ES7511-1TK01-0AB0. A cycle below the supported boundary or one unsynchronized device can break the timing chain.
The display on Siemens 6ES7511-1TK01-0AB0 can switch off outside its permitted display temperature while the CPU LEDs continue reporting state. Check cabinet temperature and CPU diagnostics before treating the display as failed.
Identify whether Siemens 6ES7511-1TK01-0AB0 is protected at the display, CPU access level, block level or by copy protection. The correct authorized project and credentials are required; changing network settings does not remove project protection.
Keep the Siemens 6ES7511-1TK01-0AB0 project version, firmware, memory-card image, PROFINET device assignments, technology-object parameters, drive telegrams and access settings together. These records control both the PLC and motion behavior after replacement.
