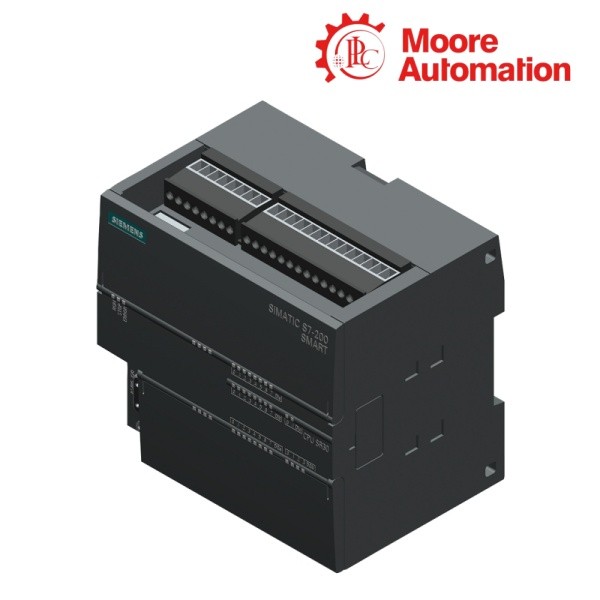

Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 | S7-200 SMART SR30 / SR40 / SR60 CPUs

Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 | S7-200 SMART SR30 / SR40 / SR60 CPUs Item NO.: 2926356

Write a Review
US$ 1.00
Quantity
Stock ( 28 )
Add to Cart
Inquiry

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
Request Price & AvailabilitySend the part number and quantity. Our team will confirm stock, condition, lead time and the best quotation.
  • MOQ: 1 piece
  • International shipping
  • 1-year warranty on eligible items
  • Fast response during business hours
Product Name Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 | S7-200 SMART SR30 / SR40 / SR60 CPUs
Item NO. 2926356
Weight 0.1 kg = 0.2205 lb = 3.5274 oz
Category SIEMENS
Brand SIEMENS
Creation Time 2026-10-23

Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 | S7-200 SMART SR30 / SR40 / SR60 CPUs

Siemens · SIMATIC S7-200 SMART

Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 | S7-200 SMART SR30 / SR40 / SR60 CPUs

SECTION 01

Product Introduction

Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 are SIMATIC S7-200 SMART AC/DC/Relay CPUs that combine an AC-powered controller, 24 V DC digital inputs and relay outputs. The order numbers select thirty, forty or sixty integrated digital points while retaining the same modular SR architecture.

As the point count rises, Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 increase program and data memory from 18 KB / 16 KB to 24 KB / 20 KB and 30 KB / 24 KB. Each CPU can add six expansion modules and one signal board, so the local I/O size and the right-side module plan can be considered together.

For plant communication, Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 provide one 10/100 Mbit/s PROFINET interface and one RS485 interface. Ethernet supports programming, HMI and configured controller communication, while the isolated serial port supports system protocols or freeport operation from 1,200 to 115,200 bit/s.

SECTION 02

Technical Information

Technical dossier 6ES7288-1SR30-0AA1 6ES7288-1SR40-0AA1 6ES7288-1SR60-0AA1
Brand Siemens
Product Type CPU SR30 AC/DC/Relay CPU SR40 AC/DC/Relay CPU SR60 AC/DC/Relay
Brand Country Germany
Dimensions (W × H × D) 110 × 100 × 81 mm 125 × 100 × 81 mm 175 × 100 × 81 mm
Weight 435 g 441.3 g 611.5 g
Power Dissipation 14 W 23 W 25 W
Program / Data / Retentive Memory 18 KB / 16 KB / 12 KB 24 KB / 20 KB / 12 KB 30 KB / 24 KB / 12 KB
Integrated Digital I/O 18 inputs / 12 relay outputs 24 inputs / 16 relay outputs 36 inputs / 24 relay outputs
Expansion Capacity 6 expansion modules; 1 signal board
5 V Expansion-Bus Supply 1,400 mA maximum
24 V Sensor Supply 300 mA maximum
PROFINET / Serial 1 × 10/100 Mbit/s; 1 × RS485
High-Speed Counters 6
Pulse Outputs 3 at 100 kHz; relay-output use not recommended
SECTION 03

Product Functions

Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 scale one SR control architecture across three onboard I/O densities.

SR30 machine cell›SR40 mid-range panel›SR60 high-density base
01

SR30 machine cell

Eighteen inputs and twelve relay outputs suit a thirty-point cabinet while preserving the full SR expansion path.

02

SR40 mid-range panel

Twenty-four inputs and sixteen relay outputs increase fixed wiring capacity without changing the engineering family.

03

SR60 high-density base

Thirty-six inputs and twenty-four relay outputs reduce the number of external digital modules needed in a larger local station.

SECTION 04

Communication and Connectivity

Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 connect local field wiring, Ethernet devices, serial equipment and right-side modules through separate resources.

01

Ethernet device path

One PROFINET port carries programming, HMI and supported controller or I-Device traffic without consuming the RS485 channel.

02

Independent serial link

The RS485 interface retains its own address, baud rate and protocol settings for a separate field or freeport network.

03

Backplane power budget

Up to six expansion modules share the 1,400 mA 5 V bus allowance, so their current values are totaled before the cabinet is wired.

SECTION 05

Frequently Asked Questions

Why can a project for Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 show address conflicts after changing CPU size?

Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 use different onboard point counts, so downstream I/O addresses and terminal references must be reconciled after a hardware change. Select the exact installed CPU and rebuild the address plan before downloading.

How should expansion power be checked for Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1?

For Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1, add the 5 V bus demand of every expansion module and keep the sum within 1,400 mA. Calculate field and sensor current separately because the 300 mA sensor output is not the expansion-bus supply.

Why can relay LEDs switch while loads remain off on Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1?

The relay contacts on Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 do not create load voltage. Verify the external load source, the correct common, the return path and group-current limits before replacing the CPU.

Can Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 run PROFINET and RS485 communication together?

Yes. Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 provide separate Ethernet and RS485 hardware, but each network still requires its own addresses, protocol settings and cable rules.

What should be reviewed before replacing Siemens 6ES7288-1SR30-0AA1 with 6ES7288-1SR40-0AA1 or 6ES7288-1SR60-0AA1?

A change among Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 affects enclosure width, onboard I/O, memory and terminal allocation. Confirm spare DIN-rail space, program hardware selection and every field-wire destination rather than treating the larger CPU as a pin-compatible swap.

Why does an HMI reach one of Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1 but not exchange values?

Network reachability alone does not confirm a valid application connection to Siemens 6ES7288-1SR30-0AA1 / 6ES7288-1SR40-0AA1 / 6ES7288-1SR60-0AA1. Check that the HMI targets the exact CPU, uses matching IP parameters and reads addresses that exist in the downloaded program.
