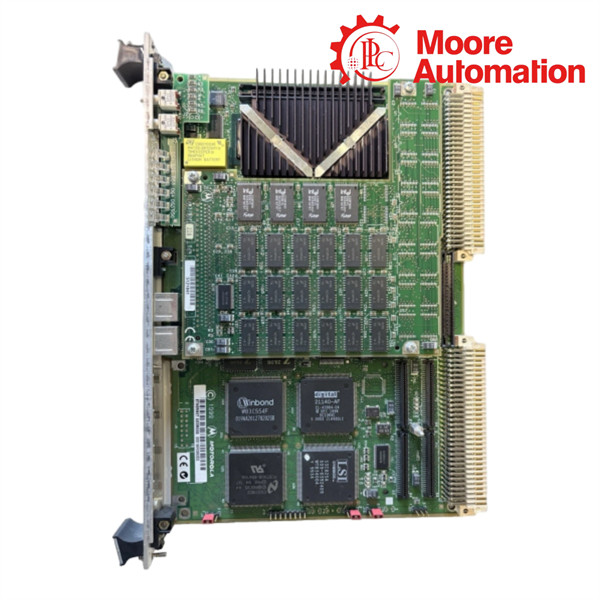

Copy| Product Name | Motorola MVME2700-1331 + MVME761 VME SBC and Transition Module Set |
| Item NO. | 2899572 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | MOTOROLA |
| Brand | MOTOROLA |
| Creation Time | 2026-08-24 |
Motorola MVME2700-1331 + MVME761 VME SBC and Transition Module Set with 266 MHz MPC750 PowerPC, 32MB ECC DRAM and documented VME, expansion and rear-I/O resources.
Motorola MVME2700-1331 + MVME761 is a vme sbc and transition module set built around the MPC750 PowerPC and 32MB ECC DRAM. Its documented architecture connects processor and memory resources to PCI expansion and the VMEbus.
MVME2700-1331 and MVME761 are presented as a matched main-board and rear-I/O arrangement.
| Product type | VME SBC and Transition Module Set |
|---|---|
| Processor | MPC750 PowerPC |
| Clock frequency | 266 MHz |
| Main memory | 32MB ECC DRAM |
| L2 cache | 1MB L2 |
| Flash memory | 5MB |
| Rear I/O mode | MVME761-compatible |
|---|---|
| PCI local bus | 33 MHz, 32/64-bit |
| PMC expansion | One IEEE P1386.1 PMC position |
| VME interface | Universe PCI-to-VME bridge |
| Serial I/O | Two asynchronous and two synchronous/asynchronous serial ports |
| Ethernet | 10Base-T / 100Base-TX through transition module |
| SCSI | 8/16-bit single-ended Fast SCSI-2 |
| NVRAM / RTC | 8KB NVRAM with real-time clock and battery backup |
| Main board | MVME2700-1331 |
|---|---|
| Product type | VME single board computer |
| Processor | MPC750 PowerPC |
| Clock frequency | 266 MHz |
| Main memory | 32MB ECC DRAM |
| Rear I/O mode | MVME761-compatible |
| PCI local bus | 33 MHz, 32/64-bit |
| PMC expansion | One IEEE P1386.1 PMC position |
| Module type | Rear transition module |
|---|---|
| Asynchronous serial | Two DB-9 connectors |
| Synchronous/asynchronous serial | Two HD-26 connectors; interface set by SIM selection |
| Ethernet | RJ-45 10Base-T / 100Base-TX |
| Parallel port | HD-36 IEEE 1284-I connector |
| System connection | P2 adapter and cable |
MVME2700-1331 + MVME761 connects the PowerPC processor and ECC memory to PCI resources through the host bridge.
MVME2700-1331 + MVME761 uses its PCI-to-VME bridge for local and backplane transactions.
MVME2700-1331 + MVME761 routes documented serial, Ethernet, parallel and SCSI signals through MVME761.
Set jumpers, PMC resources and rear-I/O hardware for the exact MVME2700-1331 + MVME761 ordering designation.
Use the documented firmware parameters to initialize memory, PCI and VMEbus resources on MVME2700-1331 + MVME761.
Use the board status indicators, reset/abort controls and firmware diagnostics documented for MVME2700-1331 + MVME761.
MVME2700-1331 + MVME761 uses the MPC750 PowerPC operating at 266 MHz.
MVME2700-1331 + MVME761 is documented with 32MB ECC DRAM.
MVME2700-1331 + MVME761 connects local PCI resources to the VMEbus through the documented PCI-to-VME bridge architecture.
MVME2700-1331 + MVME761 provides a PMC position and the board-level expansion resources documented for the MVME2600/MVME2700 platform.
MVME2700-1331 is used with the MVME761 transition module and the matching P2 adapter/cable arrangement documented for that I/O mode.
