Processing Platform
MVME2304-0121 operates with a 333 MHz MPC604 PowerPC and 32MB ECC DRAM.
MOTOROLA VME INDUSTRIAL COMPUTING

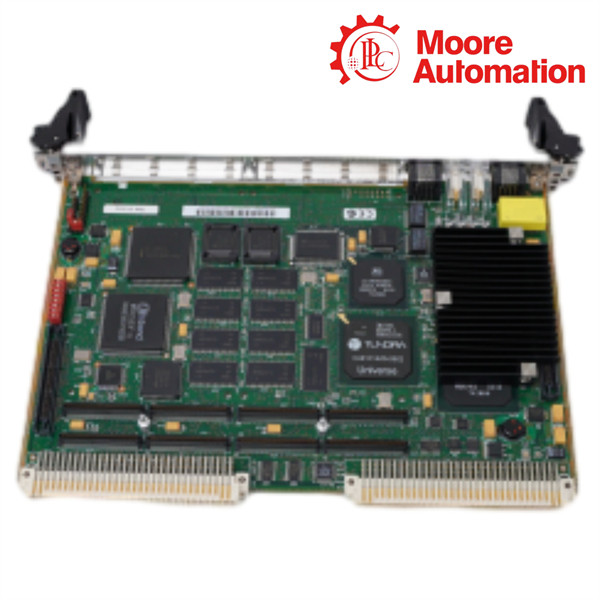

Motorola MVME2304-0121 VME Processor Module
The Motorola MVME2304-0121 is a 6U VME processor module based on the 333 MHz MPC604 PowerPC.
01 / PRODUCT PROFILE
Product Profile: Motorola MVME2304-0121
The Motorola MVME2304-0121 is a 6U VME processor module based on the 333 MHz MPC604 PowerPC. The exact MVME2304-0121 configuration provides 32MB ECC DRAM, PCI local-bus architecture, VMEbus connectivity and two PMC expansion positions.
The full MVME2304-0121 designation must be retained when matching processor speed, memory protection and installed interface details.
Exact configuration
MPC604 PowerPC · 333 MHz
32MB ECC DRAM
VME Processor Module
02 / TECHNICAL DATA
Technical Data for MVME2304-0121
| Product type | VME Processor Module |
|---|---|
| Processor | MPC604 PowerPC at 333 MHz |
| Memory | 32MB ECC DRAM |
| Expansion | Two PMC slots |
Detailed technical specifications
| Local bus | 32-bit PCI local bus at 33 MHz |
|---|---|
| PMC expansion | Two IEEE P1386.1-compatible PMC slots |
| VMEbus | VME64 extension; A16/A24/A32 and D8/D16/D32/D64 |
| Ethernet | 10Base-T / 100Base-TX front-panel RJ45 |
| Debug interface | Asynchronous EIA-232-D serial port on RJ45 |
| Nonvolatile storage | 8KB NVRAM with real-time clock and battery |
| Timers | Four 32-bit timers, one 16-bit timer and watchdog timer |
| Bridge architecture | Raven PCI bridge, Falcon memory controller and Universe VME interface |
03 / OPERATING CHARACTERISTICS
Operating Characteristics for MVME2304-0121
Data Movement
MVME2304-0121 coordinates processor, local memory, PCI resources and VMEbus transfers through the documented bridge architecture.
Service Interfaces
MVME2304-0121 includes Ethernet and an asynchronous serial debug interface for system communication and service access.
04 / TYPICAL APPLICATIONS
Typical Applications for MVME2304-0121
OEM VME Systems
MVME2304-0121 is documented for embedded OEM VME systems requiring PowerPC processing and modular I/O.
System Expansion
MVME2304-0121 supports expansion through its two PMC positions and VMEbus connection.
Development and Integration
MVME2304-0121 provides a board-level platform for VME application development, integration and maintenance.
05 / MODEL FAQ
Model FAQ for MVME2304-0121
What processor and memory configuration does MVME2304-0121 use?
MVME2304-0121 uses the 333 MHz MPC604 PowerPC with 32MB ECC DRAM.
What type of module is MVME2304-0121?
MVME2304-0121 is a Motorola vme processor module designed for a 6U VME system.
Which communication interfaces are documented for MVME2304-0121?
MVME2304-0121 includes 10Base-T/100Base-TX Ethernet and an asynchronous EIA-232-D debug interface.
What expansion resources are provided by MVME2304-0121?
MVME2304-0121 provides two IEEE P1386.1-compatible PMC expansion positions.
What information should be checked before ordering MVME2304-0121?
Before ordering MVME2304-0121, verify the complete model suffix, board label, hardware revision, memory configuration and required interfaces.
