Copy| Product Name | Motorola MVME162-212 VMEbus Embedded Controller |
| Item NO. | 2898066 |
| Weight | 0.17 kg = 0.3748 lb = 5.9966 oz |
| Category | MOTOROLA |
| Brand | MOTOROLA |
| Creation Time | 2026-08-20 |
Motorola VME Embedded Controller
A 25 MHz MVME162LX VMEbus embedded controller with 4MB parity DRAM, Ethernet and two IndustryPack interfaces.
Product Overview
A 25 MHz MVME162LX VMEbus embedded controller with 4MB parity DRAM, Ethernet and two IndustryPack interfaces.
The specification below follows the exact Motorola order designation and excludes family options that are not documented for this configuration.
Product Specifications
| Product family | MVME162LX |
|---|---|
| Processor | MC68LC040 |
| Processor clock | 25 MHz |
| DRAM | 4MB parity DRAM |
| Local SRAM / NVRAM | 128KB SRAM |
| Integrated I/O configuration | Ethernet; no SCSI |
| Serial interfaces | Four asynchronous EIA-232-D ports on RJ45 connectors |
| IndustryPack capacity | Two interfaces |
| Network interface | Ethernet |
| SCSI interface | Not fitted |
| Form factor | 6U VMEbus embedded controller |
| Flash memory | 1MB |
| Nonvolatile memory | 8K × 8 NVRAM and time-of-day clock with battery backup |
| Timers | Six 32-bit timers and watchdog timer when VMEbus is present |
| VMEbus addressing/data | A16/A24/A32 and D8/D16/D32; D64 block transfer on supported VMEbus models |
| Operating temperature | 0 to 70 °C exit air with forced-air cooling |
| Storage temperature | -40 to 85 °C |
| Relative humidity | 5 to 90%, non-condensing |
| Power, +5 V | 3.5 A typical; 4.5 A maximum |
| Power, +12 V | 100 mA maximum |
| Power, -12 V | 100 mA maximum |
| Board dimensions | 233 × 160 × 17 mm |
| With connectors/front panel | 262 × 188 × 20 mm |
Operating Functions

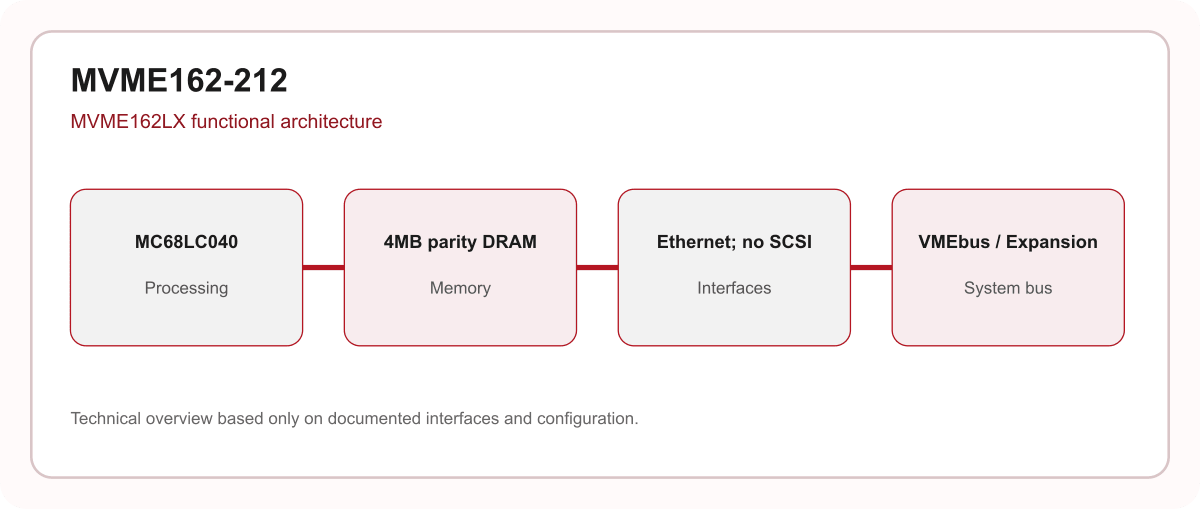

MVME162-212 combines the documented processor, local memory and on-board interfaces in one VMEbus controller. Its timers, nonvolatile resources and IndustryPack expansion operate within the board architecture defined by Motorola.
Serial interfaces: Four asynchronous EIA-232-D ports on RJ45 connectors. IndustryPack capacity: Two interfaces. Network interface: Ethernet.
Installation Highlights
Install MVME162-212 only with power removed. Confirm slot, airflow, serial-interface module and transition-module settings against the Motorola installation manual before applying power.
Match the complete MVME162-212 designation before installation. Processor, memory, Ethernet, SCSI and VMEbus options vary by order code.
Frequently Asked Questions
MVME162-212 uses the documented MC68LC040 processor configuration at 25 MHz.
MVME162-212 provides 4MB parity DRAM.
MVME162-212 is documented with Ethernet; no SCSI.
MVME162-212 is a MVME162LX embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
MVME162-212 should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
