Exact Hardware Configuration
MVME2301 combines MPC603 PowerPC, 16MB ECC DRAM and the documented board interfaces in one order-code configuration.
MOTOROLA VME INDUSTRIAL COMPUTING

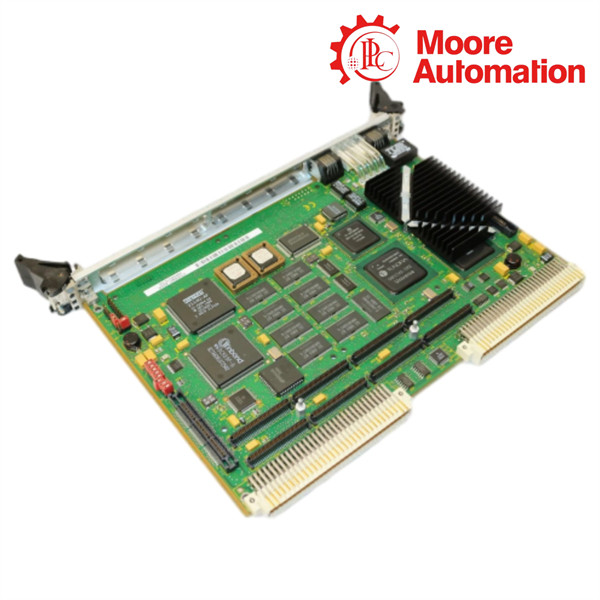

Motorola MVME2301 VME Processor Module
The Motorola MVME2301 is a 6U VME processor module based on the 200 MHz MPC603 PowerPC.
01 / PRODUCT INTRODUCTION
Product Introduction: Motorola MVME2301
The Motorola MVME2301 is a 6U VME processor module based on the 200 MHz MPC603 PowerPC. The exact MVME2301 configuration provides 16MB ECC DRAM, PCI local-bus architecture, VMEbus connectivity and two PMC expansion positions.
The full MVME2301 designation must be retained when matching processor speed, memory protection and installed interface details.
Exact configuration
MPC603 PowerPC · 200 MHz
16MB ECC DRAM
VME Processor Module
02 / HARDWARE DATA
Hardware Data for MVME2301
| Product type | VME Processor Module |
|---|---|
| Processor | MPC603 PowerPC at 200 MHz |
| Memory | 16MB ECC DRAM |
| Expansion | Two PMC slots |
Detailed technical specifications
| Local bus | 32-bit PCI local bus at 33 MHz |
|---|---|
| PMC expansion | Two IEEE P1386.1-compatible PMC slots |
| VMEbus | VME64 extension; A16/A24/A32 and D8/D16/D32/D64 |
| Ethernet | 10Base-T / 100Base-TX front-panel RJ45 |
| Debug interface | Asynchronous EIA-232-D serial port on RJ45 |
| Nonvolatile storage | 8KB NVRAM with real-time clock and battery |
| Timers | Four 32-bit timers, one 16-bit timer and watchdog timer |
| Bridge architecture | Raven PCI bridge, Falcon memory controller and Universe VME interface |
03 / KEY FEATURES
Key Features for MVME2301
Expansion Resources
MVME2301 provides two PMC expansion positions on its PCI local-bus architecture.
Board-Level Integration
MVME2301 consolidates processor, memory, bus control and communication interfaces on a 6U VME module.
04 / SYSTEM INTEGRATION
System Integration for MVME2301
Architecture
The MVME2301 connects its PowerPC processor and ECC memory to the PCI local bus through the Raven and Falcon architecture. The Universe interface bridges PCI transactions to VMEbus, while two PMC positions support modular I/O expansion.
Interface Planning
Use the MVME2301 connector and jumper documentation when mapping Ethernet, serial, SCSI or expansion I/O.
Configuration Control
Record the full MVME2301 suffix, hardware revision and installed expansion devices as part of the system configuration.
05 / FREQUENTLY ASKED QUESTIONS
Frequently Asked Questions for MVME2301
What processor and memory configuration does MVME2301 use?
MVME2301 uses the 200 MHz MPC603 PowerPC with 16MB ECC DRAM.
What type of module is MVME2301?
MVME2301 is a Motorola vme processor module designed for a 6U VME system.
Which communication interfaces are documented for MVME2301?
MVME2301 includes 10Base-T/100Base-TX Ethernet and an asynchronous EIA-232-D debug interface.
What expansion resources are provided by MVME2301?
MVME2301 provides two IEEE P1386.1-compatible PMC expansion positions.
What information should be checked before ordering MVME2301?
Before ordering MVME2301, verify the complete model suffix, board label, hardware revision, memory configuration and required interfaces.
