Home>OTHER PRODUCTS>Metrix ST5484E-121-0532-00 Seismic Velocity Transmitter

Metrix ST5484E-121-0532-00 Seismic Velocity Transmitter Item NO.: ST5484E-121-0532-00

Write a Review

US$ 1.00

Quantity: Stock ( 9999999 )

Loop-powered 4-20 mA seismic velocity transmitter with a 1.0 in/s derived-peak range, 2-pin terminal block and ATEX/UKEX intrinsic-safety approval.

Request Price & AvailabilitySend the part number and quantity. Our team will confirm stock, condition, lead time and the best quotation.

MOQ: 1 piece
International shipping
1-year warranty on eligible items
Fast response during business hours

Product Name	Metrix ST5484E-121-0532-00 Seismic Velocity Transmitter
Item NO.	ST5484E-121-0532-00
Weight	0.41 kg = 0.9039 lb = 14.4623 oz
Category	OTHER PRODUCTS
Creation Time	2026-08-17

Metrix / Machine Vibration Monitoring

Metrix ST5484E-121-0532-00 Seismic Velocity Transmitter

Loop-powered 4-20 mA seismic velocity transmitter with a 1.0 in/s derived-peak range, 2-pin terminal block and ATEX/UKEX intrinsic-safety approval.

Product Profile

Configured 4-20 mA casing-velocity measurement

Metrix ST5484E-121-0532-00 is a self-contained seismic velocity transmitter that combines a piezoelectric accelerometer, signal integrator, RMS detector and 4-20 mA signal conditioner in one package.

The complete ordering code defines a 1.0 in/s derived-peak range, 303 stainless-steel housing with M10 mounting stud, ATEX/UKEX intrinsic-safety approval, a 2-pin terminal block and the standard 2-1500 Hz passband.

Technical Data

Official data for ST5484E-121-0532-00

Brand	Metrix
Complete order code	ST5484E-121-0532-00
Product type	Seismic velocity 4-20 mA transmitter
Full-scale range	1.0 in/s (25.4 mm/s) derived peak
Amplitude detection	RMS detector, scaled RMS for derived-peak range
Housing and mounting stud	303 stainless steel; M10 x 1.25, 12 mm stud
Hazardous-area certification	ATEX/UKEX Ex ia IIC T4 Ga, intrinsically safe
Connection	2-pin terminal block, 2-wire
Signal output	4-20 mA proportional to velocity full scale

Supply voltage	11-29.6 V DC for intrinsically safe operation
Frequency passband	2-1500 Hz
Passband accuracy	±2.5%; ±4% at corner frequencies
Operating temperature	-40 to +100 °C
Humidity	95%, non-condensing for terminal-block version
Sensitive axis	Same as mounting-stud axis
Axis orientation	Any
Weight	0.9 lb (0.41 kg)

Key Features

Signal conditioning and field-wiring characteristics

Integrated measurement chain

A piezoelectric accelerometer, signal integrator, RMS detector and 4-20 mA conditioner are combined in one transmitter.

Polarity-independent loop wiring

Metrix IPT circuitry allows the loop supply to be connected without regard to polarity at the transmitter.

Exact hazardous-area option

Ordering option C=3 specifies ATEX/UKEX Ex ia IIC T4 Ga intrinsic-safety approval.

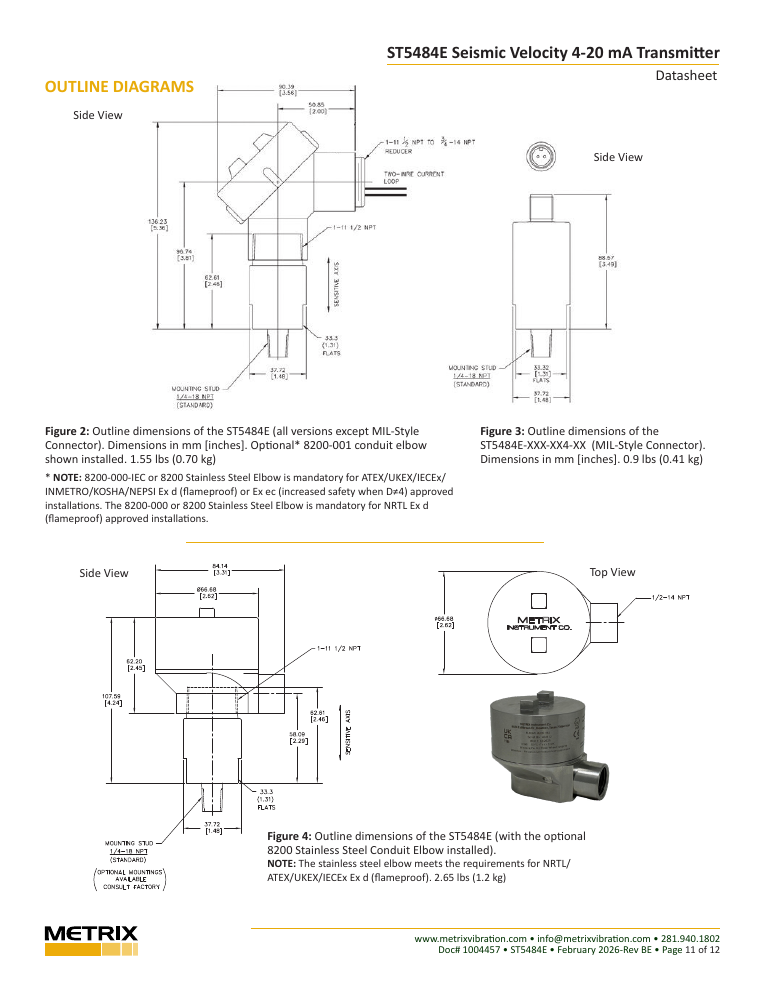

Metrix ST5484E-121-0532-00 official outline diagrams — Official Metrix ST5484E outline diagrams showing the transmitter and documented connector or conduit-elbow configurations.

Typical Applications

Machine casing and bearing-housing monitoring

Machine-case monitoring

The transmitter mounts directly on a machine case or bearing housing and converts casing velocity into a process signal.

Rolling-element bearing machinery

Metrix identifies general rotating and reciprocating machinery from 120 to 6,000 rpm as the application range for this seismic measurement approach.

Process-control integration

The proportional 4-20 mA output connects to compatible PLC, DCS and SCADA instrumentation for trending or alarming.

FAQ

Metrix ST5484E-121-0532-00 technical FAQ

What full-scale range does ST5484E-121-0532-00 use?

Ordering option 121 specifies 1.0 in/s (25.4 mm/s) derived peak.

Which electrical connection is supplied?

Option D=2 specifies a 2-pin terminal block with 2-wire 4-20 mA output.

What hazardous-area approval is identified by this code?

Option C=3 specifies ATEX/UKEX Ex ia IIC T4 Ga intrinsic-safety approval.

What is the configured frequency passband?

Options E=0 and F=0 specify the standard 2 Hz high-pass and 1500 Hz low-pass corners.

Which supply voltage applies to this intrinsically safe configuration?

The Metrix datasheet specifies 11-29.6 V DC for intrinsically safe operation.
