Meggitt Vibro-Meter CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111 is a VM600 modular CPU card variant group. The CPUM sits at the rack processing layer and handles data exchange between installed VM600 cards and configured external communication services.

For CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111, the physical interface arrangement is defined by the CPUM/IOCN card pair and the configuration loaded into the card. Ethernet and serial paths are exposed at their assigned front or rear connections rather than at the measurement card terminals.

The paired IOCN card provides the rear-side connection path for CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111. The CPU receives rack data through the backplane and sends the configured service through the selected external interface.

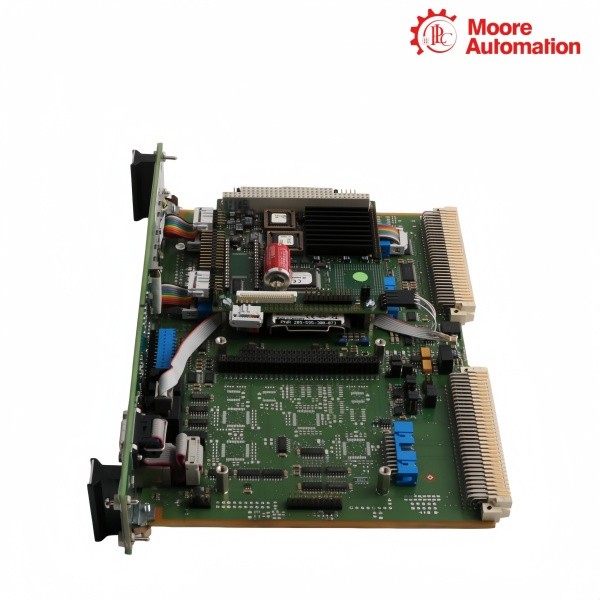

VM600 controller card technical illustration

Technical Data

Technical item	Specification
Brand	Meggitt Vibro-Meter
Product type	Modular CPU card variant group
Product family	VM600 CPUM
Variant A	200-595-046-114
Variant B	200-595-100-031
Variant C	200-595-031-111
Rack connection	VM600 backplane
CPU role	Central rack processing
Ethernet path	CPUM / IOCN Ethernet interfaces
Serial path	Front RS-232 and rear isolated serial path
Paired card	IOCN input/output card
External data	Configured network or serial service
Field signal source	Associated VM600 cards
CPU module	PFM-541I or equivalent
Processor	AMD Geode LX800, 500 MHz
Memory and OS	256 MB DRAM; QNX
Ethernet rate	100 Mbps
Serial rate	Up to 115.2 kBaud
RS-485 isolation	500 VDC
Fieldbus map	Modbus up to 131072 registers/words and 131072 coils/bits
PROFINET slot	128 bytes maximum; firmware-dependent
Power and environment	5 VDC; CPUM <10 W, IOCN <2 W, pair ≤12 W; −20 to 65°C
Humidity	0–90% RH operating and storage
Physical	CPUM 6U × 40 mm × 187 mm, approx. 0.40 kg; IOCN 6U × 20 mm × 125 mm, approx. 0.25 kg
Event log	Up to 10,000 recent VM600 events

Configuration and Programming: Variant Configuration

CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111 is configured as a CPU card record, while its PNR suffixes identify the supplied variants.

Loaded configuration

The card configuration determines the services exposed through the installed interface arrangement.

Firmware record

The firmware and hardware designation remains part of each CPUM PNR.

Paired interface

The IOCN card supplies the rear-side connection path associated with the CPU.

System Integration: CPU and Rack Data

CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111 joins the VM600 rack cards to the external communication layer.

Rack input

Measurement and protection cards send their data through the VM600 backplane.

CPU processing

The CPUM processes the rack data before the external interface is used.

Communication output

The paired IOCN and selected cable path carry the configured service beyond the rack.

Product Questions

Why does CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111 contain three complete strings instead of one?

CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111 represents three supplied CPUM PNRs, so each firmware and hardware designation stays attached to its own variant. The combined display does not turn them into a single new ordering number.

What determines the communication service on CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111?

The installed CPUM/IOCN arrangement and the loaded configuration determine the communication service. The family name alone does not identify the active protocol or cable route.

Where does rack data enter CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111?

Rack data enters CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111 through the VM600 backplane from the installed monitoring, protection or interface cards. It then moves to the configured Ethernet or serial path.

Which card should be documented with CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111?

Document the paired IOCN card, rack position and external cable connection with CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111. Those records show the complete path from the VM600 cards to the outside equipment.

How should a technician distinguish the three CPUM variants in CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111?

Read the full PNR on the card and retain 200-595-046-114, 200-595-100-031 and 200-595-031-111 as distinct entries. Do not shorten the entry to CPUM alone.

Does CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111 provide the field sensor terminals?

No. CPUM 200-595-046-114 / CPUM 200-595-100-031 / CPUM 200-595-031-111 is the CPU layer; field sensor and relay terminals belong to the associated VM600 I/O or measurement cards. The CPU receives their data through the rack connection.
