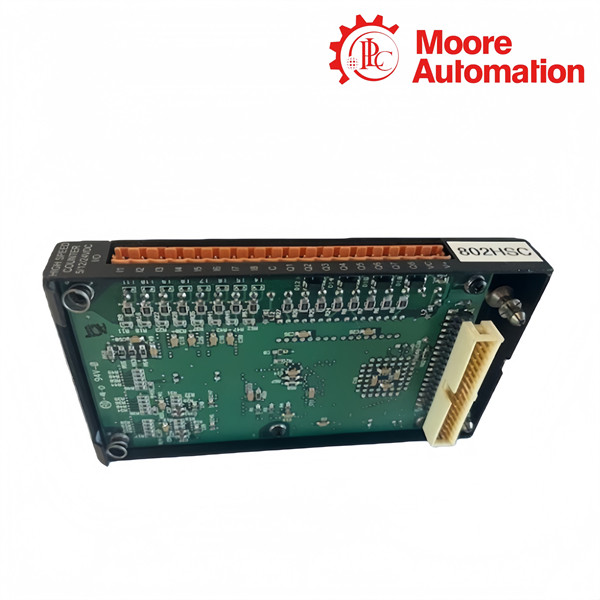

Horner HE800HSC600 / HE800HSC601 SmartStack High-Speed Counter Modules
Configurable SmartStack counter options for pulse, frequency, cam and diagnostic functions.
Product Description
HE800HSC600 and HE800HSC601 are SmartStack high-speed counter modules covered by the SmartStack High Speed Counter Options documentation. Their functions are selected through configuration rather than inferred from the part-number suffix alone.
Available documented options include dual 32-bit totalizer/frequency counters with dual 16-bit PWM or pulse outputs, dual 32-bit counters with output latch and comparison outputs, electronic cam functions, a field-installable option and a diagnostic-tool option.
Technical Specifications
| Specification | HE800HSC600 | HE800HSC601 |
|---|---|---|
| Brand | Horner | |
| Product Type | SmartStack high-speed counter module | |
| Country of Origin | United States | |
| System Family | SmartStack Metal | |
| Configuration software | Cscape | |
| Documented option 1 | Dual 32-bit totalizer/frequency counter plus dual 16-bit PWM/pulse outputs | |
| Documented option 2 | Dual 32-bit counter with output latch, preload register and comparison outputs | |
| Documented option 3 | 24-bit electronic cam with eight combinable ON/OFF functions | |
| Documented option 4 | Dual 16-bit electronic cams with four combinable ON/OFF functions per cam | |
| Documented option 5 | Field-installable option defined by an external Cscape file | |
| Documented option 6 | Diagnostic-tool option intended for hardware testing | |
Counter Option Selection
HE800HSC600 and HE800HSC601 support six documented options. The chosen option determines whether the module is used for totalizing, frequency measurement, comparison/latch work, electronic cam functions, a field-installed configuration or diagnostics.
The module configuration should be saved and identified before replacement because the installed option is part of its working function.
Configuration and Acceptance
Frequently Asked Questions
What options are available for HE800HSC600 and HE800HSC601?
HE800HSC600 and HE800HSC601 have six documented options covering counter, frequency, PWM/pulse, cam, field-installed and diagnostic functions.
Which software configures HE800HSC600 and HE800HSC601?
The documented configuration procedures for HE800HSC600 and HE800HSC601 use Cscape software.
Can HE800HSC600 and HE800HSC601 use the diagnostic option for production?
No. The diagnostic-tool option for HE800HSC600 and HE800HSC601 is intended for hardware testing only.
What must be recorded before replacing HE800HSC600 and HE800HSC601?
Record the complete catalog number, selected option, related registers and connected pulse/output function for HE800HSC600 and HE800HSC601.
What should be tested after fitting HE800HSC600 and HE800HSC601?
Test the installed counter, frequency, pulse or cam function after fitting HE800HSC600 and HE800HSC601.
Why is configuration important for HE800HSC600 and HE800HSC601?
The selected function determines the working role of HE800HSC600 and HE800HSC601, so it must be confirmed separately from the hardware label.
