Home>GE>Horner HE800DNM650 DeviceNet Master Module

Horner HE800DNM650 DeviceNet Master Module Item NO.: 2907191

Write a Review

US$ 1.00

Quantity: Stock ( 28 )

Request Price & AvailabilitySend the part number and quantity. Our team will confirm stock, condition, lead time and the best quotation.

MOQ: 1 piece
International shipping
1-year warranty on eligible items
Fast response during business hours

Product Name	Horner HE800DNM650 DeviceNet Master Module
Item NO.	2907191
Weight	0.1 kg = 0.2205 lb = 3.5274 oz
Category	GE
Brand	GE
Creation Time	2026-09-10

Horner Automation

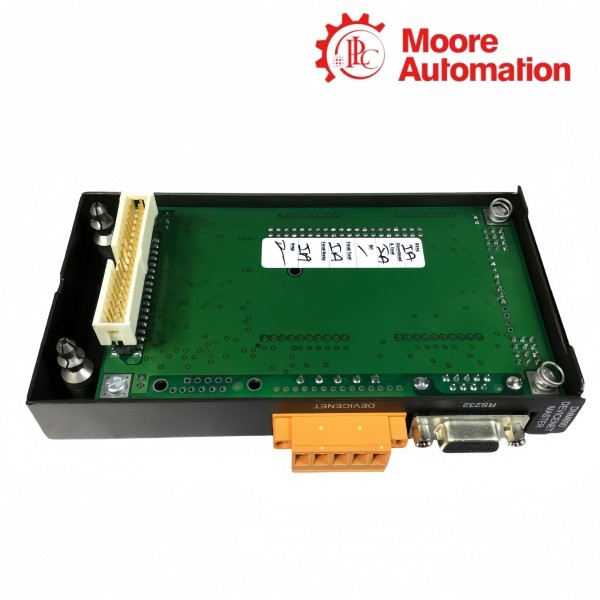

Horner HE800DNM650 DeviceNet Master Module

Product Overview

The HE800DNM650 is a DeviceNet Master communication module from the Horner Automation SmartStack I/O series. It controls communication between an OCS or TIU host controller and up to 63 DeviceNet slave devices on a 2-wire RS485 network.

The module supports Poll, Bit-Strobe, Cyclic, Change-of-State, and Explicit messaging via Class 2 connections, with UCMM capability through Group 1, 2, and 3 messaging and fragmented message support for large transfers. Data is exchanged with the host controller through a dual-port RAM interface, with up to 256 bytes of input and 256 bytes of output per slave.

Configuration is performed through the RS232 serial port using HSyCon software, while register mapping is handled in Cscape or Cbreeze. The register count in Cscape must match the count set in HSyCon for correct operation.

Specifications

Parameter	Value
Brand	Horner Automation
Model	HE800DNM650
Type	DeviceNet Master Module
Country	United States
Communication Ports	5-pin screw terminal
Nodes Supported	63 Slaves
Status LEDs	Ready, Run, Error, Status
Supported DeviceNet Features	Poll, Bit-Strobe, Cyclic, Change-of-State, Explicit via Class 2; UCMM capable via Group 1, 2, 3; Fragmented messages
Configuration Method	Via RS232 serial port or through Cbreeze / Cscape
Baud Rate	Max 500 kBaud
Network Type	2-Wire RS485
Input Data per Slave	256 bytes
Output Data per Slave	256 bytes
Required Power (Steady State)	1.5W (300mA @ 5VDC)
Required Power (Inrush)	Negligible
Relative Humidity	5 to 95% Non-condensing
Operating Temperature	0° to 55° Celsius
Terminal Type	D-Type - Programming; Screw terminal - Field bus
Weight	269 g (9.5 oz)

DeviceNet Communication Features

Supported Messaging Methods

Poll — Master-initiated data exchange with individual slaves
Bit-Strobe — Broadcast query to multiple slaves simultaneously
Cyclic — Scheduled periodic data transmission
Change-of-State — Event-triggered data reporting
Explicit Messaging via Class 2 — Request-response communication

Network Capabilities

UCMM support via Group 1, 2, and 3 messaging
Fragmented message support for large data transfers
Maximum 63 slave devices per master
256 bytes input and 256 bytes output per slave
Baud rates: 125 kBaud, 250 kBaud, 500 kBaud

Connectivity & Pin Configuration

The HE800DNM650 connects to the DeviceNet network through a 5-pin screw terminal. Pin 1 is VIn, Pin 2 is RXD/TXD-P, Pin 3 is Shield, Pin 4 is RXD/TXD-N, and Pin 5 is DGND.

Fieldbus data registers are mapped through a dual-port RAM interface. Input and output data must be configured as contiguous blocks in the OCS controller.

The module mounts onto an OCS or TIU controller through the SmartStack expansion interface. The register count in the OCS must match the configuration set in HSyCon.

FAQ

How many DeviceNet slave devices can the HE800DNM650 support on a single network?

The HE800DNM650 supports up to 63 slave devices. Each slave can exchange up to 256 bytes of input and 256 bytes of output data with the master module.

What software is required to configure the HE800DNM650 DeviceNet Master Module?

HSyCon software handles the DeviceNet interface settings, while register mapping is configured through Cscape or Cbreeze. HSyCon communicates with the module via its RS232 serial port.

Can the HE800DNM650 perform explicit messaging for device parameter access?

Yes. Explicit Messaging via Class 2 connections allows reading and writing device parameters and accessing configuration objects on slave devices. UCMM support is also provided.

What are the power requirements for the HE800DNM650 module?

The module requires 1.5W at steady state, drawing 300mA at 5VDC. Inrush power is negligible. Operating range is 0° to 55° Celsius and 5 to 95% non-condensing humidity.

How does the HE800DNM650 integrate with an OCS controller for data exchange?

The module mounts onto an OCS or TIU controller via the SmartStack expansion interface. Data is exchanged through a dual-port RAM, and the register count in the OCS must match the HSyCon configuration.
