Confirm the wiring type
Use type 04 only for the redundant connector-board arrangement described by HIMA.
Product Overview

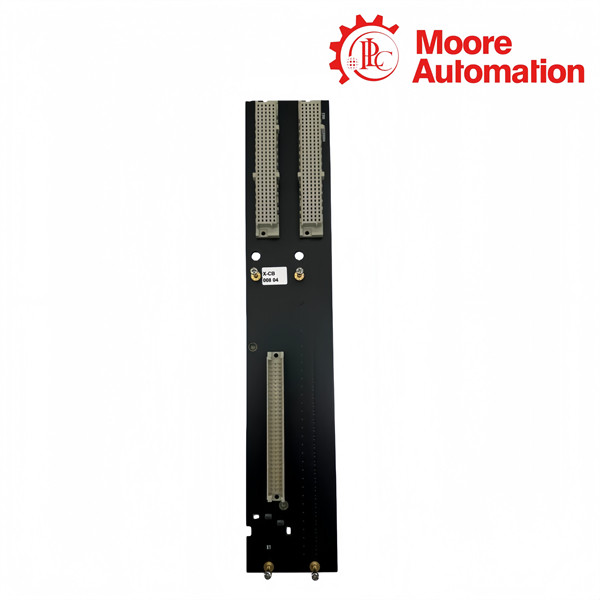

X-CB 008 04 is the type-04 redundant connector-board variant documented for the HIMax X-AI 32 02 analog input module. It distributes each field signal to two adjacent redundant I/O modules through the connector-board and system-cable arrangement.
The manual distinguishes it from X-CB 008 03 for mono wiring and X-CB 008 07 for triply redundant wiring. Ready-made HIMA system cables connect the cable-plug rows to the field termination assembly, and mechanical coding prevents an unsuitable module/board combination from being seated.
Technical Specifications
ManufacturerHIMA
Official modelX-CB 008 04
Product typeRedundant connector board
System familyHIMax
Associated I/O moduleX-AI 32 02
Channel context32 analog inputs
Wiring arrangementType 04 / redundant
Field connectionCable plug
System cableX-CA 005
Module placementAdjacent redundant slots
Mechanical codingDocumented from hardware revision AS10
Field-side rowsCable-plug rows 1 and 32
Redundant Signal Boundary
Field zoneSignals enter through the coded cable-plug connection and the specified field termination assembly.
Connector boardX-CB 008 04 duplicates the field-side analog path for the redundant module pair.
Module pairTwo X-AI 32 02 modules are installed in adjacent positions for the documented wiring-4 arrangement.
Connector Board Integration
Check coding
Do not alter coding wedges; they identify the permitted I/O-module pairing.
Seat the board first
Install the connector board in the base plate before inserting the associated I/O modules.
Connect the system cable
Use the documented HIMA system cable and verify row orientation at both ends.
FAQ
How does X-CB 008 04 implement its Redundant Signal Boundary role?
X-CB 008 04 is the type-04 redundant connector-board variant documented for the HIMax X-AI 32 02 analog input module. It distributes each field signal to two adjacent redundant I/O modules through the connector-board and system-cable arrangement.
Which HIMax Redundant Analog-Input Connector Board family context applies to X-CB 008 04?
X-CB 008 04 belongs to the HIMax X-AI 32 02 family and should be selected within that documented system context.
Which Associated I/O module value defines the Redundant Signal Boundary configuration for X-CB 008 04?
Associated I/O module is documented as X-AI 32 02; retain the complete model because adjacent variants can differ.
Before commissioning X-CB 008 04, which Confirm the wiring type check matters most?
Use type 04 only for the redundant connector-board arrangement described by HIMA.
Can X-CB 008 04 be selected without reviewing its Redundant Signal Boundary boundary?
No. Confirm the complete X-CB 008 04 designation, the associated system configuration and the documented interfaces before replacement.
Why must the full X-CB 008 04 identity be retained for the HIMax Redundant Analog-Input Connector Board enquiry?
The full X-CB 008 04 identity separates this configuration from related variants with different hardware, licensing, interfaces or compatibility.
