GE Fanuc IC694DSM324 Motion Control Module Firmware V1.61 Iterative Upgrade: Comprehensive Optimization of RX3i/90-30 Servo Synchronous Control Performance
2026-07-10

1. Introduction / Background – Industry Value of Core Spare Components for Industrial Automation Motion Control

In today's high-end discrete manufacturing, packaging and printing, metal processing, and electronic assembly industries, multi-axis synchronous servo control has become a core foundation for improving production line quality and efficiency. The process requirements such as multi-cam following, electronic cam synchronization, high-speed local logic, and multi-axis point interpolation place stringent standards on the stability, axis control capacity, firmware compatibility, and fault tolerance of PLC motion controller modules.

The GE Fanuc PACSystems RX3i and Series 90-30 PLC systems, as large-scale existing medium-to-large-scale automation control platforms, rely on the DSM series servo motion control modules as core spare components for achieving precise 4-axis servo synchronization. The IC694DSM324-BE (DSM324i), as the main motion controller adapted to the RX3i rack, is widely used with αi and βi series digital servo drives, undertaking key tasks such as electronic cam following, high-speed synchronization logic, and external encoder feedback acquisition.

With the increasing demand for continuous and uninterrupted operation of smart manufacturing production lines, hidden faults in the old DSM324i firmware, such as module disconnection, jog exceeding limits, servo restart erratic movements, and speed deviations, can directly lead to production line downtime, product scrapping, and accelerated equipment wear. To address this, GE Fanuc has completed an iterative optimization of the DSM324i firmware version V1.61, specifically fixing historical operational defects and clarifying hardware compatibility, rack deployment capacity, and CPU and programming software adaptation specifications, providing a stable and reliable upgrade solution for automation integrators, equipment maintenance manufacturers, and spare parts trading companies. This article provides a comprehensive interpretation of the IC694DSM324 motion control module's product characteristics, upgrade points, installation specifications, technical parameters, and application pain point solutions.

2. Core Functional Advantages of IC694DSM324, Adapting to Servo Synchronization Processes in Multiple Industries

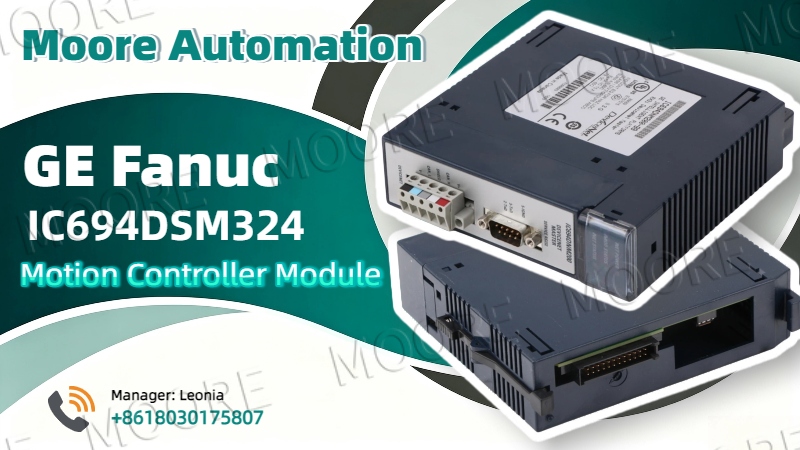

The IC694DSM324 (DSM324i) motion controller module is a 4-axis servo control spare part designed specifically for the PACSystems RX3i platform. A single module can drive up to four αi/βi series digital servo motors. Unlike general-purpose digital and analog modules, it has a built-in independent position closed-loop computing unit, with three core functions supporting the implementation of complex motion processes.

First, high-speed local logic operation capability. The module is not limited by the CPU cycle and can perform logical judgments and floating-point mathematical operations at the synchronous position loop refresh rate. It outputs high-speed digital signals to the synchronous axis motion, significantly reducing the CPU communication load. This is particularly effective in high-speed flying shears and label-tracking cutting equipment.

Second, electronic cam following (CAM Follower) function. Replacing the traditional mechanical cam mechanism, it supports synchronous linkage between the spindle and slave axis, flexibly adjusting the cam curve, and adapting to scenarios with frequent changes in process parameters, such as printing, die-cutting, filling, and textile warp knitting, reducing the cost of replacing mechanical parts.

Third, high-speed acquisition by an external quadrature encoder. The module supports external encoders for position feedback, meeting the needs of master-slave axis following and external positioning detection, and is compatible with roll material tension control and multi-station synchronous positioning production lines.

Simultaneously, the hardware supports on-site firmware upgrades. Existing IC694DSM324-Ax modules can be directly upgraded to the new BE version via the official firmware tool without replacing the hardware rack, significantly reducing spare parts procurement costs for production line upgrades and accommodating both new equipment compatibility and upgrades for older equipment.

3. Key Fixes in Firmware V1.61: Resolving High-Frequency Production Line Downtime Faults

The iterated V1.61 firmware is a significant optimization version of the DSM324i module, fundamentally addressing four long-standing equipment downtime risks in the old version. It is an essential version for maintenance and upgrades of existing production lines.

The primary fix is for a module disconnection fault caused by parameter loading communication commands. The old firmware was prone to triggering a PLC "module missing" fault when loading the COMM_REQ function block, causing an emergency shutdown of the entire servo production line. Version V1.61 refactored the parameter read/write communication logic, completely eliminating this error, and ensuring stable and error-free batch parameter downloads and program uploads/downloads.

Secondly, the servo axial movement defect during emergency stop reset was optimized. After the amplifier's emergency stop triggered a servo stop, clearing the fault and re-enabling the driver resulted in the old firmware exhibiting small to full-circle axial movement of the servo axis, potentially impacting tooling and damaging workpieces. The new version adds zero-speed locking logic, and the maintenance specifications are synchronized with a 24V control power supply cyclic operation scheme, completely avoiding the risk of axial movement.

Furthermore, two minor process control deviations were corrected: First, a slight overspeed issue with the trajectory generator under long acceleration/deceleration conditions. When the acceleration/deceleration sampling period exceeded 65535 units, the original module speed had a 0.0015% deviation, leading to dimensional errors in high-precision machining scenarios. The new version calibrates the speed calculation algorithm. Second, the external encoder feedback mode recognition logic was optimized. The firmware did not support external encoders in absolute mode; a clear configuration prompt specification has been added to prevent misconfiguration from causing positioning failure.

Simultaneously, supplementary explanations of the software limit jog operation logic constraints are provided, distinguishing the limit trigger logic under the driver enable switch. Operators can use program-based position control to avoid axis overtravel collisions with equipment.

4. Hardware and software compatibility specifications, strict requirements for CPU and programming software versions

Deploying the IC694DSM324-BE and enabling the V1.61 firmware optimization function must strictly adhere to the official hardware and software version matching standards. Version incompatibility will result in missing functions, communication anomalies, and module errors.

Control system CPU firmware side: PACSystems RX3i host firmware minimum version 2.8; Series 90-30 series CPU firmware must be upgraded to 10.0 or higher; versions lower than this will not be compatible with the new firmware repair function.

Programming software side: Only compatible with Machine Edition Logic Developer – PLC V5.0 SP2 and higher programming platforms; older programming software such as Logicmaster 90, Control, VersaPro, and the DOS version of motion programming software IC641SWP065 are completely incompatible, and cannot complete program downloads, firmware upgrades, or cam curve editing operations on the DSM324i module. Technical upgrade projects require simultaneous updates to the host programming software.

Hardware upgrade compatibility: Early IC693DSM324-Ax (compatible with 90-30 racks) and IC694DSM324-Ax (compatible with RX3i racks) all support on-site online firmware upgrades. Upgrades to new xE/BE versions can be achieved using GE's official firmware upgrade tool without rack disassembly or module hardware replacement, suitable for non-stop, phased maintenance and upgrades in the factory.

Reference Documents: For equipment debugging and troubleshooting, please refer to three official manuals: DSM324i Motion Controller User Manual GFK-2347, Servo Product Specification Guide GFH-001F (and later versions), and Product Important Information Manual GFK-2354F, covering the entire process of wiring, parameters, and fault codes.

5. Rack Deployment Capacity and Explosion-Proof Installation Specifications to Avoid Hardware Overload Risks

5.1 Maximum Number of Modules Installed in Racks with Different Power Supplies

The IC694DSM324i motion module has fixed power consumption and encoder power supply load limitations. The backplane 5VDC operating current is 860mA, and the external encoder additionally consumes 500mA of 5V output current. The rack power supply model directly determines the maximum number of modules that can be installed in a single rack. Overload will cause backplane voltage drop and module offline.

PACSystems RX3i Platform: The 310 CPU main board, paired with a PWR040 power supply, can accommodate up to 5 DSM324i units; the remote expansion board, equipped with a PWR321 power supply, supports only 2 units, while PWR330/331 power supplies can support 3 to 6 units; the total number of rack modules for the entire RX3i control system is capped at 32.

Series 90-30 Platform has two CPU capacity limitations: 364/374 CPU main board with a PWR321/322/328 power supply supports only 1 unit, while PWR330/331 power supplies can support up to 4 units; 350/352/360/363 CPU main board with a low-to-medium power supply supports 2 units, while high-power power supplies support 5 units; the total number of modules for the entire 90-30 system is capped at 20; the maximum number of expansion boards is 8.

5.2 Explosion-proof Installation Requirements in Hazardous Areas The IC694DSM324 module with UL explosion-proof certification can be used in Class I Division 2 flammable and explosive environments (chemical and oil and gas automated production lines), adhering to three mandatory safety regulations: First, the power supply to the entire machine must be disconnected before module disassembly, assembly, and wiring; live plugging and unplugging is prohibited. Second, replacing non-original parts is prohibited, as it will compromise explosion-proof compatibility. Third, use 14~22AWG single/multi-strand copper cables for wiring terminals, with a tightening torque of 9.6~11.5 inch-pounds. The cable temperature resistance should not be lower than 90℃ to strictly avoid the risk of explosion caused by wiring overheating.

5.3 Operational Precautions When the electronic cam is running in absolute mode, the slave axis will lose synchronous counting after the spindle enable is disconnected. It is recommended to add a cam stop command when the spindle is disconnected to the program. The follower movement and the standard point movement should be controlled separately. The ABORT stop position only stops the standard interpolation movement; disabling the follower enable position will immediately stop the cam following action. The program must distinguish between the two sets of control logic.

6. Technical Specifications

Power Supply Parameters

1. Module Power Supply: 5VDC power supplied by the host controller backplane

2. Module Basic Operating Current: 860mA, external encoder power supply current needs to be added.

3. External Encoder 5V Power Supply Output: Maximum 500mA per module, enabling this function requires consideration of the backplane's total current load.

PACSystems RX3i Rack Mount Specifications

1. 310 CPU Mainboard (PWR040 Power Supply): Maximum of 5 DSM324i units per board

2. Remote Board PWR321 Power Supply: Maximum of 2 units per board

3. Expansion Boards PWR330/331: 3~6 units/board

4. Maximum Total Number of Modules in the RX3i System: 32 units

Series 90-30 Rack Mount Specifications

1. 364/374 CPU Mainboard: 1 low-power power supply, maximum of 4 high-power PWR330/331 units

2. 350/352/360/363 CPU Main Board: 2 low-power power supplies, 5 high-power power supplies

3. Expansion/remote board capacity is consistent with RX3i, with a maximum of 20 units for the entire system and a total number of expansion boards ≤ 8

Functional Hardware Specifications

1. Axis Control Capability: Single module supports 4 αi/βi digital servo axes

2. Computation Function: Independent high-speed local logic, synchronous position loop execution logic, mathematical operations

3. Special Features: Electronic cam CAM following, external quadrature encoder position acquisition

4. Firmware Upgrade: Older Ax series modules support on-site online upgrade to the new BE version

Explosion-Proof Installation Electrical Parameters

1. Control Cable Specifications: 1 x 14~22AWG copper wire or 2 x 16~22AWG copper wires

2. Terminal Tightening Torque: 9.6—11.5 in.lb

3. Cable Temperature Resistance Standard: Minimum 90℃

4. Explosion-Proof Applicable Areas: Class I Division 2 A/B/C/D hazardous areas, non-hazardous industrial areas

Conclusion

GE Fanuc The IC694DSM324-BE (DSM324i) motion control module, a core multi-axis servo control spare part for the RX3i automation platform, boasts three core capabilities: independent closed-loop operation for 4 axes, flexible synchronization via electronic cams, and high-speed local logic. It covers most multi-axis linkage intelligent manufacturing scenarios, including printing, packaging, metal processing, and electronic assembly. The V1.61 firmware iteration optimization specifically addresses long-standing factory maintenance issues such as module disconnection, servo malfunction, and positioning deviation, while also clarifying comprehensive specifications for rack power capacity, hardware and software version compatibility, and explosion-proof installation, providing a stable upgrade solution for equipment integrators, factory maintenance teams, and automation spare parts suppliers.

Existing RX3i and Series 90-30 PLC production lines can undergo phased firmware upgrades, eliminating the need for complete hardware replacement and significantly reducing technical upgrade investment. New production lines will use the new IC694DSM324-BE module, with factory-adapted optimized firmware, resulting in shorter debugging cycles and enhanced operational stability.

Our company maintains a long-term, readily available supply of brand-new, original GE Fanuc IC694DSM324 and IC693DSM324 series motion control modules, complete with manuals, firmware upgrade tools, and technical debugging support. We offer a one-stop supply service for discontinued or scarce GE automation spare parts, helping manufacturing companies ensure continuous production line operation.

Manager: Leonia

Email: sales@mvme.cn

Whatsapp: +8618030175807

FAQ (Frequently Asked Questions)

Q1: Are IC694DSM324 and IC693DSM324 interchangeable?

A1: No, they are not directly interchangeable. IC694DSM324 is compatible with PACSystems RX3i racks, while IC693DSM324 is compatible with Series 90-30 racks. Their backplane interfaces and power supply standards differ. However, older versions of both modules (Ax version) can be field-upgraded to the BE firmware version, and their motion control functions are completely identical.

Q2: What problems will occur if the CPU firmware version is too low, as the production line uses firmware V1.61?

A2: If the RX3i CPU firmware is lower than V2.8, and the 90-30 CPU is lower than V10.0, the fault-fixing features optimized in V1.61 will not be effective. The risk of module disconnection and servo malfunction will still exist. Additionally, some advanced cam functions will report errors and cannot be enabled. The host CPU firmware must be updated synchronously before upgrading the module firmware.

Q3: Can an external absolute encoder be used with the DSM324i?

A3: No. The module firmware is only compatible with incremental quadrature encoders. Even if the software is configured for absolute feedback mode, the hardware will still acquire incremental signals, making absolute positioning impossible. An incremental encoder must be selected during the selection process.

Q4: How many IC694DSM324 chips can be installed in a single RX3i system?

A4: The total number of DSM324i modules in the entire PACSystems RX3i system, including all main and expansion boards, is limited to 32. The number of modules installed on each board must be controlled according to the power supply model to prevent backplane current overload.

Q5: What are the strict requirements for disassembling and assembling the IC694DSM324 under explosion-proof conditions?

A5: In hazardous areas, the entire system must be powered off before plugging, unplugging, or connecting any wires. Cable torque and temperature resistance specifications must strictly adhere to technical specifications. Replacing with non-original parts is prohibited; otherwise, explosion-proof certification will be lost, and there is a risk of explosion.
