Detect target distance
The 8 mm tip establishes the eddy-current field and changes probe impedance as the conductive target moves.
01
Product Description

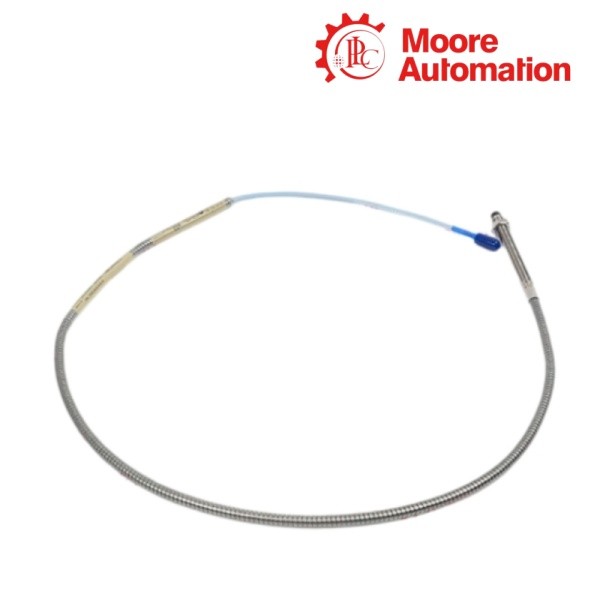

Bently Nevada 330102-00-30-10-01-05 is an armored 3300 XL 8 mm proximity probe that detects shaft displacement and vibration as part of a matched 3300 XL 8 mm transducer system. Its 3/8-24 UNF case fixes the probe at the machine, while the integral cable carries the target-dependent response toward the extension cable and Proximitor Sensor.
At the mechanical interface, Bently Nevada 330102-00-30-10-01-05 uses zero unthreaded length and a 3.0 inch case, allowing the threaded body to support the probe close to the tip. The 1.0 m armored lead ends in the standard ClickLoc connector with protector, separating the machine-side mounting task from the removable cable junction.
Signal scaling for Bently Nevada 330102-00-30-10-01-05 occurs only after the probe is combined with the matched extension cable and 3300 XL 8 mm Proximitor Sensor. The completed path produces the 2.0 mm linear range and 7.87 V/mm output used for static gap and dynamic vibration monitoring.
02
Product Specifications
| Technical Item | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330102-00-30-10-01-05 |
| Product Name | 3300 XL 8 mm armored proximity probe |
| Country | United States |
| Probe execution | 330102 = 3/8-24 UNF-2A, with armor |
| Unthreaded length | 00 = 0.0 in |
| Case length | 30 = 3.0 in |
| Total probe length | 10 = 1.0 m |
| Connector and cable | 01 = ClickLoc connector with protector, standard cable |
| Agency approval | 05 = CSA, ATEX and IECEx approvals |
| Probe tip diameter | 8.0 mm |
| System linear range | 2.0 mm (80 mil) |
| Nominal scale factor | 7.87 V/mm (200 mV/mil) |
| Recommended gap | 1.27 mm (50 mil) |
| System frequency response | 0 to 10 kHz, +0/−3 dB typical |
03
Product Functions
Bently Nevada 330102-00-30-10-01-05 carries target motion through three distinct stages before the monitor receives a voltage.
Carry the response
The 1.0 m armored coaxial lead transfers the unconditioned response to the ClickLoc junction while protecting the cable at the machine.
Enable conditioned output
The matched extension cable and Proximitor Sensor excite the probe and convert its response into the monitor's proportional voltage.
04
Typical Applications
Bently Nevada 330102-00-30-10-01-05 serves the standard 3300 XL 8 mm measurement duties documented for fluid-film-bearing machinery and rotating reference targets.
Radial vibration and position
The probe observes shaft movement relative to the bearing housing, allowing the connected system to carry both dynamic vibration and static position information.
Axial position
Facing an axial target with the required spacing and cross-talk separation, the system tracks thrust-position changes inside its calibrated range.
Keyphasor and speed reference
A suitable shaft reference feature produces the periodic proximity response used for phase reference or speed measurement by the connected monitor.
05
Common Questions
01Why is the complete code needed for Bently Nevada 330102-00-30-10-01-05?
Bently Nevada 330102-00-30-10-01-05 encodes case geometry, lead length, connector protection and approvals; another 330102 probe can fit the same thread but differ in those installation details.
02How should the armor on Bently Nevada 330102-00-30-10-01-05 be routed?
Route Bently Nevada 330102-00-30-10-01-05 with a smooth bend outside the ferrule, support the cable independently and keep clamps from crushing the armored lead.
03What causes a low gap voltage on Bently Nevada 330102-00-30-10-01-05?
A low gap voltage on Bently Nevada 330102-00-30-10-01-05 can result from a probe positioned too close to the target, a shorted cable path or an incorrect Proximitor connection; separate the mechanical and wiring checks.
04Can Bently Nevada 330102-00-30-10-01-05 be lengthened by splicing its lead?
No. Splicing Bently Nevada 330102-00-30-10-01-05 changes the calibrated cable path; use the documented extension cable for the required total system length.
05What should be verified before energizing Bently Nevada 330102-00-30-10-01-05?
Before energizing Bently Nevada 330102-00-30-10-01-05, verify target clearance, probe gap, ClickLoc seating, connector protector, cable continuity and correct Proximitor field wiring.
06Why can the output of Bently Nevada 330102-00-30-10-01-05 change after cover installation?
Cable strain or probe movement introduced while closing nearby hardware can shift the output of Bently Nevada 330102-00-30-10-01-05, so recheck static gap voltage after the final mechanical state is established.
06
Obsolete Parts Support
Moore Automation
https://www.mvme.cn/Moore Automation can review legacy automation and machinery-monitoring references using the complete manufacturer and model string.
The record can include nameplate photographs, installed-system notes, quantity and destination, without claiming a replacement relationship that has not been confirmed.
Legacy recordComplete model retained
EvidencePhotographs and notes attached
No assumptionReplacement not inferred
