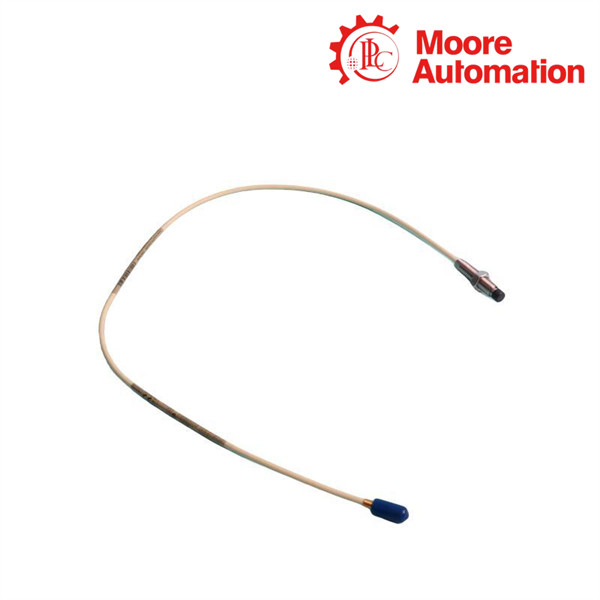

Copy| Product Name | Bently Nevada 21504-00-48-10-02 7200 Series 8 mm Standard-Mount Proximity Probe |
| Item NO. | 2908463 |
| Weight | 0.1 kg = 0.2205 lb = 3.5274 oz |
| Category | BENTLY NEVADA |
| Brand | Bently Nevada |
| Creation Time | 2026-09-15 |
Bently Nevada · 7200 8 mm
Unarmored 3/8-24 probe with 4.8 in case and 1.0 m lead
21504-00-48-10-02 is an unarmored Bently Nevada 7200 series 8 mm standard-mount proximity probe. Its 3/8-24 case has no unthreaded section, extends 4.8 in overall and carries a 1.0 m lead ending in a miniature male coaxial connector.
The probe forms the machine-end element of a 7200 5 mm/8 mm proximity transducer system. It measures the distance to a conductive target without contact and works with the family extension cable and 7200 Proximitor Sensor.
The long threaded body of 21504-00-48-10-02 provides adjustable reach through a bracket or casing. Its unarmored lead needs routing protection because the cable itself does not include stainless-steel armor.
| Technical Item | 21504-00-48-10-02 |
|---|---|
| Brand | Bently Nevada |
| Product Type | 7200 8 mm standard-mount proximity probe |
| Brand Country | United States |
| Probe Tip Diameter | 8 mm |
| Case Thread | 3/8-24 |
| Lead Armor | None |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 4.8 in |
| Total Probe Length | 1.0 m (39 in) |
| Connector | Miniature male coaxial |
| System Power | -17.5 to -26 Vdc |
| Nominal Scale Factor | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Relative Humidity | 0 to 95%, noncondensing |
An 8 mm sensing tip provides the standard 7200 proximity geometry, and the 3/8-24 threaded body allows axial adjustment over the 4.8 in case length. With no smooth section at the tip, the threaded case can be positioned directly through the mounting hardware.
The 1.0 m unarmored lead keeps cable mass low and terminates at a removable miniature coaxial connection. The light-yellow 7200 family identification helps prevent mixing with other Bently Nevada transducer families.
Check that the bracket or casing uses a clean 3/8-24 thread and has enough clearance for the 4.8 in body. Thread the probe to the required reach, lock it without twisting the integral lead, and maintain a direct view of the conductive target.
Support the unarmored 1.0 m cable along a protected route, connect it to the correct 7200 extension cable, seal the miniature coaxial joint and complete the loop with the matched 7200 Proximitor Sensor. Set gap voltage and confirm the monitor response before applying alarm functions.
Route the 1.0 m cable away from sharp edges, moving parts and liquid exposure, and support it before the miniature coaxial joint. Do not use the cable to hold the probe or force it around bends simply because no external armor is present.
Stop installation and compare the available axial clearance with the fully threaded 4.8 in case. Adjust the approved bracket arrangement or select the correct case length rather than shortening the probe body.
A cable that physically connects may not preserve the calibrated 7200 system length. Verify the complete 7200 probe, extension cable and Proximitor Sensor combination before setting the 7.87 V/mm scale or judging channel accuracy.
Tip diameter does not establish system compatibility. Keep the light-yellow 7200 family components together or plan a documented complete-chain migration rather than changing only the probe.
Confirm the static gap voltage, probe security, target surface and cable routing before changing thresholds. Then prove the monitor’s dynamic response and check that the coaxial connection is dry and strain-relieved.
