Environmental enclosure in this configuration
The VFD display, 40K memory, printer port and real-time clock are combined in this P2 terminal configuration. The P2 designation is different from the lower-voltage P1 power version.
Allen-Bradley · DTAM Plus

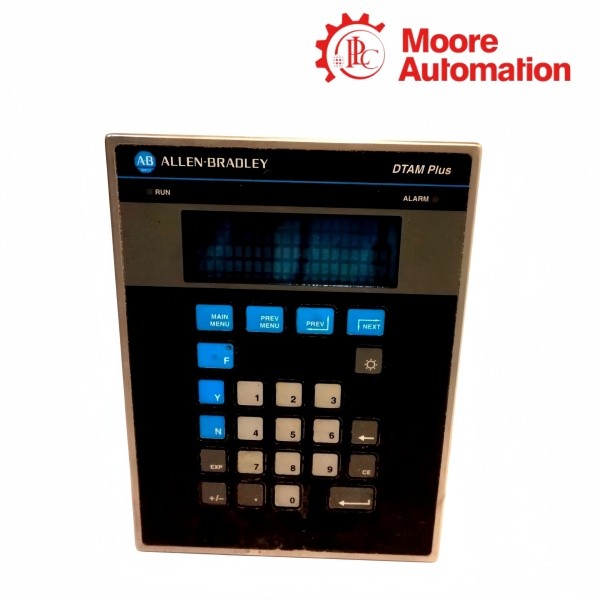

Allen-Bradley 2707-V40P2N DTAM Plus VFD Operator Interface
VFD display with 40K memory, P2 supply and indoor Type 4X rating
System roleDTAM PlusEnvironmental enclosure
1Product Description
The Allen-Bradley 2707-V40P2N is a DTAM Plus operator interface with a 40K VFD display configuration. It is used as the local display and keypad terminal for the selected controller communication option.
Its hardware includes the four-line VFD, 24-key tactile-feedback keypad, printer port and real-time clock. The display uses the VFD brightness adjustment associated with this terminal form.
The P2 catalog designation defines an 85…265V AC or 110…300V DC supply range. The enclosure rating is NEMA Type 4X for indoor use only, establishing both power and installation-location boundaries.
The 2707-V40P2N shares the 40K VFD feature set with P1 V40 terminals, but its P2 power range and indoor Type 4X rating distinguish this configuration.
2Technical Specifications
| Technical item | 2707-V40P2N |
|---|---|
| Brand | Allen-Bradley |
| Product type | DTAM Plus operator interface |
| Display | VFD |
| Application memory | 40K |
| Printer port | Included |
| Real-time clock | Included |
| Power designation | P2 |
| P2 supply range | 85…265V AC, 47…440Hz, or 110…300V DC |
| Enclosure rating | NEMA Type 4X, indoor use only |
| Display capacity | Four lines, 20 characters per line |
| Keypad | 24 tactile-feedback keys on VFD versions |
| Communication options | RS-232, RS-485, or Remote I/O |
| Brightness control | VFD display brightness is adjustable |
3Environmental enclosure
Configuration check
Use the values below to compare the existing assembly with 2707-V40P2N; related DTAM Plus products can use different display, power, terminal or communication options.
4P2 power selection
P2 power selection requirements
2707-V40P2N This unit is rated NEMA Type 4X for indoor use only. Its P2 power range is 85…265V AC at 47…440Hz or 110…300V DC, so the enclosure location and available supply must both be checked.
The selected 2707-V40P2N configuration belongs to the DTAM Plus family and its connection and operating characteristics must match the installed equipment.
5Frequently Asked Questions
The selected 2707-V40P2N configuration belongs to the DTAM Plus family and its connection and operating characteristics must match the installed equipment.
Use the values below to compare the existing assembly with 2707-V40P2N; related DTAM Plus products can use different display, power, terminal or communication options.
Compare the installed connection and listed DTAM Plus values with the full 2707-V40P2N catalogue number.
Only when its full configuration matches 2707-V40P2N; do not select by family name or appearance alone.
Provide the full 2707-V40P2N catalogue number, requested quantity and the installed system role or interface.
