Single- or three-phase input
The AA power class accepts the specified low-voltage line arrangement before the rectifier charges the DC bus.

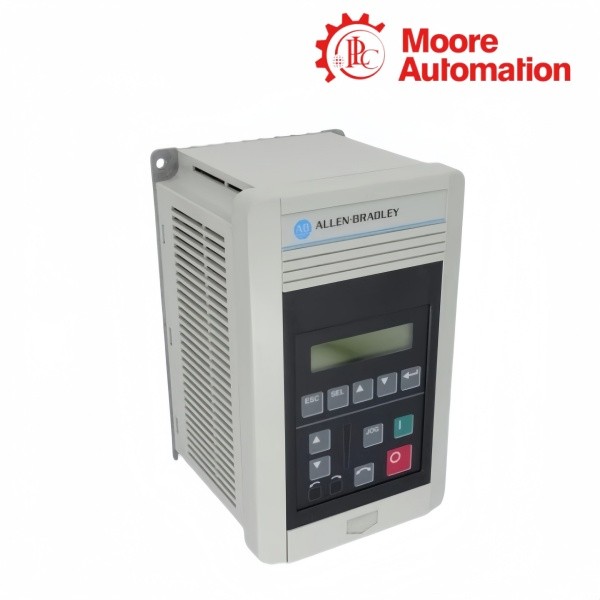

Supply1305-AA02A / 1305-AA03A / 1305-AA04AAllen-Bradley 230 V adjustable-frequency drives
Bulletin 1305 Series C · exact-model technical comparison
Product Details
Designed for the 200/230 V class, Allen-Bradley 1305-AA02A / 1305-AA03A / 1305-AA04A are Bulletin 1305 Series C adjustable-frequency drives spanning three compact motor-output steps. The rectifier and DC-link section supplies a sine-coded PWM inverter that varies motor frequency while the regulator maintains the programmed volts-per-hertz relationship.
The control terminals on 1305-AA02A / 1305-AA03A / 1305-AA04A accept run logic and a selectable analog reference, then expose programmable status through relay and analog outputs. All three share those control functions; the separate table columns preserve the current, kVA, and motor-output limits that distinguish AA02A, AA03A, and AA04A.
Specification Summary
Technical Item1305-AA02A1305-AA03A1305-AA04A
| Brand | Allen-Bradley | ||
|---|---|---|---|
| Product Type | Bulletin 1305 adjustable-frequency AC drive | ||
| Product Family | 1305 Series C | ||
| Input Voltage | 200/230 V AC, single-phase or three-phase | ||
| Operating Voltage Range | 180…265 V AC | ||
| Input Frequency | 47…63 Hz | ||
| Motor Output | 0.37 kW (0.5 hp) | 0.55 kW (0.75 hp) | 0.75 kW (1 hp) |
| Output Current | 2.3 A | 3.0 A | 4.5 A |
| Maximum Input kVA | 0.9 kVA | 1.3 kVA | 1.7 kVA |
| Output Frequency | 0…400 Hz | ||
| Drive Efficiency | 97.5% at rated amperes, nominal line voltage | ||
| Enclosure | IP30 / NEMA Type 1 | ||
| Cooling | Natural convection | ||
| Operating Temperature | 0…50 °C | ||
| Relative Humidity | 0…95%, noncondensing | ||
| Control Method | Sine-coded PWM; volts-per-hertz regulation | ||
| Analog Input | 0…10 V DC or 4…20 mA | ||
| Relay Output | Form C programmable contact | ||
Monitoring and Control — Status and Programmable Outputs
1305-AA02A / 1305-AA03A / 1305-AA04A return drive state to the panel through configurable output functions.
Dry contact status
The Form C relay can represent the selected run, fault, or threshold condition to external logic.
Scaled operating value
The analog output can provide a proportional indication of a configured drive quantity.
Local operating information
The operator interface exposes parameter values and active faults for setup and diagnosis.
Selection and Use Questions
How is a 1305-AA02A / 1305-AA03A / 1305-AA04A model matched to a motor?
Match 1305-AA02A / 1305-AA03A / 1305-AA04A by input supply, motor nameplate voltage, continuous output current, overload demand, and enclosure—not horsepower alone.
Why can 1305-AA02A / 1305-AA03A / 1305-AA04A accept single-phase input but still need current review?
Single-phase operation changes the input-side loading of 1305-AA02A / 1305-AA03A / 1305-AA04A. Confirm the permitted arrangement and size branch components for the actual line configuration.
What should be checked if 1305-AA02A / 1305-AA03A / 1305-AA04A rotate the motor in the wrong direction?
After making the circuit safe, verify motor phase sequence at the output of 1305-AA02A / 1305-AA03A / 1305-AA04A and confirm that reverse commands are not active; do not interchange input and output terminals.
How can a programmable relay on 1305-AA02A / 1305-AA03A / 1305-AA04A be used in panel logic?
Assign the relay in 1305-AA02A / 1305-AA03A / 1305-AA04A to the required drive condition, then wire its isolated contact to the external controller while respecting the contact rating.
Why might 1305-AA02A / 1305-AA03A / 1305-AA04A accelerate normally but trip at a steady load?
For 1305-AA02A / 1305-AA03A / 1305-AA04A, compare sustained motor current with the selected model and programmed motor data; a short acceleration can finish before a continuous overload develops.
What must stay together when 1305-AA02A / 1305-AA03A / 1305-AA04A are stored as spares?
Keep each 1305-AA02A / 1305-AA03A / 1305-AA04A identity with its parameter record, accessory list, supply class, and intended motor so ratings are not mixed during replacement.
