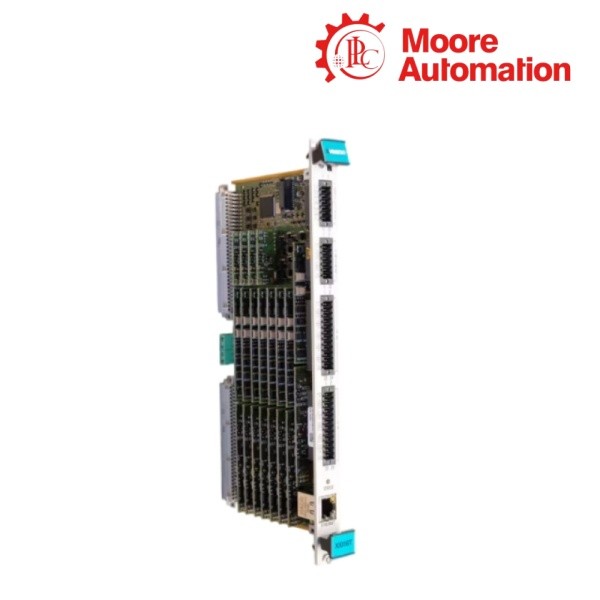

Can Vibro-Meter XIO16T Mk2 620-002-000-213 operate as a stand-alone vibration processor?

No. XIO16T Mk2 620-002-000-213 is the extended I/O partner for an XMV16 monitoring module, not the processing card itself. The complete VM600Mk2 function requires the paired XMV16, rack connection and configured monitoring software.

How should the sixteen dynamic and four tachometer interfaces on Vibro-Meter XIO16T Mk2 620-002-000-213 be matched to the XMV16 plan?

The XIO16T Mk2 620-002-000-213 record shows that map the sixteen dynamic interfaces to the dynamic channel group and map the four tachometer interfaces to speed-reference inputs in the paired XMV16 configuration. Do not count the tachometer group as extra dynamic inputs when checking the available channel plan.

What rack and card checks are needed before installing Vibro-Meter XIO16T Mk2 620-002-000-213?

With XIO16T Mk2 620-002-000-213, confirm the VM600Mk2 ABE04x rack, the matching XMV16 module and the intended module positions before termination. A physically similar slot or an unmatched XMV16/XIO16T combination does not establish a valid monitoring path.

How should a missing dynamic or tachometer signal be diagnosed on Vibro-Meter XIO16T Mk2 620-002-000-213?

In the XIO16T Mk2 620-002-000-213 chain, trace the field wire into the correct XIO16T signal group, then check the paired XMV16 channel assignment and the VibroSight configuration. This order separates a termination error from a channel-map error before a card replacement is considered.

Can an older XIO16T reference replace Vibro-Meter XIO16T Mk2 620-002-000-213 by keeping the same field wires?

On XIO16T Mk2 620-002-000-213, do not assume a direct substitution from the connector appearance or channel count. Verify the complete XIO16T ordering number, VM600Mk2 rack, paired XMV16 and software configuration before reusing the field wiring.

What must be rechecked after replacing Vibro-Meter XIO16T Mk2 620-002-000-213?

For the ordered XIO16T Mk2 620-002-000-213, recheck the complete module reference, rack position, XMV16 pair, dynamic/tachometer channel map and VibroSight configuration. A powered card with an unverified map can leave the physical wiring intact while assigning the signal to the wrong monitoring channel.
