SINAMICS S120 Booksize Line Module
Siemens 6SL3130-7TE21-6AA1 Active Line Module
A 16 kW SINAMICS S120 Active Line Module for 3AC 380–480 V supplies, providing a 600 V DC link at 27 A.
Product Summary
Active Line Module identification and power path
Siemens 6SL3130-7TE21-6AA1 is a SINAMICS S120 Active Line Module in booksize format. The official module rating is 16 kW with a three-phase 380–480 V, 50/60 Hz input and a 600 V DC output rated at 27 A.
The internally air-cooled module forms the regenerative line-side power stage of an S120 drive group. It operates with the specified line-side components and supplies the common DC link used by downstream Motor Modules.
Technical Highlights
Configuration details that define the model
3AC 380–480 V
Official three-phase input range at 50/60 Hz.
16 kW
Rated infeed and regenerative-feedback power for the documented module family.
600 V DC · 27 A
Official DC-link output rating for the exact order number.
Internal air cooling
The exact Siemens article description identifies internal air cooling.
100 × 380 × 270 mm
Official booksize dimensions for the 16 kW internally air-cooled module.
SINAMICS S120
Designed for the documented S120 line-side and DC-link architecture.
Performance & Compatibility
Regenerative infeed and SINAMICS S120 compatibility
The Active Line Module converts the three-phase line supply into the regulated S120 DC link and supports energy feedback to the line. Siemens specifies 16 kW rated power and a 600 V DC-link current of 27 A for this module size.
Operation requires the approved SINAMICS line-side combination, including the applicable Active Interface Module and line reactor. The downstream DC-link load, motor-module selection and DRIVE-CLiQ configuration must match the installed S120 system.
| Brand | Siemens |
|---|---|
| Article number | 6SL3130-7TE21-6AA1 |
| Product family | SINAMICS S120 |
| Product type | Active Line Module |
| Line input | 3AC 380–480 V, 50/60 Hz |
| DC link output | 600 V DC, 27 A |
| Rated power | 16 kW |
| Construction | Booksize, internal air cooling |
| Dimensions | 100 × 380 × 270 mm |
| Net weight | 7 kg |

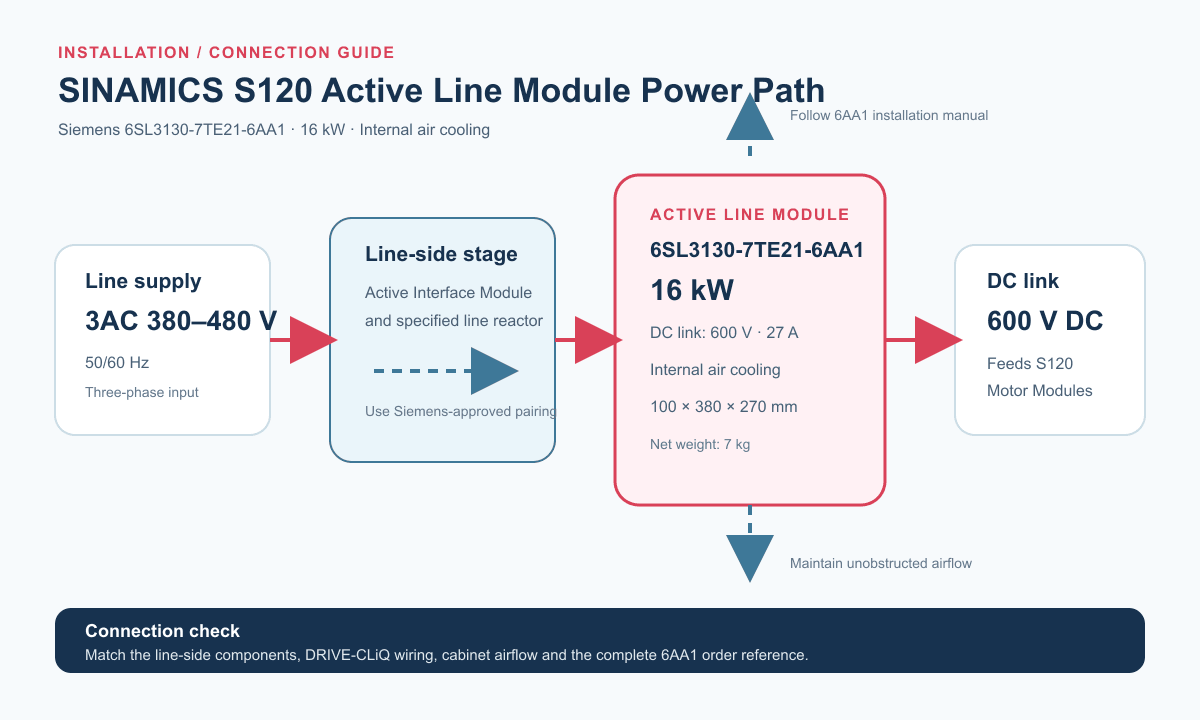

Installation / Connection Guide
Active Line Module line-side and DC-link connection
This English installation guide uses the documented electrical ratings, dimensions and weight for the 16 kW 6SL3130-7TE21-6AA1 module without importing later-revision airflow data.
Selection & Ordering Notes
Checks before ordering or replacing the unit
-
Keep the complete order number
Use 6SL3130-7TE21-6AA1 when matching the installed hardware revision and project documentation.
-
Match the line-side combination
Select the Active Interface Module, line reactor and protection devices specified for the 16 kW Active Line Module.
-
Follow the exact installation manual
Apply the cabinet cooling and clearance requirements stated for the installed 6AA1 hardware revision.
-
Check later revisions separately
Siemens provides an official comparison with 6SL3130-7TE21-6AA4; verify the complete S120 configuration before replacing the 6AA1 revision.
FAQ
6SL3130-7TE21-6AA1 technical questions
What is Siemens 6SL3130-7TE21-6AA1?
It is a 16 kW SINAMICS S120 Active Line Module in booksize format.
What line supply does it use?
The official input rating is three-phase 380–480 V at 50/60 Hz.
What DC-link output is specified?
The module provides a 600 V DC link rated at 27 A.
What are the official mechanical data?
The documented size is 100 × 380 × 270 mm and the net weight is 7 kg.
How is the module cooled?
The exact article description identifies internal air cooling; apply the installation requirements for the 6AA1 revision.
