Gate-controlled counting
A hardware or software gate on Siemens 6ES7550-1AA01-0AB0 determines when a channel counts. When a value remains frozen, check gate state before changing encoder scaling.
01
Product Introduction

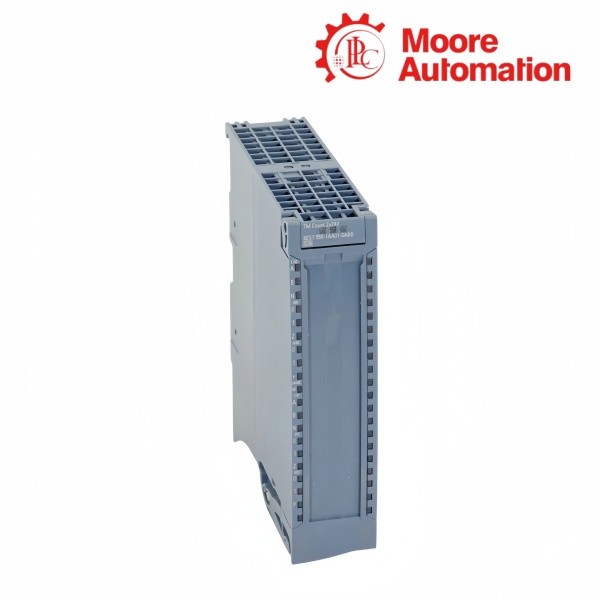

Siemens 6ES7550-1AA01-0AB0 is the SIMATIC S7-1500 TM Count 2x24V technology module for two independent 24 V pulse or incremental encoder channels. Each channel combines the encoder input with three digital inputs and two 0.5 A sourcing digital outputs, placing measurement and local control signals in one module.
Depending on its parameter set, Siemens 6ES7550-1AA01-0AB0 can count pulses, evaluate frequency or speed, acquire position and use hardware gates, capture inputs or comparison outputs. The CPU receives both the process values and the status needed to determine whether a count is running, captured or outside its configured comparison range.
Electrical installation of Siemens 6ES7550-1AA01-0AB0 is part of measurement accuracy. Encoder supply, signal reference, shield connection and cable routing must match the selected encoder, while gate and output circuits must be checked separately so a counting problem is not masked by an unrelated control-input fault.
02
Technical Information
| Brand | Siemens |
|---|---|
| Model | 6ES7550-1AA01-0AB0 |
| Product Name | SIMATIC S7-1500 TM Count 2x24V |
| Country | Germany |
| Counting Channels | 2 independent channels |
| Encoder Interface | 24 V pulse or incremental encoder |
| Digital Inputs | 3 per channel |
| Digital Outputs | 2 per channel; sourcing |
|---|---|
| Output Current | 0.5 A per digital output |
| Measurement Functions | Counting, frequency, speed and position |
| Control Functions | Hardware gate, capture and comparison output |
| Front Connection | Module front connector and shield support |
| Dimensions (W × H × D) | 35 × 147 × 129 mm |
| Approximate Weight | 300 g |
03
Monitoring and Control
Siemens 6ES7550-1AA01-0AB0 evaluates each encoder channel together with gate, capture and comparison signals, allowing the application to see how the measured value was produced.
Capture and measurement
Capture inputs on Siemens 6ES7550-1AA01-0AB0 can store a count at an event while frequency, speed or position values continue according to the configured mode. The program must read the corresponding status with the value.
Comparison outputs
The digital outputs of Siemens 6ES7550-1AA01-0AB0 can react to configured comparison conditions. Their field supply and load path remain separate checks from the counter input itself.
04
Installation Highlights
Install Siemens 6ES7550-1AA01-0AB0 by treating the encoder circuit as a measurement path: mount and shield first, wire references and control signals second, then validate counts against known movement.
1
1. Mount and shield
Seat Siemens 6ES7550-1AA01-0AB0 and its front connector, provide the specified shield support, and route encoder cables away from switching conductors. Bond the shield according to the cabinet grounding design.
2
2. Terminate channel circuits
Connect encoder signals, 24 V supply, reference, gate/capture inputs and output loads for each Siemens 6ES7550-1AA01-0AB0 channel. Keep channel 0 and channel 1 conductors identifiable throughout the terminal schedule.
3
3. Verify direction and scale
Move or pulse the encoder through a known increment, then compare the Siemens 6ES7550-1AA01-0AB0 count, direction, frequency and physical movement. Test capture and comparison outputs only after the raw count path is correct.
05
Frequently Asked Questions
Why does Siemens 6ES7550-1AA01-0AB0 count in the wrong direction?
Check the encoder A/B signal order and the configured direction evaluation for Siemens 6ES7550-1AA01-0AB0. Prove direction with slow known movement before applying a software sign correction that could hide crossed wiring.
What causes an unstable frequency value on Siemens 6ES7550-1AA01-0AB0?
Inspect shield bonding, reference potential, cable separation and encoder signal quality at Siemens 6ES7550-1AA01-0AB0. Then compare the configured measurement time with the actual pulse frequency; a very short gate can magnify pulse-to-pulse variation.
Why is the count frozen on Siemens 6ES7550-1AA01-0AB0?
Verify the Siemens 6ES7550-1AA01-0AB0 hardware/software gate, enable command, operating mode and channel status. A valid encoder signal is not counted while the assigned gate remains closed.
How should a capture mismatch on Siemens 6ES7550-1AA01-0AB0 be diagnosed?
Compare the capture input edge, input filter and status handshake for Siemens 6ES7550-1AA01-0AB0. Read the captured value only after the corresponding event state confirms that the intended edge was stored.
Why does a comparison output on Siemens 6ES7550-1AA01-0AB0 stay off?
For Siemens 6ES7550-1AA01-0AB0, check the comparison threshold, output assignment, channel enable, external 24 V load supply and field return. The counter can reach the threshold even if the separate output circuit is incomplete.
What must be retained before replacing Siemens 6ES7550-1AA01-0AB0?
Retain the exact Siemens 6ES7550-1AA01-0AB0 article, hardware configuration, encoder type, count mode, scaling, gates, capture edges, comparison limits, addresses and terminal schedule. Reapply and test these settings channel by channel.
