Home>OTHER PRODUCTS>Rittal SK 3110.000 Enclosure Thermostat
Rittal SK 3110.000 Enclosure Thermostat

Rittal SK 3110.000 Enclosure Thermostat Item NO.: SK3110.000

Write a Review
US$ 1.00
Quantity
Stock ( 9999999 )
Add to Cart
Inquiry

Adding to cart succeed

0 item(s) in cart, Subtotal: US$ 0

Continue Shopping View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Rittal SK 3110.000 enclosure thermostat for controlling enclosure fans, heaters and heat exchangers, with a 5-60°C adjustment range and 35 mm support-rail mounting.
Request Price & AvailabilitySend the part number and quantity. Our team will confirm stock, condition, lead time and the best quotation.
  • MOQ: 1 piece
  • International shipping
  • 1-year warranty on eligible items
  • Fast response during business hours
Product Name Rittal SK 3110.000 Enclosure Thermostat
Item NO. SK3110.000
Weight 0.095 kg = 0.2094 lb = 3.3510 oz
Category OTHER PRODUCTS
Creation Time 2026-08-17

Rittal / Enclosure Climate Control

Rittal SK 3110.000 Enclosure Thermostat

A compact internal temperature controller for switching enclosure fans, heaters and heat exchangers, with a 5-60°C adjustment range and flexible 35 mm support-rail installation.

Product Overview

Direct enclosure temperature control in a compact format

Rittal SK 3110.000 is an enclosure internal thermostat designed for controlling fans, heaters and heat exchangers. It can also operate as a signal generator for monitoring the temperature inside an enclosure.

The thermostat uses a bimetallic controller with thermal feedback and a single-pole change-over quick-break contact. Its externally accessible screw terminal strip supports straightforward field connection, while the supplied adaptor provides flexible installation options.

5-60°CAdjustment range
24-230 V ACRated AC operating voltage
24-60 V DCRated DC operating voltage
Product Specifications

Official electrical, mechanical and installation data

Brand Rittal
Article number SK 3110.000
Product type Enclosure internal thermostat
Adjustment range 5-60°C
Rated operating voltage 24-230 V AC, single-phase; 24-60 V DC
Temperature-sensing element Bimetallic controller with thermal feedback
Contact configuration Single-pole change-over contact, quick-break switching element
Switching differential Approx. 1 K ± 0.8 K
Relative humidity Maximum 95%, non-condensing
Heating contact load Terminals 5-3: AC 10 (4) A, inductive load at cos φ = 0.6
Cooling contact load Terminals 5-4: AC 5 (4) A, inductive load at cos φ = 0.6
DC contact load Maximum 30 W
Rated impulse voltage 4 kV
Pollution degree 2
Connection wire AWG 20-14 copper, solid or multistranded; maximum 2.5 mm²
Tightening torque 0.45 Nm
Dimensions (W x H x D) 71 x 71 x 33.5 mm
Net / gross weight 0.095 kg / 0.12 kg
Colour / pack size RAL 7035 / 1 piece
Product Functions

Heating, cooling and enclosure monitoring control

01

Heating control

The heating connection uses terminals 5-3 and supports an AC contact load of 10 (4) A for an inductive load at cos φ = 0.6.

02

Cooling control

The cooling connection uses terminals 5-4 and supports an AC contact load of 5 (4) A for an inductive load at cos φ = 0.6.

03

Temperature signalling

In addition to controlling fans, heaters and heat exchangers, the thermostat can provide a switching signal for enclosure temperature monitoring.

Installation Highlights

35 mm rail mounting and documented terminal wiring

Rittal SK 3110.000 35 mm support rail installation diagram
Official Rittal SK 3110.000 clip-on installation illustrations for a 35 mm support rail to EN 50 022.

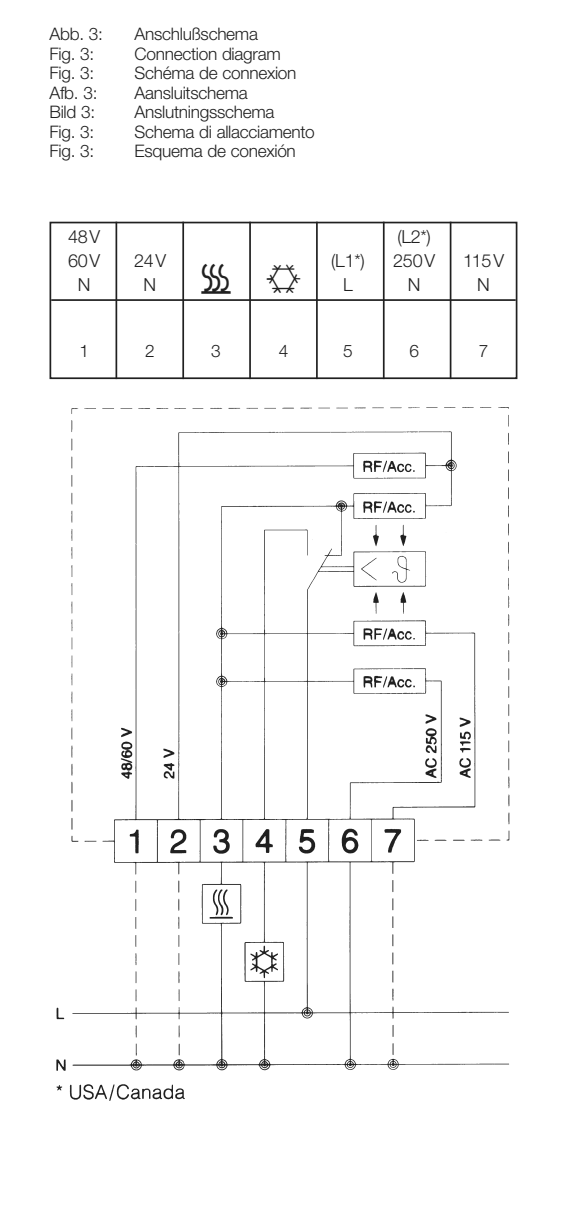

Rittal SK 3110.000 thermostat connection diagram
Official Rittal SK 3110.000 connection diagram showing terminals for supply, heating and cooling circuits.

Official installation guidance

  • Installation must be performed by fully trained personnel in accordance with the connection diagram and applicable safety requirements.
  • Use clip-on fastening on a 35 mm support rail to EN 50 022. The product page also specifies snap fastening in the enclosure section or on the mounting plate with the supplied adaptor.
  • Horizontal mounting is preferred. Position the thermostat in the upper part of the enclosure with maximum separation from enclosure heaters and other heat-loss sources.
  • Connect the integrated thermal feedback as shown in the official documentation to achieve the specified switching differential.
Frequently Asked Questions

Rittal SK 3110.000 technical FAQ

1. What equipment can the Rittal SK 3110.000 control?

Rittal specifies the thermostat for controlling enclosure fans, heaters and heat exchangers. It may also be used as a signal generator for enclosure internal temperature monitoring.

2. What is the temperature adjustment range?

The official adjustment range is 5-60°C, with a switching differential of approximately 1 K ± 0.8 K.

3. Which operating voltages are specified for SK 3110.000?

The rated operating voltages are 24-230 V AC, single-phase, and 24-60 V DC.

4. How is the thermostat mounted?

It supports vertical or horizontal mounting on a 35 mm support rail to EN 50 022. The official product information also identifies snap fastening in the enclosure section or on a mounting plate using the supplied adaptor.

5. What are the dimensions and weights of SK 3110.000?

The enclosure measures 71 x 71 x 33.5 mm. Official Rittal data lists a net weight of 0.095 kg and a gross weight of 0.12 kg.
