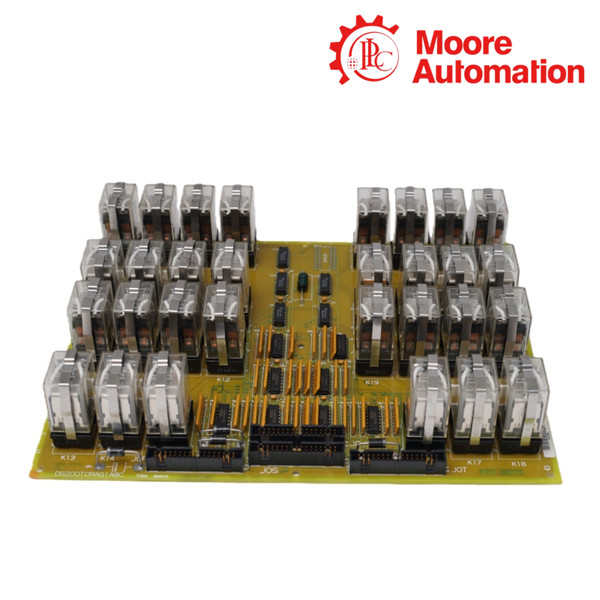

GE DS200TCRAG1A Relay Output Board

Mark V LM Relay Outputs

GE DS200TCRAG1A Relay Output Board

A Mark V LM relay output board family with up to 30 relays and defined TCDA, TCQE and terminal-board interfaces.

Product Overview

GE DS200TCRAG1A identifies the first functional-revision family of the TCRA Relay Output Board. Mark V LM digital I/O cores normally use two TCRA boards, installed at locations 4 and 5.

A full TCRA board carries up to 30 relays, K1 through K30. The special location-4 TCRA in the Q11 core uses only four relays under TCQE control for gas-manifold blow-off functions; other TCRA installations use the full relay complement.

TCDA writes relay commands through JO, and JS1 through JS8 connect the relay outputs to DTBC or DTBD terminal boards. Power-source and solenoid configuration is performed at those terminal boards, not in TCRA software.

Technical Specifications

Specification	Technical Data
Brand	GE
Model	DS200TCRAG1A
Product Type	Relay output board family
Country of Origin	United States
Control Platform	SPEEDTRONIC Mark V LM
Functional Acronym	TCRA
Standard Relay Complement	Up to 30 relays, K1 through K30
Typical Core Positions	4 and 5 in digital I/O cores
Command Interface	JO from TCDA; TCQE in the special Q11 location-4 arrangement
Terminal-Board Interfaces	JS1 through JS8 to DTBC or DTBD
Terminal-Board Configuration	Relay-power and solenoid selection at DTBC/DTBD
Software Configuration on TCRA	None
Reference Manual	GEH-6153
Model Listing	GE Vernova Intertek constructional report

Relay Output Function

Commanded contact and solenoid outputs

TCDA sends the relay open/close commands to TCRA through JO. The relay contacts then leave the board through JS1–JS8 for the associated DTBC or DTBD terminal board.

A standard board carries up to 30 relays.
Two TCRA positions are used in each digital I/O core.
The Q11 location-4 board is a documented four-relay exception.

Configuration and Integration

Output power choices are made at termination

TCRA itself has no software configuration. Hardware choices that power relay circuits or configure supported outputs as solenoids are made on the associated DTBC and DTBD terminal boards.

Keep the JO command source tied to the correct core location.
Retain JS1–JS8 terminal-board cable assignments.
Verify the full TCRA revision before replacement.

Technical Questions

Which output role does DS200TCRAG1A perform?

DS200TCRAG1A is the GE TCRA relay output board family for Mark V LM digital I/O cores.

How many relays can a standard DS200TCRAG1A board contain?

A standard DS200TCRAG1A board contains up to 30 relays, K1 through K30.

Which connector carries relay commands to DS200TCRAG1A?

JO carries the command signals from TCDA in the standard arrangement.

How do DS200TCRAG1A outputs reach field termination?

JS1 through JS8 connect the relay outputs to DTBC or DTBD terminal boards.

Is solenoid-power selection configured in DS200TCRAG1A software?

No. TCRA has no software configuration; the relevant hardware choices are made at the terminal boards.
