Documented for MVME162-020A.
Product Profile
MVME162-020A
- 25 MHz
- 4MB DRAM with programmable parity
- No SCSI or Ethernet
- MVME162
Model-Specific VME Configuration

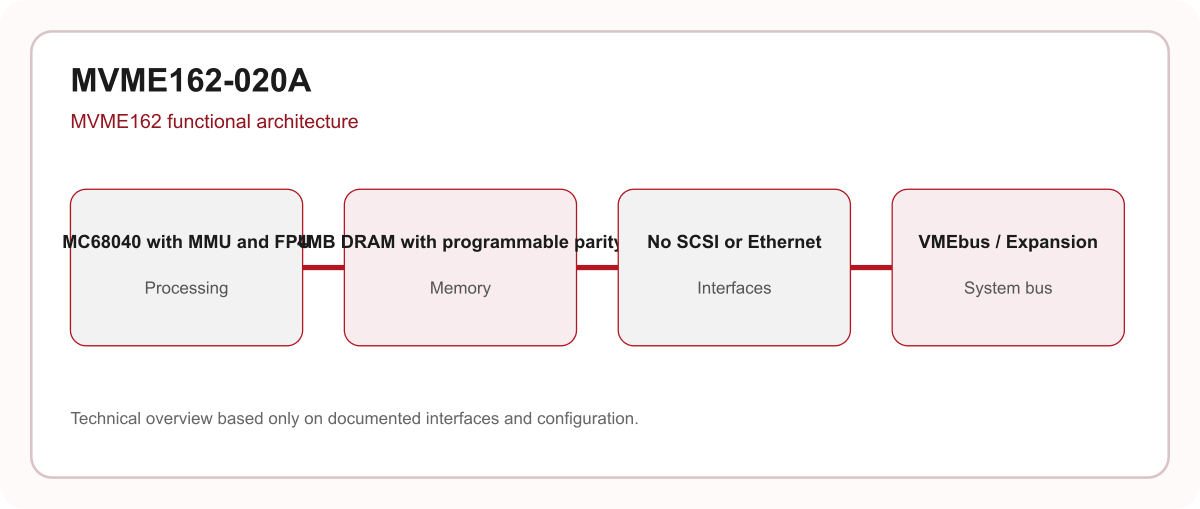

An A-revision designation of the 25 MHz MC68040 MVME162-020 configuration with 4MB DRAM and a VMEbus interface.
The data on this page follows the exact Motorola order designation and does not add family options that are absent from this configuration.
Technical Data
MVME162-020A Specifications
| Product family | MVME162 |
|---|---|
| Processor | MC68040 with MMU and FPU |
| Processor clock | 25 MHz |
| DRAM | 4MB DRAM with programmable parity |
| Local SRAM / NVRAM | 512KB battery-backed SRAM |
| Integrated I/O configuration | No SCSI or Ethernet |
| Serial interfaces | Two |
| SCSI interface | Not fitted |
| Ethernet interface | Not fitted |
| Revision notation | Motorola states that the A suffix denotes a major revision level |
| Form factor | 6U VMEbus embedded controller |
| Flash memory | 1MB |
| Nonvolatile memory | 8K × 8 NVRAM and time-of-day clock with battery backup |
| Expansion | Four IndustryPack interfaces |
| Timers | Six 32-bit timers and watchdog timer when VMEbus is present |
| VMEbus addressing/data | A16/A24/A32 and D8/D16/D32; D64 block transfer on supported VMEbus models |
| Operating temperature | 0 to 70 °C exit air with forced-air cooling |
| Storage temperature | -40 to 85 °C |
| Relative humidity | 5 to 90%, non-condensing |
| Power, +5 V | 3.5 A typical; 4.5 A maximum |
| Power, +12 V | 100 mA maximum |
| Power, -12 V | 100 mA maximum |
| Board dimensions | 233 × 160 × 17 mm |
| With connectors/front panel | 262 × 188 × 20 mm |
Operating Characteristics
Operating Characteristics for MVME162-020A
DRAM
Documented for MVME162-020A.
Processor
Documented for MVME162-020A.
I/O
Documented for MVME162-020A.
Typical Applications
Typical Applications for MVME162-020A
System-Level Use
MVME162-020A is intended for VMEbus embedded-control installations requiring the exact processor, memory and interface combination shown in Motorola documentation.
Configuration Control
Match the complete MVME162-020A designation before installation because processor, memory, SCSI, Ethernet and VMEbus options vary by order code.
Frequently Asked Questions
MVME162-020A FAQ
What processor is fitted to MVME162-020A?
MVME162-020A uses the documented MC68040 with MMU and FPU processor configuration at 25 MHz.
How much DRAM does MVME162-020A provide?
MVME162-020A provides 4MB DRAM with programmable parity.
Which integrated interfaces are documented for MVME162-020A?
MVME162-020A is documented with No SCSI or Ethernet.
What expansion architecture does MVME162-020A use?
MVME162-020A is a MVME162 embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
What should be verified before installing MVME162-020A?
MVME162-020A should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
