Documented Board Operation
The MVME147-023 configuration is defined by its processor clock, DRAM capacity, parity implementation and fitted SCSI/Ethernet interfaces. These order-code distinctions are preserved in the specification table.
Product Overview
MVME147-023 Configuration Overview
A 32 MHz MVME147 VMEbus processor module with 16MB parity DRAM, Ethernet and SCSI.
The specification below follows the exact Motorola order designation and excludes family options that are not documented for this configuration.
Product Specifications
MVME147-023 Technical Specifications
| Product family | MVME147 |
|---|---|
| Processor | MC68030 with MC68882 FPU |
| Processor clock | 32 MHz |
| DRAM | 16MB DRAM with parity |
| Local SRAM / NVRAM | 4K × 8 battery-backed CMOS RAM |
| Integrated I/O configuration | Ethernet and SCSI |
| Ethernet interface | Present |
| DRAM parity | Present |
| Processor family | MC68030 with MC68882 floating-point coprocessor |
| Form factor | Double-high VMEbus module |
| Firmware | 147Bug debugger/diagnostics in EPROM |
| Local nonvolatile memory | 4K × 8 CMOS RAM with battery backup |
| Timers | Two 16-bit tick timers and watchdog timer |
| Serial interfaces | Four EIA-232-D serial ports |
| Parallel interface | 8-bit Centronics-compatible parallel port |
| Storage interface | SCSI interface with DMA |
| VMEbus functions | System controller, master, interrupter and requester |
| Operating temperature | 0 to 55 °C incoming air with forced-air cooling |
Key Features
Key Features for MVME147-023
Model-Specific Resources
Ethernet interface: Present. DRAM parity: Present.
System Integration
System Integration for MVME147-023
Integration Guidance

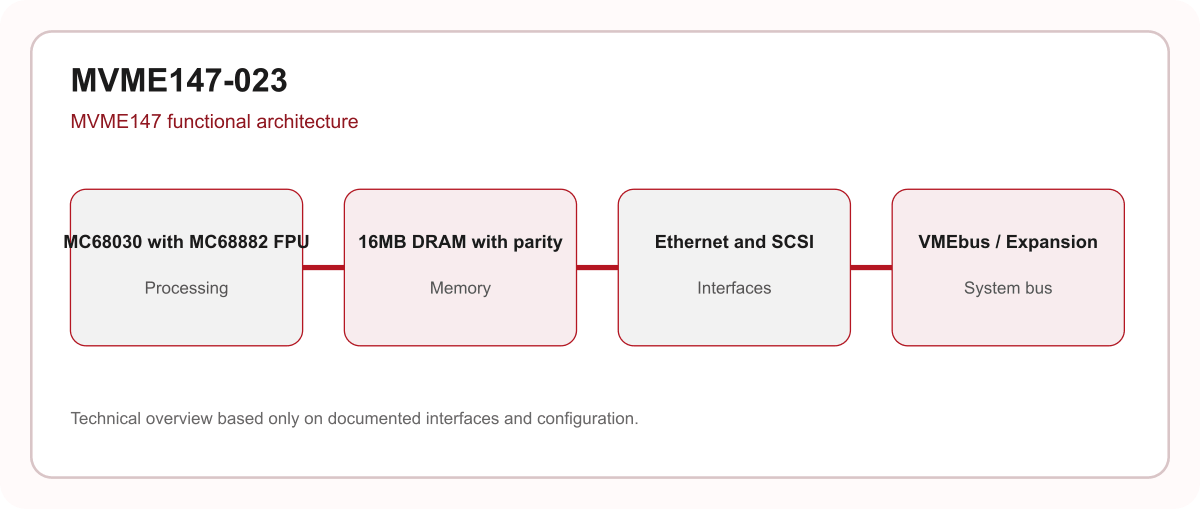

MVME147-023 integrates processor, local memory, serial/parallel I/O and VMEbus resources. Ethernet and SCSI availability follows the exact model designation rather than the wider family capability.
Configuration Control
Match the complete MVME147-023 designation before installation. Processor, memory, Ethernet, SCSI and VMEbus options vary by order code.
Frequently Asked Questions
MVME147-023 FAQ
What processor is fitted to MVME147-023?
MVME147-023 uses the documented MC68030 with MC68882 FPU processor configuration at 32 MHz.
How much DRAM does MVME147-023 provide?
MVME147-023 provides 16MB DRAM with parity.
Which integrated interfaces are documented for MVME147-023?
MVME147-023 is documented with Ethernet and SCSI.
What expansion architecture does MVME147-023 use?
MVME147-023 is a MVME147 embedded controller with the VMEbus and IndustryPack expansion resources stated in the official Motorola documentation.
What should be verified before installing MVME147-023?
MVME147-023 should be checked against the chassis power, airflow, jumper, serial-interface and transition-module requirements documented for this exact configuration.
