Product Description

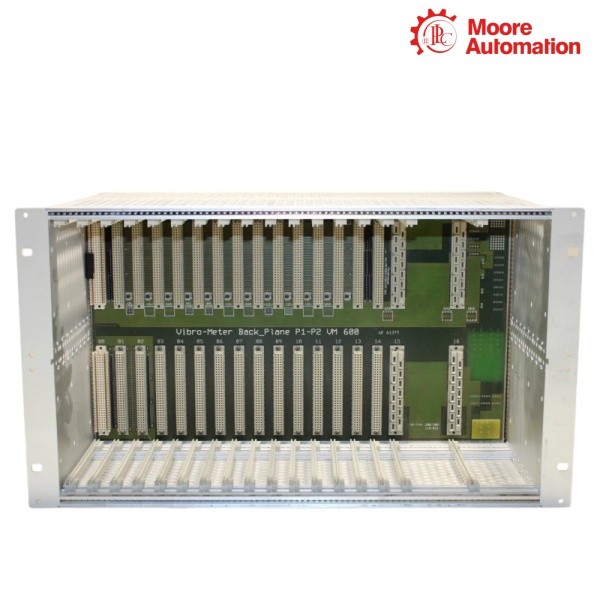

Meggitt Vibro-Meter ABE040 204-040-100-012 / ABE040 204-040-100-211 is a VM600 19-inch, 6U system rack. Its primary job is to house the VM600 card pairs and provide the rack-level backplane, power and field-connection structure.

Inside ABE040 204-040-100-012 / ABE040 204-040-100-211, front and rear card positions accommodate the selected VM600 processing and input/output modules. The VME-style rack bus carries the internal card data, while the rack power supply distributes the rails used by the installed modules.

The cabinet installation for ABE040 204-040-100-012 / ABE040 204-040-100-211 therefore depends on the actual card population, power-supply version and rear connector arrangement. The rack itself is the mechanical and electrical frame; it is not a measurement card or controller.

Product Specifications

Technical item	Specification
Brand	Meggitt Vibro-Meter
Product type	VM600 system rack
Product family	ABE040
Variant A	204-040-100-012
Variant B	204-040-100-211
Rack format	19-inch cabinet rack
Rack height	6U
Card arrangement	Front/rear card pairs
Bus structure	VM600 VME-style rack bus
Power function	Rack power distribution
Field connection	Rear I/O card connections
Installation	Permanent cabinet or panel mounting
Hardware scope	VM600 monitoring, protection and interface cards
Processing slots	12 front positions 03–14
Controller slots	2 front positions 00–01
Reserved slot	1 front position 02
Rear I/O slots	Up to 19 positions 00–18
Rear supply positions	Up to 4 positions 17–20
Power options	One or two RPS6U supplies, 330 W each
Power-check relay	±30 Vrms / ±42.4 Vac peak / 60 VDC; 4 AAC / 3 ADC
Operating temperature	0 to 70°C
Storage temperature	−40 to 85°C
Humidity	0–90% RH, non-condensing
Vibration/shock	10–55 Hz, 0.35 mm; 15 g, 11 ms half-sine
Use	Indoor use only

System Integration: Card Pair Positions

ABE040 204-040-100-012 / ABE040 204-040-100-211 supplies the rack positions that join the front processing cards to their rear interface cards.

Front position

The selected VM600 processing card occupies the front position in the card pair.

Rear position

The associated input/output card provides the field-side connection at the rear.

Rack bus

The internal bus links the card pair to the rack controller and other modules.

Installation Highlights: Cabinet and Power

ABE040 204-040-100-012 / ABE040 204-040-100-211 is installed as a 19-inch, 6U rack with the supply and rear connections arranged for cabinet wiring.

Cabinet boundary

The rack is fixed in the 19-inch cabinet or panel position.

Power route

The rack supply distributes the required rails to the installed VM600 cards.

Rear access

Field wiring and card connectors are reached from the rear of the rack.

Common Questions

What is ABE040 204-040-100-012 / ABE040 204-040-100-211?

ABE040 204-040-100-012 / ABE040 204-040-100-211 is a VM600 19-inch 6U system rack. It houses the card pairs and provides the rack bus and power structure; it is not an individual controller or measurement card.

How are front and rear cards related in ABE040 204-040-100-012 / ABE040 204-040-100-211?

The front position contains the processing card and the rear position contains its associated input/output card. The rack bus joins those two halves into one VM600 module path.

Where does field wiring enter ABE040 204-040-100-012 / ABE040 204-040-100-211?

Field wiring reaches the rear input/output connectors of ABE040 204-040-100-012 / ABE040 204-040-100-211. The front card handles the configured processing while the rear card provides the physical terminal interface.

Why does the card population matter for ABE040 204-040-100-012 / ABE040 204-040-100-211?

The rack bus and power distribution serve the actual card population installed in ABE040 204-040-100-012 / ABE040 204-040-100-211. A rack identifier by itself does not specify which monitoring or protection channels are fitted.

Can ABE040 204-040-100-012 / ABE040 204-040-100-211 be treated as a VM600 processing module?

No. ABE040 204-040-100-012 / ABE040 204-040-100-211 is the mechanical and electrical rack frame. The processing function belongs to the installed VM600 cards.

What should be documented with ABE040 204-040-100-012 / ABE040 204-040-100-211 during a cabinet survey?

Record the complete ABE040 PNR, rack position, power-supply arrangement, front/rear card pairs and rear field cables. That set describes the installed rack path.
