Universal channel assignment
Each supported channel is given the analog or digital role required by the connected field device in the engineering configuration.
HoneywellI/OProduct record
EXPERION PKS · CIOM-A UNIVERSAL I/O

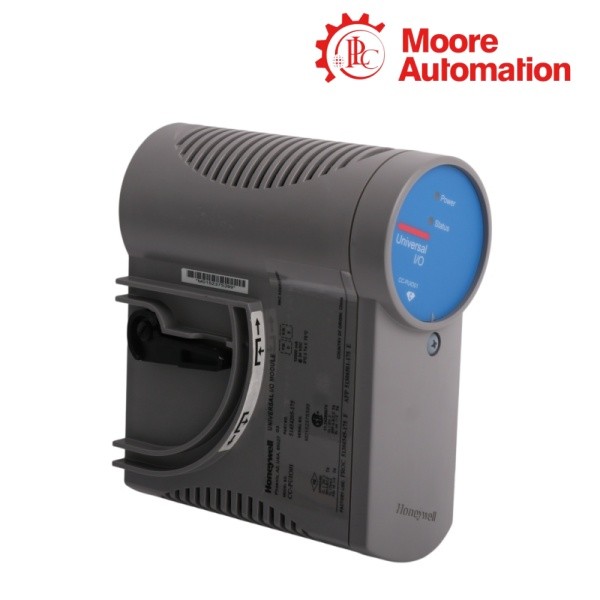

Honeywell CC-PUIO01 51454205-175 Series C Universal I/O Module
01
Product Description
Honeywell CC-PUIO01 51454205-175 is a Series C Universal I/O module in the CIOM-A family for Experion PKS systems. Its channels are assigned in software to the supported analog or digital signal role, allowing different field-signal types to be terminated within the same Series C I/O architecture.
Field conductors for Honeywell CC-PUIO01 51454205-175 land on the associated removable terminal hardware, while the module exchanges configured channel values, status and diagnostics with the controller through the Series C chassis. Channel type and engineering units are established in the control configuration rather than by moving a hardware selector on the module.
During commissioning, Honeywell CC-PUIO01 51454205-175 is checked channel by channel: the configured I/O type must match the connected transmitter or load, terminal polarity and field power must follow that signal type, and the controller must show the expected value and diagnostic state before the loop is released.
02
Technical Data
| Brand | Honeywell |
|---|---|
| Model | CC-PUIO01 51454205-175 |
| Product Name | Series C Universal I/O Module |
| Country | United States |
| Product Family | CIOM-A |
| Control System | Experion PKS |
| Channel Function | Software-configurable universal I/O |
| Supported Signal Classes | Analog and digital field signals supported by the configured channel type |
| Field Termination | Associated removable terminal block / Series C termination hardware |
| Module Communication | Series C chassis and controller path |
| Channel Setup | Configured in system engineering software |
| Diagnostics | Channel and module status reported to the controller |
| Replacement Requirement | Restore exact channel configuration and terminal assignment |
| Ordering Reference | 51454205-175 |
03
Product Functions
Honeywell CC-PUIO01 51454205-175 converts individually configured field circuits into controller I/O points without dedicating the entire module to one signal type.
Signal and status exchange
The module transfers the process value or discrete state together with channel status so the controller can distinguish a live measurement from a diagnosed fault.
Configuration retention
The control-system project records each channel type and range, allowing a replacement module to be commissioned against the documented loop assignment.
04
Operating Characteristics
Honeywell CC-PUIO01 51454205-175 operates as a mixed-signal interface whose electrical behavior follows the configured channel role and connected termination.
01
Channel-specific behavior
A channel configured for a transmitter input is evaluated differently from a digital contact or output, so the software type must match the field circuit.
02
Shared module, separate loops
Multiple signal roles can coexist on one module while each loop retains its own terminal position, status and controller tag.
03
Commissioned operating state
A loop is accepted only after polarity, field power, configured type, live value and diagnostic state agree with the field device.
05
Product Q&A
Why does Honeywell CC-PUIO01 51454205-175 show a bad channel after replacement?
For Honeywell CC-PUIO01 51454205-175, confirm that the restored channel type, range, terminal position, polarity and field power match the connected loop.
Can Honeywell CC-PUIO01 51454205-175 mix analog and digital signals on one module?
Honeywell CC-PUIO01 51454205-175 belongs to the universal I/O family, so supported channel roles are assigned individually in the system configuration.
What should be recorded before removing Honeywell CC-PUIO01 51454205-175?
Before removing Honeywell CC-PUIO01 51454205-175, export the channel configuration and record terminal numbers, loop tags, signal types and every field-power source.
Why is a channel type important when wiring Honeywell CC-PUIO01 51454205-175?
The configured role on Honeywell CC-PUIO01 51454205-175 determines how the circuit is interpreted and which electrical connection is valid for that loop.
How is Honeywell CC-PUIO01 51454205-175 checked after commissioning?
Check Honeywell CC-PUIO01 51454205-175 one loop at a time by applying or observing the field signal, confirming the controller value and reviewing channel diagnostics.
Can the order number alone confirm every Honeywell CC-PUIO01 51454205-175 detail?
Use Honeywell CC-PUIO01 51454205-175 as one complete product record and verify the installed termination, chassis and configured channel map before replacement.
