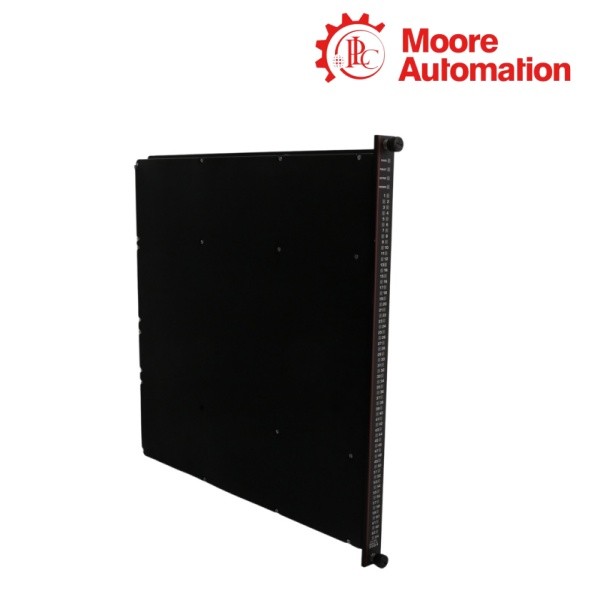

Name: Triconex 3201 / 3211 | Trident communication and communications integration modules
Brand: TRICONEX
SKU: 2918962
Price: 1 USD
Availability: InStock

Model Overview

For Trident communication service, the Triconex 3201 / 3211 pair provides two distinct module roles. Triconex 3201 is the Trident Communication Module (CM), while Triconex 3211 is the Trident Communications Integration Module (CIM); both sit in the Trident system communication path rather than in the field I/O channel path.

At the external interface, Triconex 3201 / 3211 divide the communication roles: the 3201 CM carries Trident data through three serial ports and two Ethernet ports, while the 3211 CIM provides the corresponding integration role. The serial side supports Modbus master or slave service, and the network side carries TCP/IP, TSAA, TriStation, SOE, HMI, OPC, printer, peer, and time-synchronization traffic rather than field I/O.

Within the pair, Triconex 3201 / 3211 separate communication status from Trident field I/O. On Triconex 3201, Pass, Fault, Active, and lock indicators describe the module, while TX/RX or Link/TX/RX indicators identify activity on the serial and network paths; the port role therefore determines which cable and protocol enter the communication path.

Technical Details

Technical Item	3201 / 3211
Brand	Triconex
Product Type	Communication / communications integration module
System	Trident
Variants	3201 CM; 3211 CIM
Serial Ports	Three on CM 3201
Network Ports	Two Ethernet network ports on CM 3201
Serial Protocol	Modbus master or slave
Network Protocols	TCP/IP, TSAA, TriStation
SOE Support	Supported on network services
Peer Communication	Trident and Tricon peer-to-peer
Time Synchronization	Supported over network ports
Printer Service	JetDirect DLC/LLC service
Front Indicators	Pass, Fault, Active, lock, TX/RX, Link
Field I/O	Not a field signal module

Communication and Connectivity

Triconex 3201 / 3211 move Trident data to external serial and Ethernet services; they do not replace a field input or output module.

Serial services

The CM 3201 serial ports can operate as Modbus master or slave connections.

Ethernet services

The two network ports carry TCP/IP, TSAA, TriStation, SOE, HMI, OPC, and peer traffic.

Time and peer data

Network ports also support time synchronization and peer-to-peer communication between Trident and Tricon systems.

Monitoring and Control

Triconex 3201 gives the technician port-level indicators so the controller, serial, and network states can be separated during checks.

Module state

Pass, Fault, Active, and lock indicators show the module condition.

Serial activity

TX/RX indicators are provided for each serial port.

Network activity

Link and TX/RX indicators are provided for Net 1 and Net 2.

Customer Questions

What is the functional difference between Triconex 3201 / 3211 as a pair and their CM/CIM roles?

For Triconex 3201 / 3211, Triconex 3201 is the Trident Communication Module (CM), while Triconex 3211 is the Communications Integration Module (CIM). They are two roles in the Trident communication path, not two names for one field I/O card.

Which physical ports belong to CM 3201 in the Triconex 3201 / 3211 pair?

For Triconex 3201 / 3211, The CM 3201 provides three serial ports and two Ethernet network ports. The serial and network counts should not be transferred to 3211 without its own hardware record.

How should the serial links be assigned in Triconex 3201 / 3211?

For Triconex 3201 / 3211, The serial ports on Triconex 3201 can operate as Modbus master or slave connections. The selected port role determines how the external serial device is represented in the communication path.

Which services use the Ethernet ports on Triconex 3201 / 3211?

For Triconex 3201 / 3211, The network ports carry TCP/IP, TSAA, TriStation, SOE, HMI, OPC, printer, peer-to-peer, and time-synchronization services. These are communication services rather than field input or output points.

What can a technician read from the front indicators on Triconex 3201 / 3211?

For Triconex 3201 / 3211, Pass, Fault, Active, and lock show module state, while TX/RX indicators show serial activity and Link/TX/RX identify Net 1 and Net 2 activity. The indicators therefore separate module status from port traffic.

Why is Triconex 3201 / 3211 kept outside the field I/O path?

Triconex 3201 / 3211 move controller data to serial and Ethernet services; they do not convert a field sensor or switch a field load. The cable and protocol assignment must follow the communication port used.
