Command distribution
The output IOM presents thirty-two commands to the IOTA. Each pair is routed to one MTL4521 rather than sharing an undefined common field path.
HoneywellSeries C I/O
Verified product record

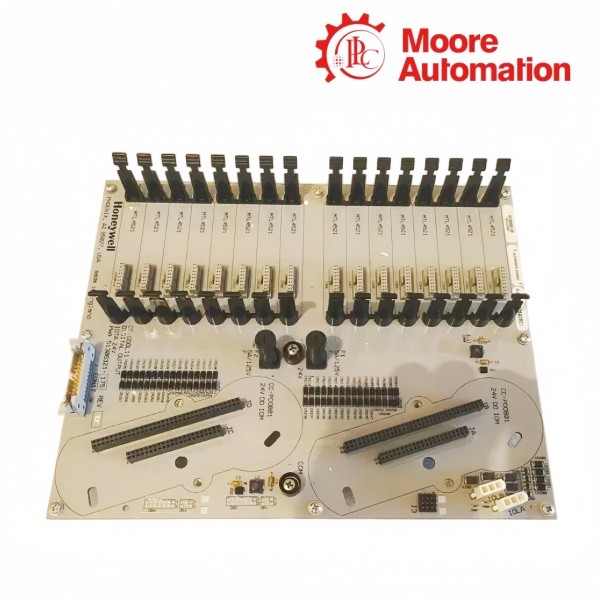

Honeywell CC-GDOL11 51306321-175 Galvanically Isolated Digital Output IOTA
01
Product Overview
Honeywell CC-GDOL11 51306321-175 is a Series C galvanically isolated digital-output IOTA that organizes thirty-two 24 V DC output points between field wiring, plug-in isolators and the digital-output IOM. Its main responsibility is to keep hazardous-area load wiring separated from the control-side output commands while presenting the full output set through one IOTA assembly.
Across Honeywell CC-GDOL11 51306321-175, sixteen MTL4521 isolators each serve a pair of output positions. The 12-inch redundant IOTA keeps both output paths available to the installed IOM arrangement, while the isolators translate the logic command into the isolated 24 V field circuit and expose line-fault or output-state indications at the isolator face.
When an expander is required, Honeywell CC-GDOL11 51306321-175 links to the documented CC-SDXX01 assembly rather than adding unverified field terminals to the base IOTA. Unused positions take the specified MTL4599 dummy module, preserving the intended connector and slot arrangement.
02
Technical Specifications
Exact-model engineering data
| Brand | Honeywell |
|---|---|
| Model | CC-GDOL11 51306321-175 |
| Product Name | Galvanically Isolated 24 V DC Digital Output IOTA |
| Country | United States |
| System Family | Series C I/O |
| Output Count | 32 digital outputs |
| Field Voltage | 24 V DC source-output circuits |
| IOTA Format | 12-inch redundant IOTA |
| Isolator Population | 16 × MTL4521; two outputs per isolator |
| Isolator Supply | 20 to 35 V DC field path |
| Current Consumption | 90 mA at 24 V maximum per MTL4521 |
| Power Dissipation | 1.4 W at 24 V maximum per MTL4521 |
| Status Functions | Output-state, line-fault and power indications |
| Expander Interface | Supports documented CC-SDXX01 expander |
| Unused Positions | MTL4599 dummy isolator |
03
Product Functions
Honeywell CC-GDOL11 51306321-175 divides the output path into command, isolation and field-load stages so a control-side state does not bypass the documented hazardous-area interface.
Isolated load drive
Each isolator converts its assigned logic state into the documented 24 V field-output circuit, keeping the controller connector and load wiring on opposite sides of the isolation stage.
Expansion path
Where the installation requires the documented expander, the base IOTA passes the assigned output connection to CC-SDXX01 without changing the isolator identity.
04
Diagnostics and Protection
Fault checks on Honeywell CC-GDOL11 51306321-175 are performed at the isolator and wiring path instead of treating one healthy IOM indication as proof of all thirty-two field circuits.
Open-wire indication
The supported isolator reports the line-fault condition so an open load path can be separated from a logic command that is simply off.
Short-circuit boundary
A shorted field circuit is contained at its assigned isolator/output path; commissioning checks the affected pair before replacing the complete IOTA.
Power and state LEDs
Power, output-state and line-fault indications are read together, allowing the technician to distinguish missing field power from a commanded output condition.
05
Frequently Asked Questions
How do I confirm the isolator quantity for Honeywell CC-GDOL11 51306321-175?
Honeywell CC-GDOL11 51306321-175 uses sixteen MTL4521 isolators for thirty-two outputs, so each isolator serves two output positions.
Why can Honeywell CC-GDOL11 51306321-175 show a command but not energize the load?
On Honeywell CC-GDOL11 51306321-175, compare the output-state, line-fault and power indications, then check the assigned field supply and load loop rather than assuming the IOM command reached the field circuit.
Can Honeywell CC-GDOL11 51306321-175 use an arbitrary spare isolator?
No. Honeywell CC-GDOL11 51306321-175 is documented with MTL4521 output isolators and MTL4599 dummy modules for unused positions; the slot function must match the installed part.
What is checked before replacing Honeywell CC-GDOL11 51306321-175?
Before replacing Honeywell CC-GDOL11 51306321-175, record the redundant IOM arrangement, isolator locations, field conductors and any CC-SDXX01 expander connection with all affected power removed.
When does Honeywell CC-GDOL11 51306321-175 need the expander?
Honeywell CC-GDOL11 51306321-175 uses the CC-SDXX01 only where the documented output installation requires that expansion path; it is not a generic way to add unrelated field points.
How should Honeywell CC-GDOL11 51306321-175 be commissioned after service?
For Honeywell CC-GDOL11 51306321-175, prove representative outputs through both IOM paths, confirm field voltage at the assigned load and verify that fault indications clear after the wiring condition is corrected.
