General Electric IC693CPU374 PLUS Processor Module: A Performance Benchmark and Reliable Choice in Industrial Automation

2026-03-30

Deeply rooted in industrial automation, the GE IC693CPU374 PLUS redefines the benchmark for control cores.

In the global wave of industrial automation upgrading towards intelligence and networking, the stability and efficiency of core control modules directly determine the operational efficiency and safety of production lines. As a star product of GE's Series 90-30 series, the IC693CPU374 PLUS processor module, with its powerful computing capabilities, flexible communication interfaces, and excellent industrial adaptability, has become the preferred control core in power, petrochemical, rail transportation, and manufacturing industries since its launch. It continuously provides reliable and efficient automation solutions for various industrial scenarios, helping companies achieve intelligent upgrades to production lines and maximize the value of existing equipment.

Currently, the upgrading of manufacturing equipment has entered a "dual-track" phase. On the one hand, national policies are driving the security upgrade of industrial control systems; on the other hand, SMEs face budget constraints for technological transformation. The GE IC693CPU374 PLUS, with its mature technical architecture, broad compatibility, and reusability, has become a key bridge connecting existing equipment and intelligent upgrades. It can provide reliable spare parts support for aging production lines and serve as the core controller for medium-sized automation systems, balancing practicality and economy, and has won high recognition from automation professionals worldwide.

Core Advantages Highlighted, Unlocking Multiple Functions in Industrial Control

The core competitiveness of the GE IC693CPU374 PLUS processor module stems from its design philosophy deeply aligned with industrial scenarios and its comprehensive functional configuration. As a single-slot high-performance CPU module for the Series 90-30 PLC platform, this product features an advanced processor architecture, powerful computing speed, and the ability to quickly execute complex control logic. Its typical scan rate reaches 0.15ms/1k logic, significantly improving the real-time performance and accuracy of production line control, meeting the control needs of medium to large-scale automation systems.

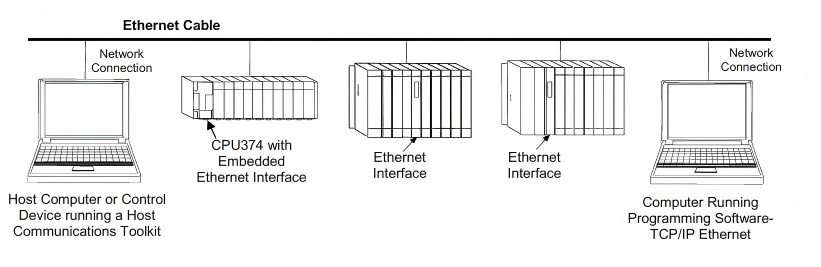

Its built-in enhanced Ethernet interface is a major highlight, supporting TCP/IP communication protocols and seamlessly connecting to Series 90, PACSystems, and VersaMax PLCs, as well as host computers running Host Communications Toolkit, CIMPLICITY software, and TCP/IP-based programming software, enabling multi-device interconnection and efficient data transmission. Simultaneously, this interface adopts the GE Fanuc SRTP and Ethernet Global Data (EGD) protocols, relying on a four-layer TCP/IP protocol stack to ensure communication stability and security. It also features SRTP server functionality, responding to requests from programming software, SRTP application hosts, and other PLC clients, building a flexible industrial communication network.

Furthermore, the module supports expansion with up to three Series 90-30 Ethernet modules (IC693CMM321), further expanding communication capabilities and adapting to the networking needs of complex industrial scenarios. Its built-in web server function allows for remote PLC monitoring via a standard web browser. The preset English webpage includes a homepage, reference data tables, PLC fault tables, and I/O fault tables, facilitating real-time monitoring of equipment operating status and improving maintenance efficiency.

Flexible and adaptable to various scenarios, building a solid safety barrier for industrial operations

The GE IC693CPU374 PLUS processor module boasts exceptional environmental adaptability and scenario compatibility, making it widely applicable in various industrial scenarios such as manufacturing production line control, power equipment monitoring, petrochemical process control, and material handling. It operates stably in both harsh industrial environments with high temperatures and interference, and in precision production scenarios with extremely high control accuracy requirements.

The module features a robust industrial-grade design, with an operating temperature range of -40℃ to 85℃ and a storage temperature range of -40℃ to 85℃. It possesses characteristics such as electromagnetic interference resistance and vibration resistance, adapting to complex industrial environments and effectively reducing equipment failure rates. Simultaneously, it supports 2048 discrete I/O points and is equipped with 240KB of configurable user memory, allowing for flexible configuration of register memory, analog memory, and discrete memory blocks to meet the control needs of different scenarios, balancing flexibility and scalability.

In terms of equipment operation and maintenance, the module is equipped with comprehensive Station Manager functions, enabling online monitoring of Ethernet interfaces via the station management port or Ethernet cable. It provides interactive commands, internal statistical data viewing, anomaly log querying, and password security protection, facilitating rapid troubleshooting and configuration optimization. Firmware upgrades are convenient, allowing for simultaneous upgrades with the CPU firmware via WinLoader software tools, eliminating the need to restart the entire system and significantly reducing operation and maintenance costs and downtime.

Dual Protocol Support for EGD and SRTP Enhances Data Transmission Efficiency

The GE IC693CPU374 PLUS processor module excels in data communication, fully supporting Ethernet Global Data (EGD) and SRTP protocols to build an efficient and stable data transmission system. The EGD protocol supports up to 128 simultaneous data exchanges, configurable for production and consumer switching, and supports EGD exchange production and consumption using local subnet broadcast IP addresses. It can also synchronize the timestamps of production EGD exchanges via the SRTP protocol, achieving accurate data synchronization and efficient transmission.

The SRTP protocol supports COMMREQ-driven channel commands, enabling the establishment of new channels, termination of existing channels, and querying of channel status. The module simultaneously supports up to 16 SRTP client connections and 20 SRTP server connections, and can proactively initiate data transmission with other SRTP-compatible devices in the network, further enhancing communication flexibility. The synergistic effect of the two protocols allows the module to achieve rapid data interaction between devices, providing data support for intelligent decision-making in industrial control systems.

Easy Configuration and Maintenance, Reducing Enterprise Operation and Maintenance Costs

To enhance the user experience, the GE IC693CPU374 PLUS processor module features an easy-to-configure and maintain design. It supports configuration using Machine Edition Logic Developer-PLC programming software (version 5.00 SP3 Hot Fix 3 and above) and is also compatible with VersaPro software (though some enhanced features are unavailable), catering to different user operating habits. The configuration process is simple and easy to understand, including assigning temporary IP addresses, configuring Ethernet interface features, and EGD configuration. An optional RS-232 port is available for local station management, and advanced parameter configurations can be imported via ASCII parameter files to adapt to different configuration requirements.

The module features built-in non-volatile memory, automatically backing up the latest Ethernet configuration and Advanced User Parameters (AUP). Even if the PLC system is reset, the configuration can be quickly restored, ensuring stable system operation. The front of the module is equipped with eight LED indicators, a power switch, an Ethernet reset button, and two Ethernet ports. Three of the Ethernet indicators (EOK, LAN, STAT) display interface status, network traffic, and abnormal events through different states (solid on, off, slow flashing, fast flashing). The 100 and LINK indicators on the two ports display network speed and connection status, allowing operators to quickly assess the equipment's operating status.

Technical Specifications

As an industrial-grade high-performance processor module, the GE IC693CPU374 PLUS's technical specifications fully meet the needs of industrial control. Key parameters are as follows:

1. Processor: Employs a high-performance processor with a processing speed of 133MHz and a typical scan rate of 0.15ms/1k logic.

2. Memory Configuration: 240KB configurable user memory, register memory (%R) configurable from 128 to 32640 words, 1280-bit global memory, and 28 system registers.

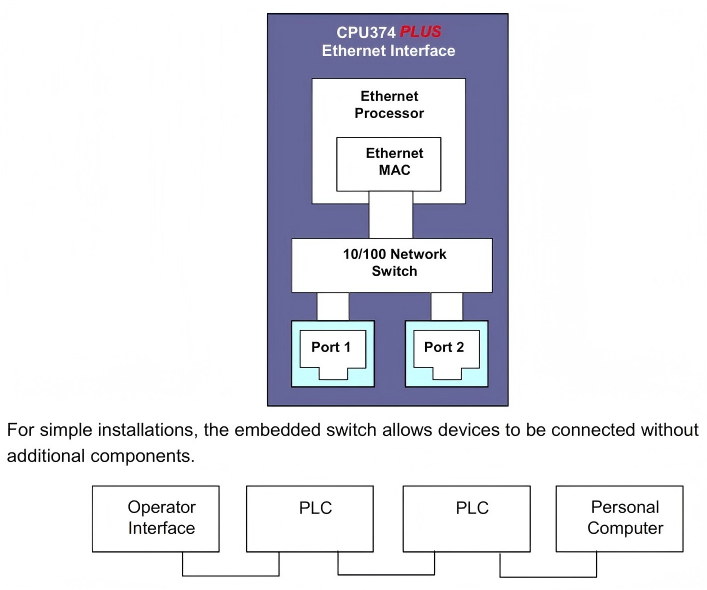

3. Communication Interface: Built-in two automatic sensing 10BaseT/100BaseTX RJ-45 shielded twisted-pair Ethernet ports, supporting 10/100Mbps speeds, with auto-negotiation, speed sensing, and cross-detection functions. It can be directly connected to switches, hubs, or repeaters without external transceivers; supports RS-485 serial port (external power required), compatible with SNP/SNP X protocols.

4. Protocol Support: Supports SRTP, EGD, and Modbus. TCP and other protocols can be used to synchronize timestamps via SNTP.

5. Expandability: Supports up to 3 IC693CMM321 Ethernet modules for expansion, connecting up to 8 backplanes (1 CPU + 7 expansion/remote backplanes).

6. I/O Capacity: Supports up to 2048 discrete I/O points.

7. Power Requirements: 5VDC power supply, 7.4W power consumption.

8. Environmental Parameters: Operating temperature 0-60℃, storage temperature -40-85℃, industrial-grade protection design, resistant to electromagnetic interference.

9. Other Features: Built-in Web server, station management functions, supports online firmware upgrades, equipped with an Ethernet restart button (anti-accidental touch design), external MAC address label for easy installation and recording.

Conclusion – Summarizing Value and Application Significance

In the context of continuous upgrading of the industrial automation industry and accelerated iteration of existing equipment, the General Electric IC693CPU374 PLUS processor module, with its powerful computing performance, flexible communication capabilities, excellent environmental adaptability, and convenient operation and maintenance features, has become a core benchmark product for industrial control systems. This module not only meets the control needs of medium to large-scale automation systems, providing stable and efficient control solutions for various industrial scenarios, but also serves as a high-quality spare part for aging production lines, helping companies reduce upgrade costs, extend equipment lifespan, and efficiently revitalize existing assets.

Compared to similar products, the GE IC693CPU374 PLUS combines compatibility, reliability, and scalability. Its dual EGD and SRTP protocols, built-in web server, and convenient configuration and maintenance effectively improve production line operating efficiency, reduce maintenance costs, and adapt to application needs in power, petrochemical, and manufacturing industries, providing strong support for enterprise intelligent upgrades.
