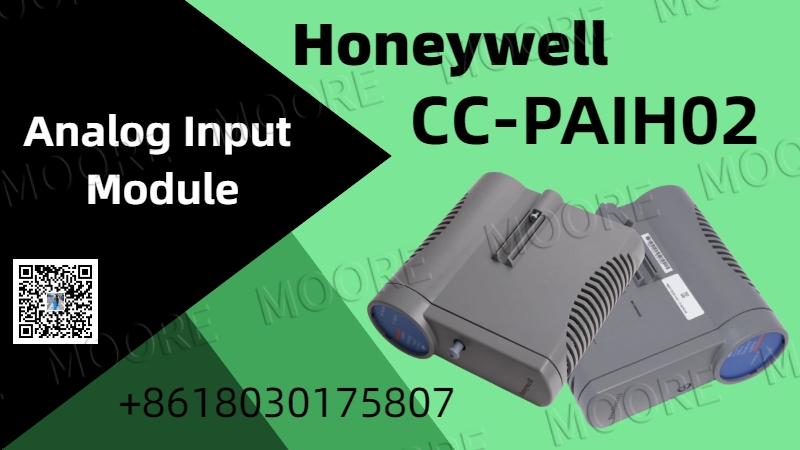

CC-PAIH02 HART Analog Input Module: The Core of High-Precision Signal Acquisition for Industrial Process Control

2026-04-17

Core Function: A Versatile Signal Receiver for Industrial Sites

As a professional HART-compatible analog input module, the CC-PAIH02 serves as a crucial bridge connecting field sensors and the control center in industrial automation systems. Its core function focuses on the accurate reception and preliminary processing of various standard analog signals from industrial sites. The module can directly acquire high-level current and voltage signals output from transmitters and sensors, fully compatible with 4-20mA current signals from two-wire or self-powered transmitters, as well as various voltage signal specifications such as 0-5V, 1-5V, and 0.4-2V, meeting the acquisition needs of key process parameters such as temperature, pressure, level, and flow rate in industries such as chemical, power, and petrochemical.

At the signal transmission and interaction level, the module deeply integrates the HART communication protocol, enabling it to work collaboratively with multi-variable smart instruments and multiple modems. This allows for rapid acquisition of control variables and bidirectional data interaction, ensuring real-time transmission of analog signals while also acquiring the operating status and diagnostic information of field devices through digital communication, providing fundamental data support for the intelligent operation of industrial systems. Simultaneously, the module is compatible with IOTA accessories such as DC-TAIXx1 and DC-TAIDx1, allowing for flexible expansion of channel functions and free switching between differential input and pure voltage input to meet the signal acquisition requirements of different field locations.

Core Features: High Reliability and Intelligent Support

The CC-PAIH02, with its multiple core features, is the preferred solution for signal acquisition in harsh industrial environments. It ensures stable system operation from multiple dimensions, including self-diagnosis, anti-interference, and safety protection. Its advantages are reflected in nine key dimensions:

• Full-dimensional self-diagnostic capability: Real-time monitoring of the module's own operating status, signal transmission links, and field device connections allows for timely fault detection and feedback, reducing system maintenance complexity.
• Support for optional redundancy design: Redundant architectures can be built according to the reliability requirements of industrial systems, avoiding signal acquisition interruptions caused by single-module failures and improving overall system availability.
• Equipped with open-circuit detection: Accurately identifies open-circuit faults in signal lines and uses this diagnostic function to implement process variable (PV) protection, preventing control misjudgments due to open circuits.
• Provides non-flammable field power, meeting the power supply requirements of explosion-proof scenarios and adapting to industrial sites with flammable and explosive risks, such as chemical and oil/gas industries.
• Native support for the HART protocol: Compatible with multi-variable intelligent instruments, enabling rapid acquisition of various control variables and supporting remote device parameter configuration and fault diagnosis.
• High-speed loop scanning capability: 50ms The high input scan rate ensures real-time acquisition and transmission of field signals, guaranteeing rapid response from the control system.

A 16-bit high-precision A/D converter enables accurate conversion of analog signals to digital signals, providing high-resolution raw data for subsequent data processing.

A robust anti-interference design effectively suppresses common-mode and differential-mode interference in industrial environments, ensuring accurate signal acquisition.

Overvoltage protection capability allows it to withstand a maximum input voltage of ±30V, preventing module damage caused by abnormal voltage surges and enhancing equipment durability.

These features work synergistically, enabling the CC-PAIH02 to adapt to complex and harsh industrial environments while meeting the demands of intelligent, high-precision signal acquisition, making it a highly reliable component in industrial process control.

Technical Specifications: Robust Support for Precise Data Acquisition

The high performance of the CC-PAIH02 relies on its rigorously designed core technical specifications. From channel configuration and conversion accuracy to anti-interference capabilities, it establishes a solid technical foundation for high-precision signal acquisition. Key core parameters are as follows:

• Input Channels: Equipped with 16 differential input channels. Channels 13-16 can be flexibly switched between differential and single-ended voltage input via IOTA accessory jumpers. Channels 1-16 can all achieve pure voltage input when paired with a DC-TAIDx1 IOTA adapter, offering high flexibility in channel configuration.
• Conversion Accuracy: 16-bit A/D converter resolution. Under a standard operating temperature of 23.5℃±2℃, hardware accuracy reaches ±0.075% of full scale. Within a wide temperature range of 0-60℃, accuracy remains at ±0.15% of full scale, meeting the requirements of high-precision industrial measurements.
• Anti-interference Performance: Common-mode rejection ratio reaches 70dB (500Ω source unbalanced) within the DC to 60Hz frequency range, with inter-channel crosstalk of [missing information]. - 60dB, 19dB differential mode rejection ratio at 60Hz, effectively resisting electromagnetic interference and signal crosstalk in industrial environments, ensuring the purity of the acquired signal;
• Input characteristics: Voltage input impedance >10MΩ, ensuring lossless acquisition of voltage signals; 4-20mA current signals are acquired through a 250Ω resistor conversion, conforming to industrial standards; Common mode voltage tolerance range is -6 to +5V peak, adapting to complex voltage environments;
• Filtering and scanning: Employing a single-pole RC low-pass filter with a -3dB cutoff frequency of 6.5Hz, effectively filtering out high-frequency interference signals; a 50ms input scan rate enables rapid cyclic acquisition of 16 channels, ensuring real-time signal transmission.
• Furthermore, the module's parameters are designed with actual industrial requirements in mind, such as a maximum lossless input voltage of ±30V and channel function expansion for compatibility with different IOTA accessories, allowing the module to maintain high accuracy while possessing strong field adaptability.
• Flexible Configuration: Channel Function Expansion Adaptable to Multiple Scenarios

A core advantage of the CC-PAIH02 lies in its highly flexible channel configuration capabilities. By pairing it with the DC-TAIXx1 and DC-TAIDx1 IOTA accessories and using simple jumper connections, users can freely switch between channel input types to meet the signal acquisition needs of various industrial environments. Three core configuration modes are as follows:

• Standard Differential Input Mode: The module supports 16 differential inputs by default. No additional configuration is required; it can directly acquire differential signals from the field, effectively suppressing common-mode interference. This is suitable for scenarios with long signal transmission distances and significant field interference, such as pressure and flow signal acquisition in petrochemical pipelines.
• 13-16 Channel Differential/Voltage Switching: When paired with the DC-TAIXx1 IOTA, the low-side inputs of channels 13-16 are connected to the system common terminal by default. Disconnecting this jumper enables differential input. Simultaneously, the 250Ω voltage of these four channels...

The load resistor is connected to the input terminal via a jumper. Disconnecting the jumper allows direct voltage signal acquisition, enabling flexible switching between single-channel functions. Full-channel voltage input mode: When paired with the DC-TAIDx1 IOTA, the 250Ω load resistors for channels 1-16 of the module are connected via jumpers. Users can disconnect the jumper for any channel as needed to switch that channel to pure voltage input mode, adapting to field sensing devices that only output voltage signals, such as voltage-type temperature sensors and level transmitters.

This "basic configuration + accessory expansion" design allows the CC-PAIH02 to be adjusted without hardware replacement, through simple field operations. This significantly reduces the difficulty of system design and field debugging, while also improving the module's reusability, adapting to the signal acquisition needs of different production lines and processes within the same factory.

Industry Adaptability: Empowering Industrial Process Control Across Multiple Fields

Based on its core advantages of high precision, high reliability, and high flexibility, the CC-PAIH02 is widely adaptable to industries with stringent process control requirements, such as chemical, petrochemical, power, pharmaceutical, and water treatment. It has become a core component in the signal acquisition (link/stage) of various industrial automation systems. Typical application scenarios are as follows:

• Chemical Industry: In the control of core equipment such as reactors and distillation columns, it acquires analog signals such as temperature, pressure, liquid level, and flow rate. Through the HART protocol, it obtains diagnostic information from intelligent transmitters, enabling real-time monitoring of process parameters and remote monitoring of equipment status. Simultaneously, its non-flammable field power supply design adapts to the explosion-proof requirements of chemical sites.
• Power Industry: In the unit control of thermal power plants and hydropower stations, it acquires signals such as boiler feedwater flow rate, drum water level, and flue gas oxygen content, with a 50ms response time. The high-speed scanning rate ensures the control system's rapid response to unit operating conditions, while redundant design enhances the power system's continuous operation capability.
• Petrochemical Industry: In oil and gas extraction and pipeline transportation, it collects signals such as pipeline pressure, tank level, and medium flow rate. Its strong anti-interference capability adapts to outdoor and long-distance signal transmission environments, and the line break detection function can promptly detect line faults, preventing safety accidents caused by signal interruptions.
• Pharmaceutical Industry: In the fermentation and purification processes of drug production, it collects high-precision parameters such as fermenter pH, dissolved oxygen concentration, and temperature. High hardware precision of ±0.075% ensures accurate control of process parameters, meeting the stringent requirements of the pharmaceutical industry.
• Water Treatment Industry: In tap water and sewage treatment systems, it collects signals such as influent turbidity, chemical dosing flow rate, and effluent COD. Flexible channel configuration capabilities adapt to different types of water quality sensors, enabling simultaneous acquisition and monitoring of multiple parameters.

In applications across various industries, the CC-PAIH02 not only performs the basic function of signal acquisition but also provides data and fault diagnosis support for the intelligent and unmanned operation of industrial systems through features such as HART communication, self-diagnosis, and disconnection detection, helping enterprises improve production efficiency and safety levels.

Conclusion

The CC-PAIH02 HART analog input module boasts core advantages of "high-precision acquisition, high-reliability operation, and highly flexible configuration." With its comprehensive functional design, stringent technical parameters, and rich industry adaptability, it has become an indispensable key component in industrial process control. Its deeply integrated HART communication protocol realizes the dual functions of analog signal acquisition and digital intelligent diagnosis, enabling signal transmission in industrial settings to move beyond simple parameter transmission and towards two-way interaction between equipment and the system. Optional redundancy, disconnection detection, and non-flammable power supply designs ensure stable system operation in harsh industrial environments from multiple dimensions. Flexible channel configuration capabilities allow the module to adapt to the signal acquisition needs of different industries and scenarios, significantly improving the design and debugging efficiency of industrial automation systems.
